【Product Description】
The pressure chamber adopts 304 stainless steel overall laser welding process, which is safe and leak-free. The transmitter has built-in digital circuits with strong resistance to radio frequency and electromagnetic interference and automatic temperature compensation. It has strong anti-interference ability, wide working range, and good long-term stability.
【Features】
◇ Efficient lightning protection, anti-radio frequency and electromagnetic interference protection.

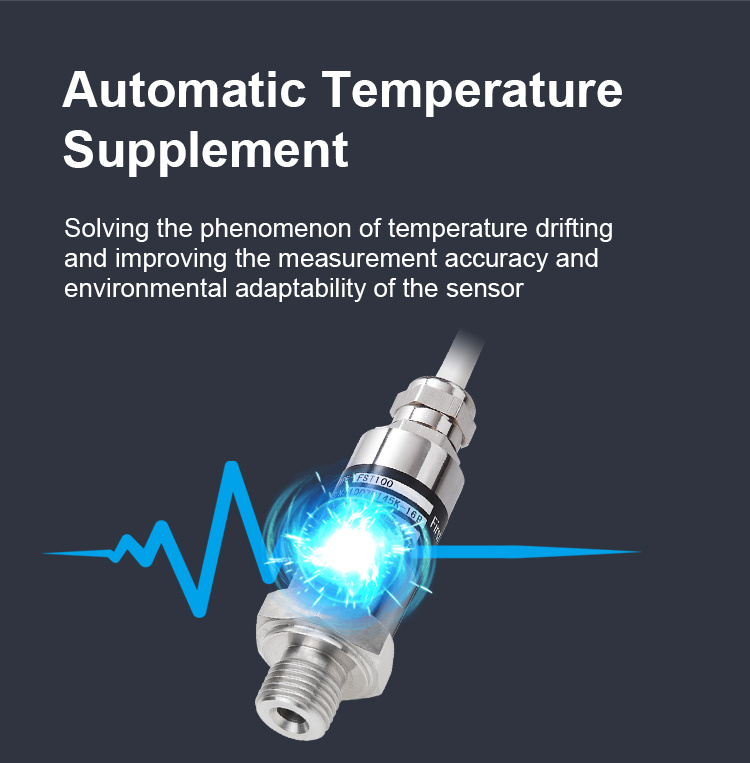

◇ Advanced temperature digital compensation function, wide working temperature range.
◇ High precision, high frequency response, good long-term stability.
◇ Optional RS232, RS485 output.
【Technical Parameters】
| Measuring medium | Water, gas, oil |
| Accuracy | Pressure: ±0.5 %FS Temperature: ±1%FS |
| Pressure range (bar) | 0~0.4...200 |
| Temperature compensation | -20~+85℃ |
| Measure temperature | -20~+85℃ |
| Long-term stability (1 year) | ±0.2 %FS |
| Signal output | Rs485 |
| Overload pressure | 200%FS |
| Signal Line Specifications | 4 Wire |
| Destruction pressure | 300%FS |
| Supply voltage | 3~5VDC or according to user requirements |
| Protection class | IP65、IP68 |
| Current consumption | ≤2.5mA (standby: ≤0.2mA) |
| Material | 304 stainless steel |
| Electrical connections | Direct Lead, Hersman, Watertight Connector (IP68) |
| Pressure port | M20X1.5, G1/4, NPT1/4, (others can be customized on request) |

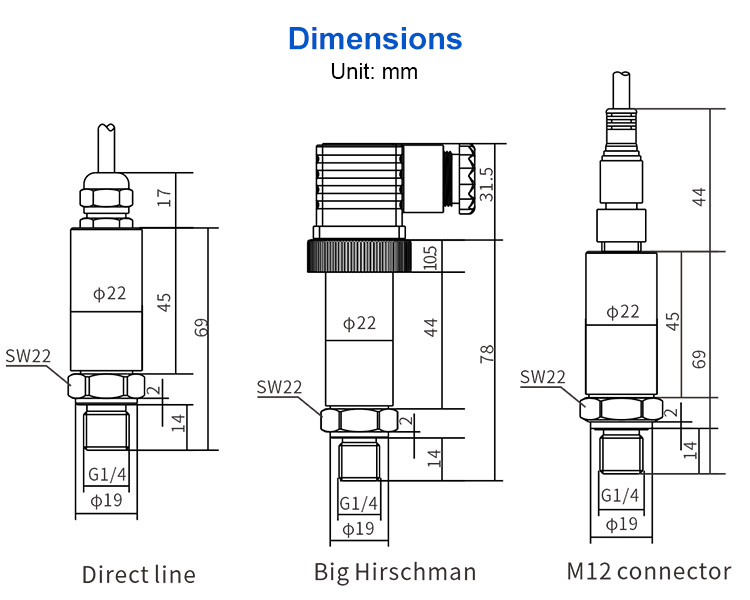

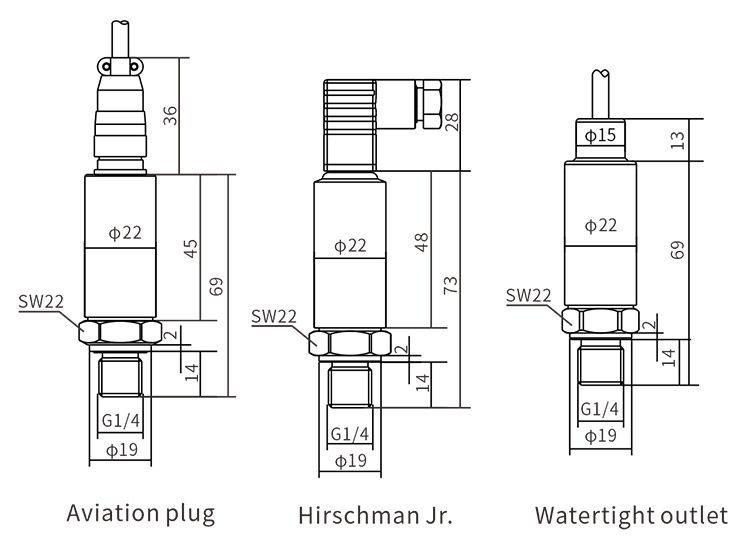

【External structure】
【Detailed description】
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor
FST100-1007 Low Power Consumption Temperature And Pressure Integrated Transmitter
【Scope of application】
● Industrial Process Detection and Control
● Pumping Stations and Water Treatment Systems
● Automated inspection system
● Chemical, Hydraulic and Pneumatic Control Systems
