Product model: FST100-UV-A
Product features:
Using imported integrated ultraviolet sensor chip, the measurement data can be transmitted through RS485, widely used in environmental monitoring, meteorological monitoring, agriculture, forestry and other occasions that need to measure ultraviolet rays.
FST100-UV-A UV Sensor using imported integrated ultraviolet sensor chip, the measurement data can be transmitted through RS485, widely used in environmental monitoring, meteorological monitoring, agriculture, forestry and other occasions that need to measure ultraviolet rays.

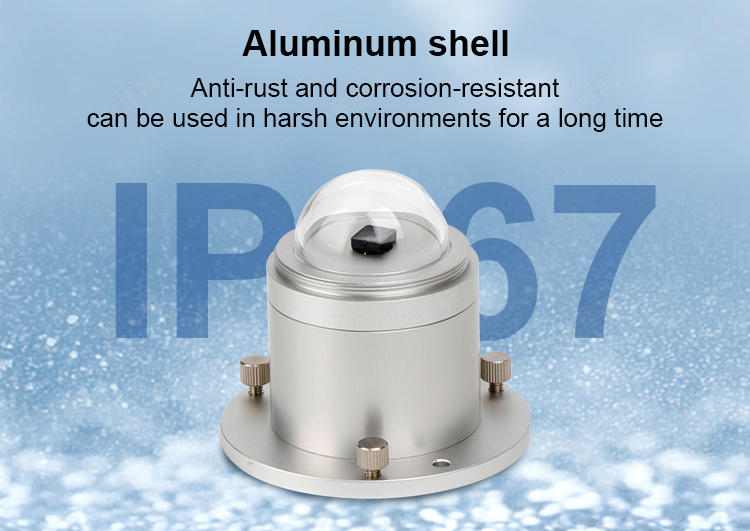

| Shell | Protection performance IP67 |
| Powered by | 10-30V DC |
| UV intensity range | 0-15mW•cm-2 |
| Resolution | 0.01mW•cm-2 |
| Precision | ±10%FS |

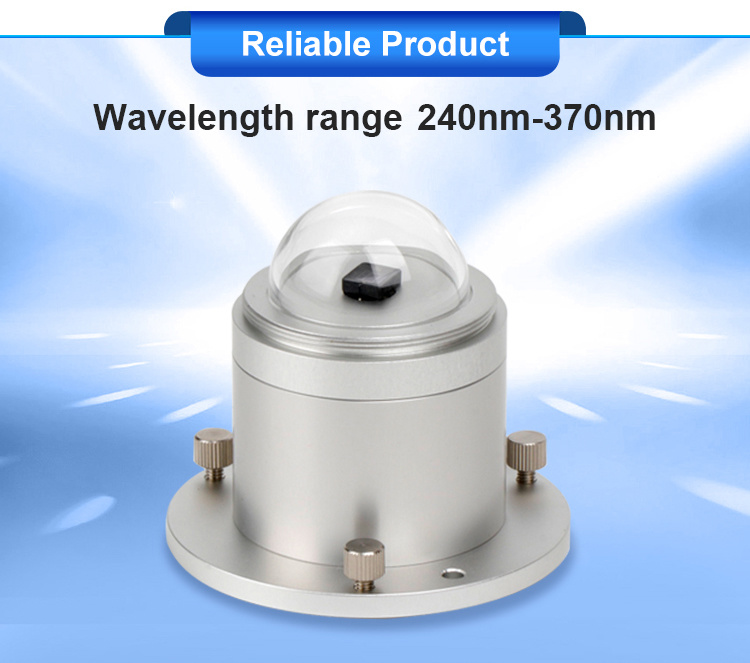

| Wavelength range | 240nm-370nm |
| Output signal | RS485、4-20mA、0-5V |
| Linearity | ±2% |
| Annual stability | ±3% |
| Operating temperature | -25°C-60°C |
| Response time | ≤1s |
【Detailed description】
