【Product Description】
The FST200-204 ultrasonic wind speed and direction sensor uses the ultrasonic time difference method to measure the wind speed and direction. ultrasonic wind speed and direction sensor has high measurement accuracy, reliable performance, convenient portability, no moving parts, and no maintenance and on-site calibration. It is a more advanced instrument for measuring wind speed and direction.
【Technical Parameters】
| Wind Speed Parameter | |
| Measuring range | 0~60 m/s |
| Starting wind speed | 0.1m/s |
| Response time | 1s |
| Resolution 0.1m/s | 0.1m/s |
| Accuracy | ±0.3m/s or ±3% (0-30m/s, whichever is greater) ±5% (30-60m/s) |
| Wind direction Parameter | |
| Measuring range | 0-360° |
| Starting wind speed | 0.1m/s |
| Accuracy | ±2° |
| Resolution | 0.1° |
| Basic parameters | |
| Digital signal | RS485 4-20mA 0-5V |
| Baud rate | 9600, 19200, 38400, etc. |
| Power supply | 9-24VDC |
| Average current | <35mA (12VDC) |
| Operating temperature range | -20~60°C |
| Operating humidity range | 0~95%RH |
| IP Grade | IP66 |

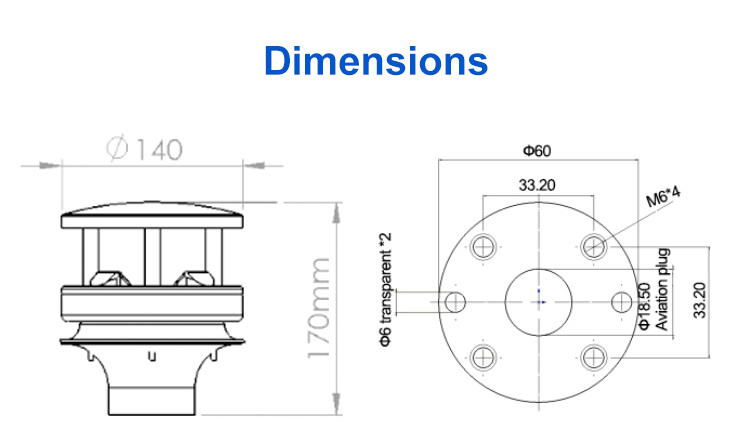

【External structure】
◇Original stainless steel integrated appearance design, beautiful appearance, using advanced sensing technology for real-time measurement, no start-up wind speed limit, no angle limit, and obtain wind speed and wind direction data at the same time.

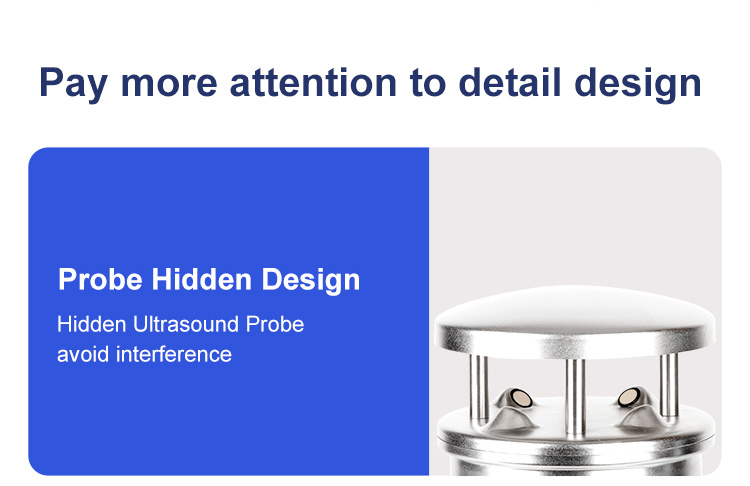

◇Multiple ultrasonic probes send and receive ultrasonic signals in real time in the measurement space to ensure real-time and efficient parameters.
◇ High measurement accuracy, wide range, good stability, low power consumption, strong antiinterference ability, can work around the clock, not affected by weather changes, no calibration required.
◇ Precise craftsmanship, all-solid design, stronger structure, high strength, weather resistance, corrosion resistance and water resistance, and long service life.
◇Professional integrated installation method, small size, easy to carry and install.
◇ It can be powered by matching solar panels and batteries, remote wireless transmission of measurement information, and long-distance rear detection. It can be widely used in unattended remote areas such as mountains and islands with harsh environments
【Detailed description】
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor
FST200-204 Ultrasonic Wind Speed and Direction Sensor
Product model: FST200-204
♦ Non-contact magnetic sensor measuring principle, high accuracy and reliability;
♦ strong wind resistance, strong corrosion resistance;
♦ Wide wind speed measurement range, with low starting wind speed;
♦ No automatic heating and defrosting function
♦ Sensor circuit protection with fault-tolerant capability;
♦ Meet CE EMC standard, multi-levels for anti-lightning anti-surge design
