【Product Description】
FST800-217 Pressure and Temperature Sensor adopted by our company are made of all stainless steel structure, the pressure detection sensitive components have been automatically tested by computer. And the laser adjustment process has carried out zero point and temperature performance compensation in a wide temperature range, which has strengthened the performance of the transmitter in the industrial environment. long-term stability.
【Features】

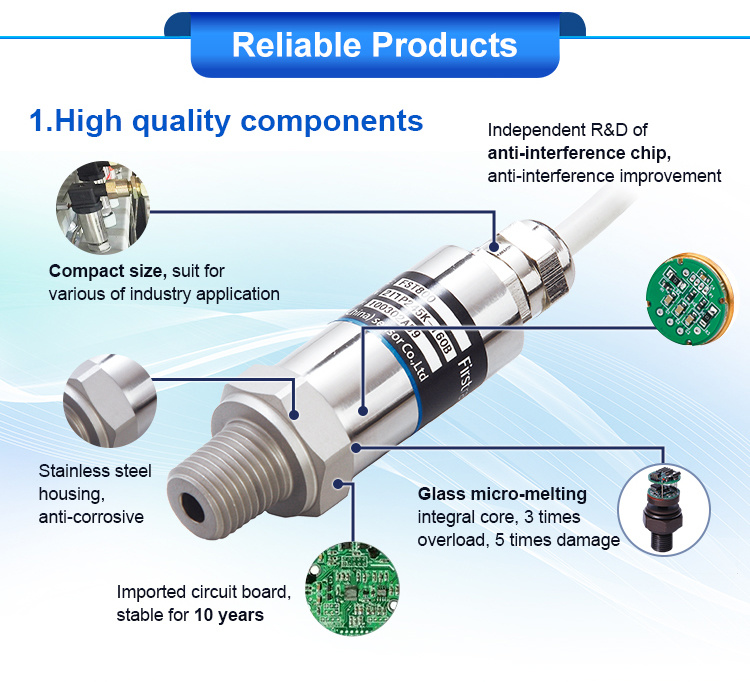

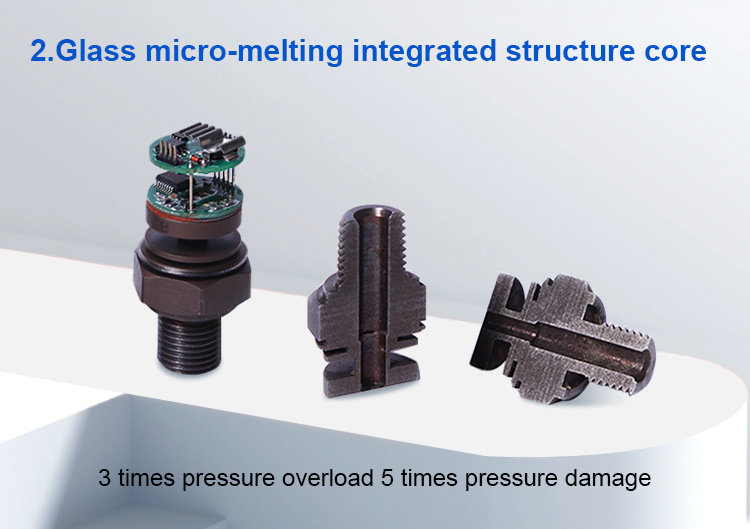

● Advanced glass micro-melting process, elastomer overall structure design, no leakage hidden danger
● The measurement of pressure and temperature can be done by consuming the power of one sensor
● Built-in temperature/pressure sensitive components, the two outputs do not affect each other

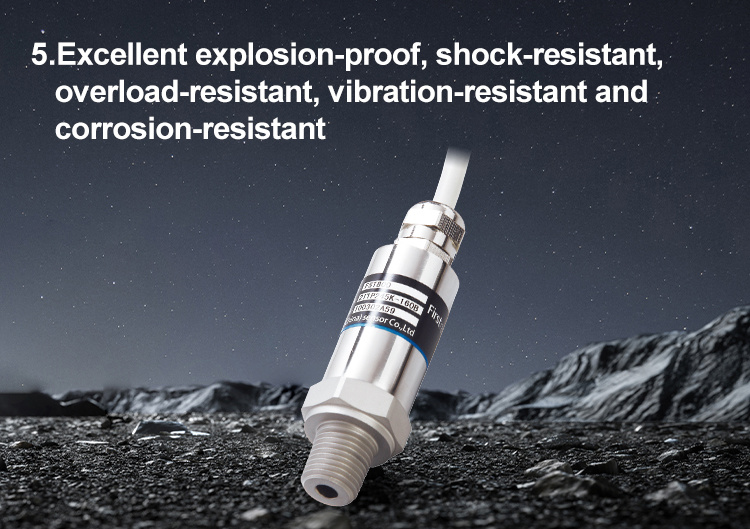

● Excellent shock, overload, vibration and corrosion resistance

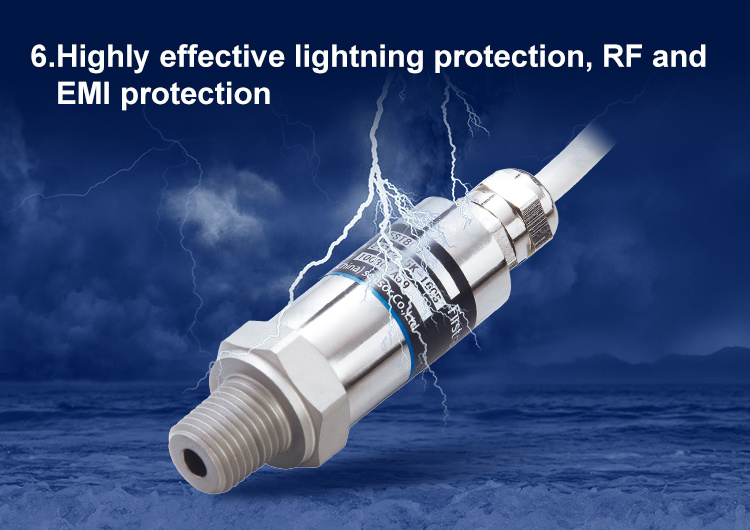

● High-efficiency lightning protection, strong anti-RF and electromagnetic interference protection

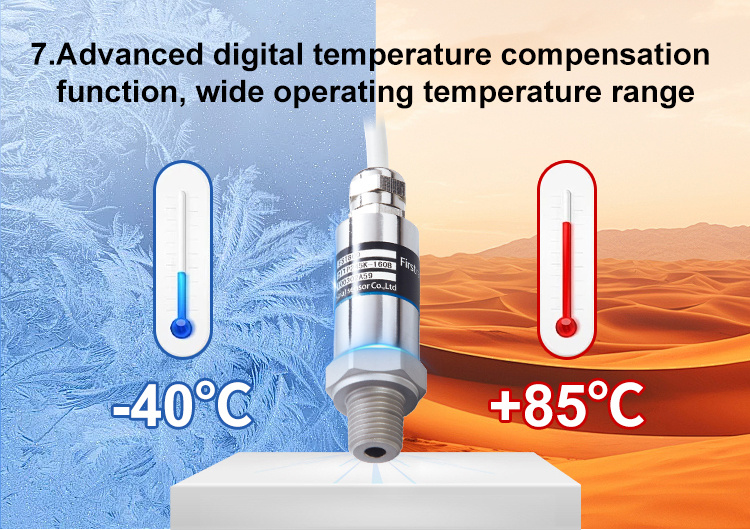

● Advanced temperature digital compensation function, wide operating temperature range
【Scope of application】
● Industrial Process Detection and Control
● Hydraulic and Pneumatic Control Systems
● Automated inspection system
● Pumping Stations and Water Treatment Systems
【Technical Parameters】
| Pressure type | Gauge pressure, absolute pressure, sealing pressure |
| Pressure range (bar) | 6 10 16 25 40 60 100 160 200 250 300 400 500 600 |
| Signal output | Temperature signal: Pt100 or Pt1000(2Wire) 4~20mA Pressure signal: 4~20mA |
| Signal Line Specifications | 2Wire |
| Operating temperature | -40~+125℃ |
| Supply voltage | 9~30VDC |
| Storage temperature | -40~+125℃ |
| Pressure accuracy | ±0.3%FS、±0.5%FS |
| Overload pressure | 300%FS |
| Temperature accuracy | ±0.5%FS |
| Destruction pressure | 500%FS |
| Zero temperature drift | ±0.02%FS/℃ |
| Mechanical vibration | ±20g |
| Sensitivity temperature drift | ±0.02%FS/℃ |
| Shock (11ms) | 100g |
| Long-term stability (1 year) | ±0.1%FS |
| Protection class | Ip65 |
| Response frequency (-3dB) | 3.2kHZ |
| Temperature range | -30~+125℃ |
| Temperature compensation | -20~+85℃ |
| Electromagnetic Compatibility (EMC) | EN61000-6 |
| Material | 17-4PH |
| Certification Program | CE、RoHS |
| Electrical connections | Direct lead, M12 connector |
| Pressure port | M20×1.5, G1/4, NPT1/4 (others can be customized on request) |

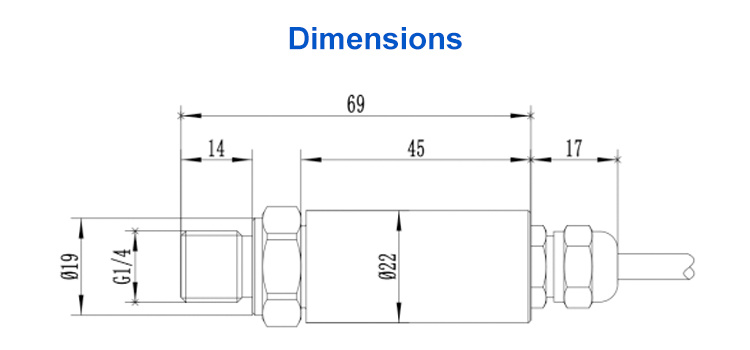

【External structure】
【Detailed description】
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor
FST800-217 Pressure and Temperature Sensor
Product model: FST800-217
Product features: Advanced glass micro-melting technology, elastomer overall structure design, no
leakage hazard; pressure and temperature measurement can be completed with the power of one
sensor; built-in temperature/pressure sensitive components, two outputs do not affect each other;
excellent Anti-shock, anti-overload, anti-vibration, corrosion-resistant; high-efficiency anti-lightning,
strong anti-radio frequency.
