【Product description】
Electromagnetic flowmeters are suitable for measuring the volume flow of conductive liquids and slurries in closed pipelines. They are mainly used for measuring clean water, sewage, power production and distribution, chemical and industrial pharmacy, food industry and other fields.
【Product description】
● Cold and heat metering function
● Dual frequency excitation, good zero point stability
● Self-diagnosis function, intelligent work
● Built-in reference electrode, no grounding ring required
● Support MODBUS protocol or HART protocol
● Excellent low flow measurement accuracy, can measure forward/reverse flow
【Scope of application】
● Clean water, sewage
● Mud, mineral pulp, paper pulp
● Food industry
● Chemical and industrial pharmaceuticals and various acid-base solutions
【Technical Parameters】
| Measuring range | Maximum flow rate 15m/s |
| Temperature measurement accuracy | ±0.2% of measured value+0.3m/S |
| Caliber | Nominal diameter 10mm~3000 mm |
| Nominal pressure | 0.6MPa, 1.0MPa, 1.6MPa, 4.0MPa or others |
| Output signal | 4~20mA / pulse |
| Communication | Rs485, support MODBUS communication protocol (non-standard), support HART communication protocol (optional) |
| Protection level | IP65 for integrated type, IP67 or IP68 for split type (optional) |
| Power supply | AE86~220V or DC24V (optional) |
| Display | Up to 8-digit LCD display, real-time clock displays various flow data, optional m 3 or L display unit |
| CE certification | According to LVD 2006/95/EC, and EMC 2004/108/EC |
| EN 61326-1: 2006 radiation standard (declared to comply with BS EN50081-1) | |
| EN 61326-1: 2006 anti-interference standard (declared compliance with BS EN50082-1) | |
| EN 61010-1: 2001, Safety-Part 1: General requirements | |
| Electrode material | Stainless steel 316L, others can be customized according to requirements (for example: Hc, Hb, Ti, Ta, Pt) |
| Lining material | Ne, FEP, PTFE or polyurethane optional |
| Shell material | Carbon steel, can be customized according to customer requirements (for example: stainless steel SS304) |
| Medium temperature | -20~80℃, up to 180℃ according to requirements (Note: limited by the temperature characteristics of the lining material) |
| Ambient temperature | -20~60℃ |
| Environment humidity | <85% R.h (non-condensing) |

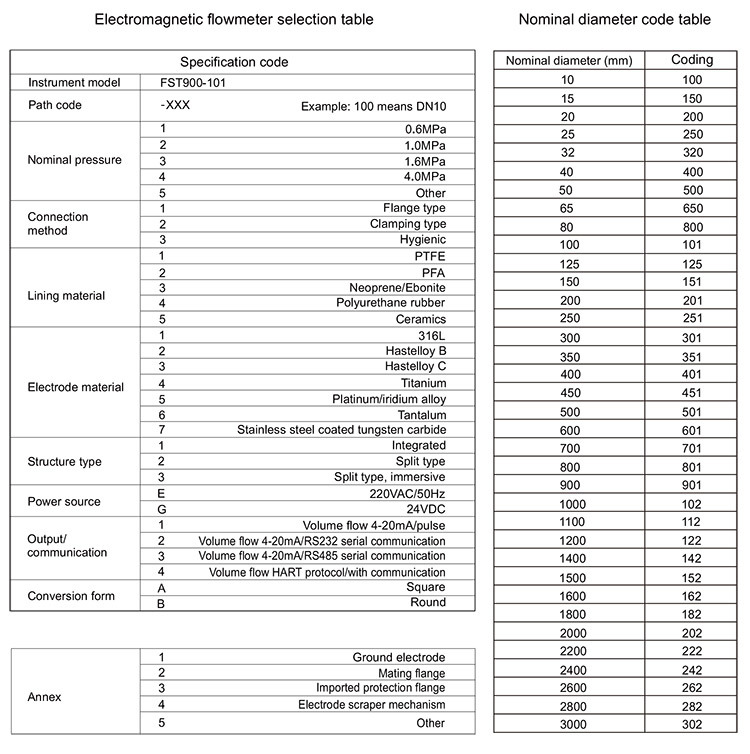

【Electromagnetic flowmeter selection table】
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor
FST900-101 Intelligent electromagnetic flowmeter
