【Product Description】
【Features】
【Technical Parameters】
Measuring range and resolution
| 0～100.00mg/L 0.01mg/L |
0～1000.0mg/L 0.1mg/L | |
Accuracy | ±10% or ±1mg/L, ±0.5℃ |
| Operating temperature | 0～40℃ |
Work pressure | <0.1MPa |
| PH range of medium | 4～10PH |
Temperature compensation | Automatic temperature compensation (Pt1000) |
| Powered by | 12～24VDC |
Signal output | RS-485(Modbus/RTU) |
Shell material | ABS, PVC, POM |
| Installation method | 3/4NPT pipe thread, immersion installation |
Cable length | 5 meters, other lengths can be customized |
| Calibration method | Two point calibration |
Power consumption | 0.2W@12V |
| Protection level | IP68 |
【Reliable Product】

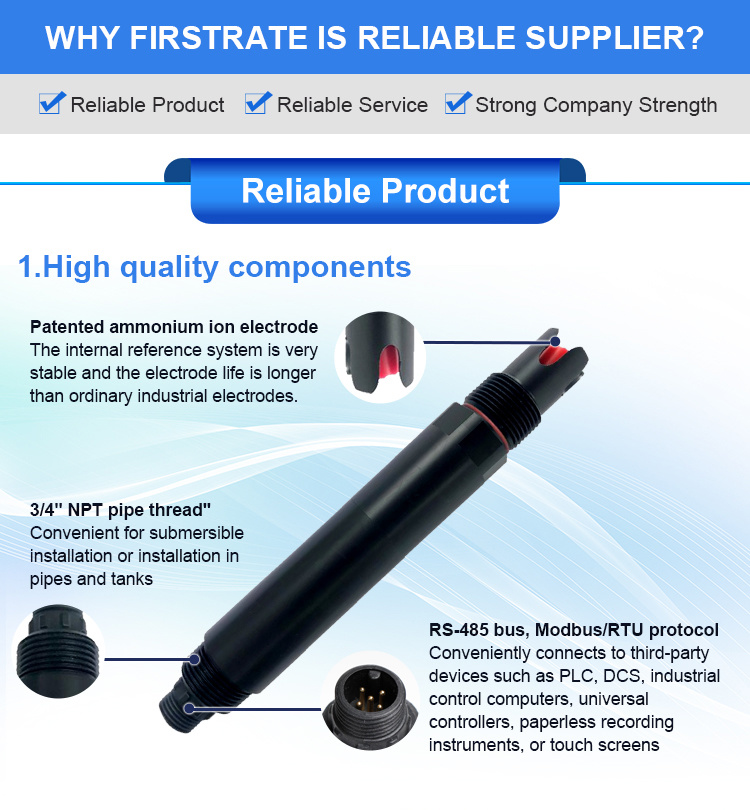

【1.High quality components】
【2.Patented ammonium ion electrodes】

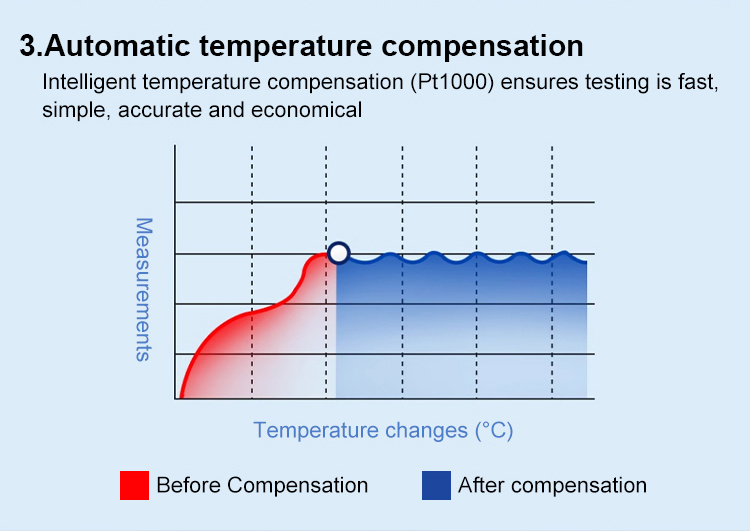

【3.Automatic temperature compensation】
【4.lP68 protection level】

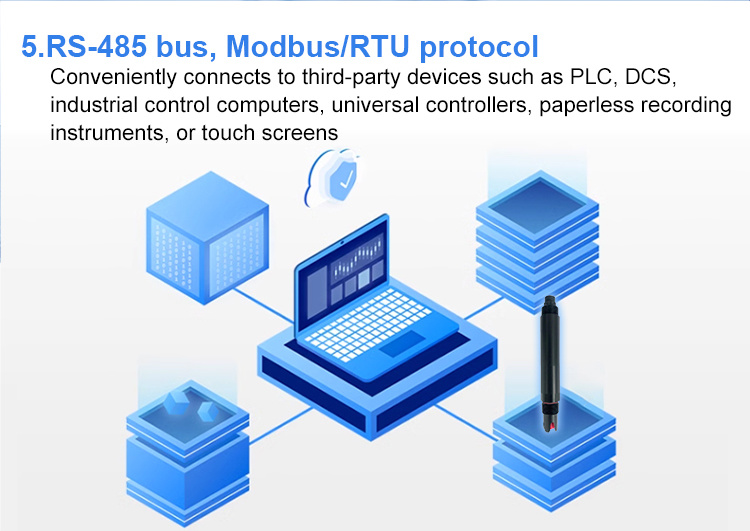

【5.RS-485 bus, Modbus/RTU protocol】
【6.Application scenario】
【7.Dimensions】
【Reliable Service】
FST100-AT101A Water Ammonium Nitrogen Sensor
Product model: FST100-AT101A
Features：
● Signal output: RS-485 bus, Modbus-RTU protocol
● Patented ammonium ion electrode, the internal reference solution seeps out of the microporous salt bridge very slowly under a pressure of at least 100KPa (1Bar). Such a reference system is very stable, and the electrode life is longer than that of ordinary industrial electrodes;
● Easy to install: 3/4 NPT pipe thread, easy to install in submerged or in pipes and tanks;
● IP68 protection level.
