【Product Overview】
Laser turbidity sensors measure the number and size of suspended particles in water and are used to assess water clarity and particulate contamination. They play a key role in drinking water treatment, environmental monitoring, and river flow measurement.
【Product Features】
● Flow-through installation
● POM housing material
● Laser (optical) measurement principle
● Digital sensor, RS-485 interface, Modbus/RTU protocol
【Application Scope】
Laser turbidity sensors are widely used in water quality monitoring institutions such as water plants, sewage treatment plants, food industry, aquaculture, and environmental monitoring stations.
【Technical Parameters】
Measuring range | 0~20NTU (customizable) |
Accuracy | >1NTU 4% reading or ≤1NTU ±0.04NTU |
Output | 4~20mA and RS485 |
Power supply | 9-30VDC (12VDC recommended) |
Resolution | 0.0001NTU |
Operating temperature | 0~60℃ |
Case material | ABS |
Installation method | Flow-through |
Signal line length | 5m (customizable) |
Protection level | IP68 |
Operating pressure | ＜0.1MPa |
Calibration method | Multi-point calibration |
Note: The product technical indicators shall be subject to the order, and the actual wiring method shall be subject to the actual product

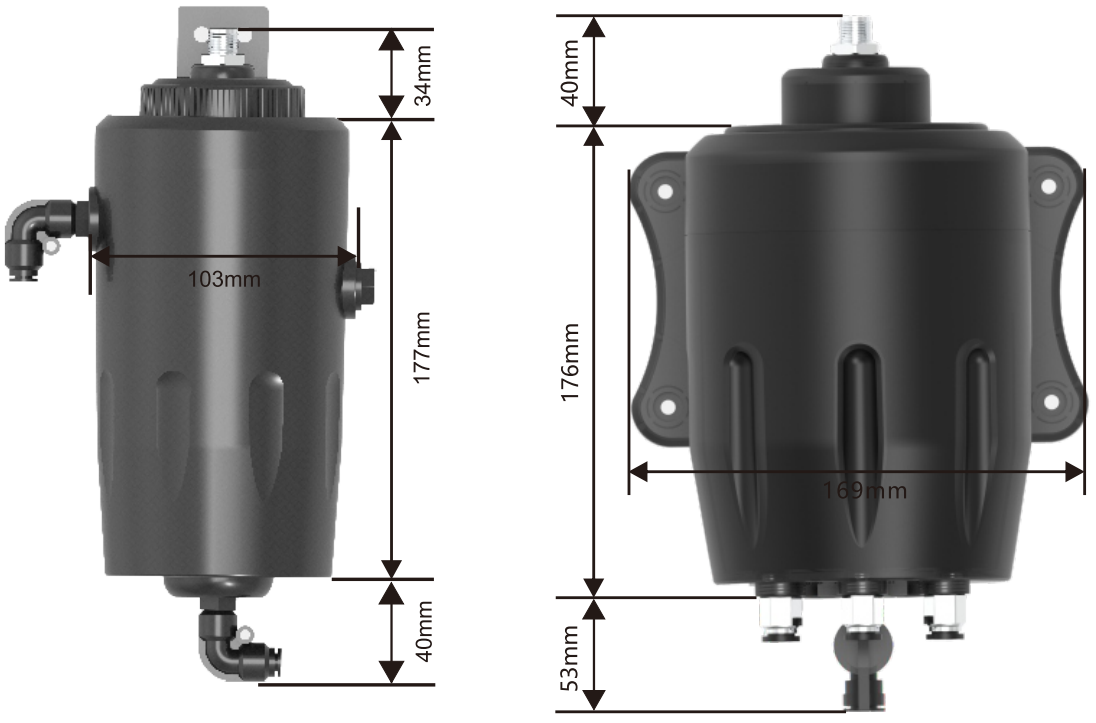

Appearance drawing
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor

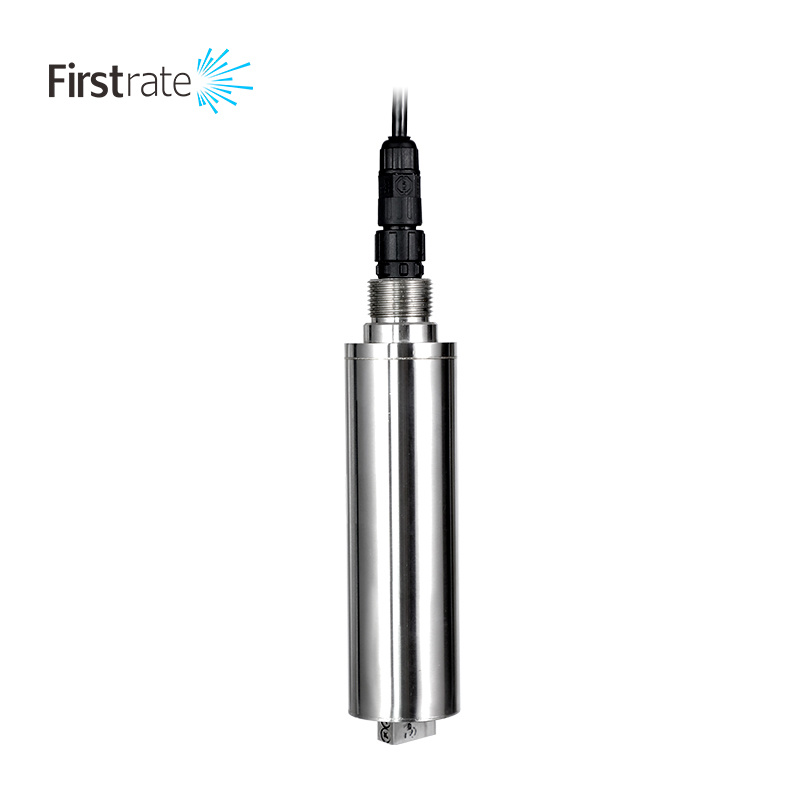

FST100-ZD101 Smart Turbidity Sensor
【Product Features】
● Flow-through installation
● POM housing material
● Laser (optical) measurement principle
● Digital sensor, RS-485 interface, Modbus/RTU protocol
【Application Scope】
Laser turbidity sensors are widely used in water quality monitoring institutions such as water plants, sewage treatment plants, food industry, aquaculture, and environmental monitoring stations.
