【Product Description】
【Features】

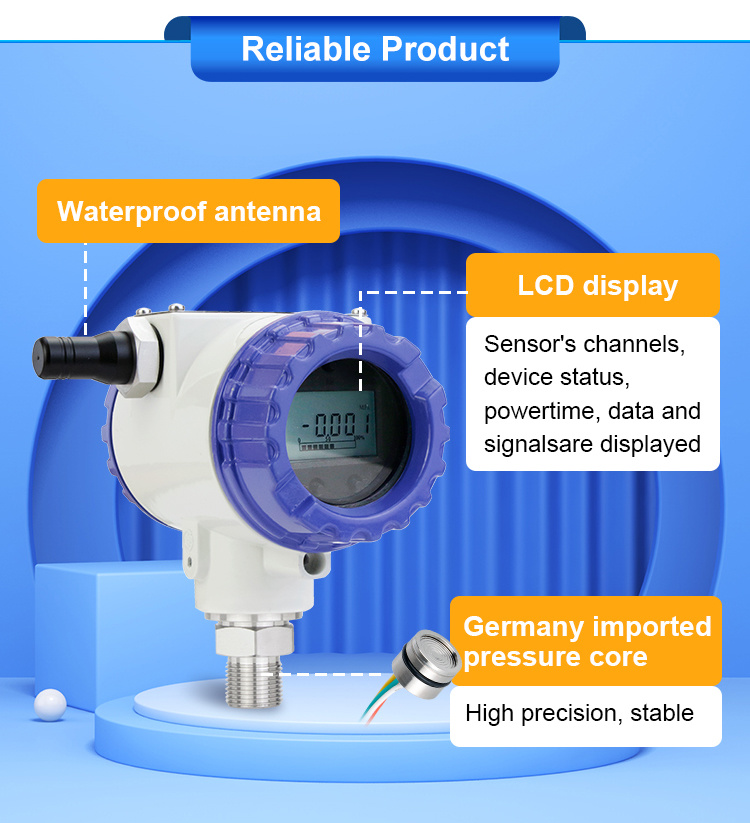

◇ Low power consumption design, on-site segment LCD display
◇ Moisture-proof, anti-condensation, anti-leakage, protection grade IP65
◇ Excellent impact resistance, overload resistance, vibration resistance and corrosion resistance;
◇Efficient lightning protection, strong resistance to radio frequency and electromagnetic interference protection
◇ Advanced temperature digital compensation function, using digital compensation and nonlinear correction technology
◇ -10℃～80℃ digital wide temperature compensation, wide working temperature range
◇ High precision, high frequency response, good long-term stability
◇ On-site pressure data can be wirelessly transmitted to the cloud platform, which facilitates uploading of remote monitoring data to the cloud platform
【Technical Parameters】
| Measuring medium | water, Gas, Oil |
| Measurement range | -100kPa~0~20kPa...60MPa |
| Power supply voltage | 3.6V battery power supply 12~30VDC external power supply |
| Accuracy | ±0.5 %FS ±1%FS |
| Temperature compensation | -10~+70℃ |
| Working temperature | -20~+60℃ |
| Long-term stability (1 year) | ≤0.2%FS |
| Overload pressure | 200%FS |
| Working frequency band | 470MHz/868MHz |
| Sampling frequency | 10s~12h can be set (default 10s) |
| Sending frequency | 1min~1440min can be set (default 2min) |

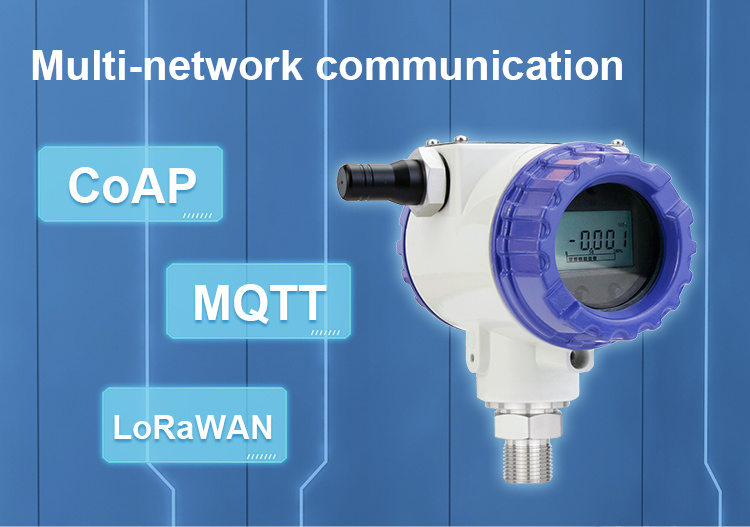

| Communication Protocol | Private Protocol/LoRaWAN (Class A, OTAA Mode Activation) |
| Protection grade | IP65 |
| Housing Material | Aluminum Die Casting, 304 stainless steel |
| Pressure interface | M20x1.5, G1/4 or other threads |
| Power consumption current | Sleep current: <5uA, sampling current: <5mA |
| Transmit current: <140mA, receiving current: <20mA | |
| Battery capacity | 12000mAh |

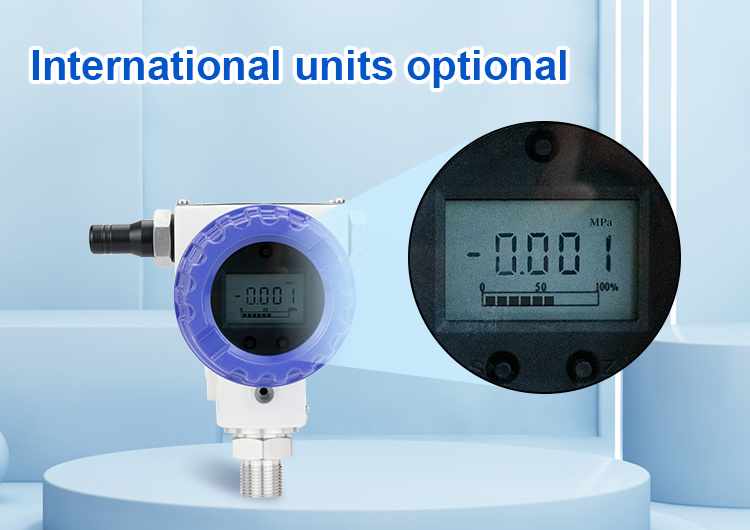

| Display mode | 6-segment LCD display |
| Storage environment | Temperature -40~+80°C, humidity: 0~95%RH |

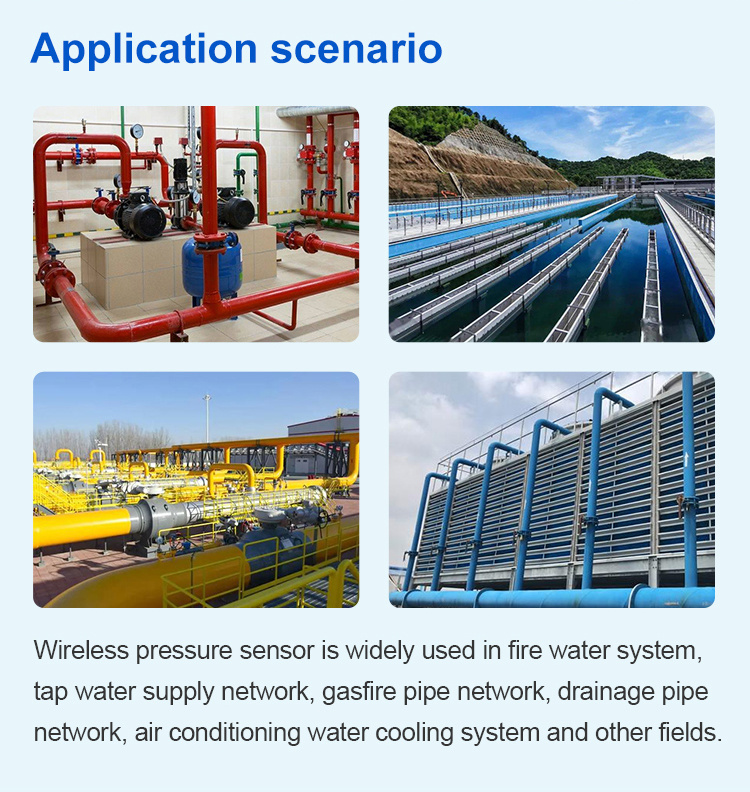

【Scope of application】
◇ Industrial process liquid level measurement and control
◇ Water conservancy and hydropower, fire monitoring and control
◇ Building automation, constant pressure water supply
◇ Urban water supply and sewage treatment
◇ Other automation system liquid level
【Detailed description】
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor

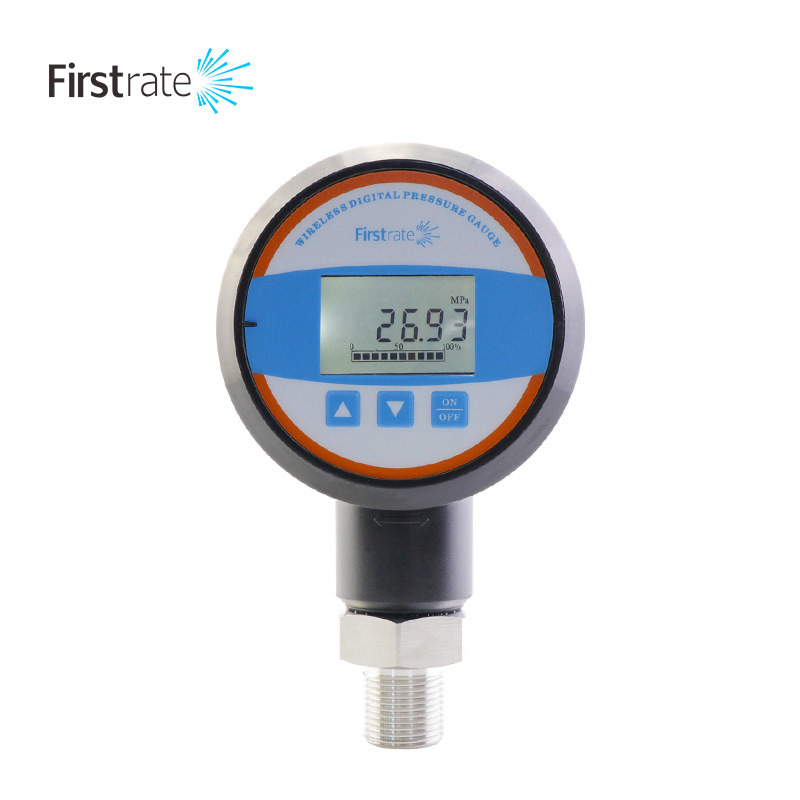

FST100-1101 Wireless Pressure Sensor
Product features:
● Imported pressure-sensitive core
● 4G/LoRaWAN/NB-IoT
● Unattended of oil, gas,water and fire pipelines

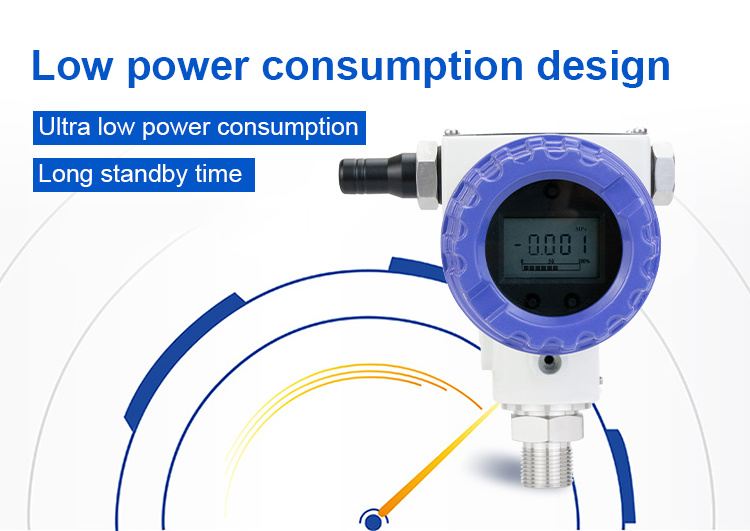

● Low power consumption design, powered by lithium battery
Applications:
● Industrial process and control ● Automated detection
● Hydraulic and full-motion control ● Water treatment system
● Unattended and dangerous areas ● Pumping stations
