Application
This product can be used in various industries such as metallurgy, petroleum, chemical industry, building materials, papermaking, electric power, food, pharmaceuticals, and industrial water treatment.
Product Center
Application
This product can be used in various industries such as metallurgy, petroleum, chemical industry, building materials, papermaking, electric power, food, pharmaceuticals, and industrial water treatment.
【Product Features】
This product integrates multiple functions such as data measurement, display, processing, calculation, alarm, and recording in various industrial occasions. It has 36 analog signal input channels, 8 relay alarm outputs, and 150mA power distribution output (can be connected to 6-way two-wire transmitter, or 2-way four-wire transmitter), 2-way RS485 communication interface, and has a USB data dump interface.
【Technical Parameters】

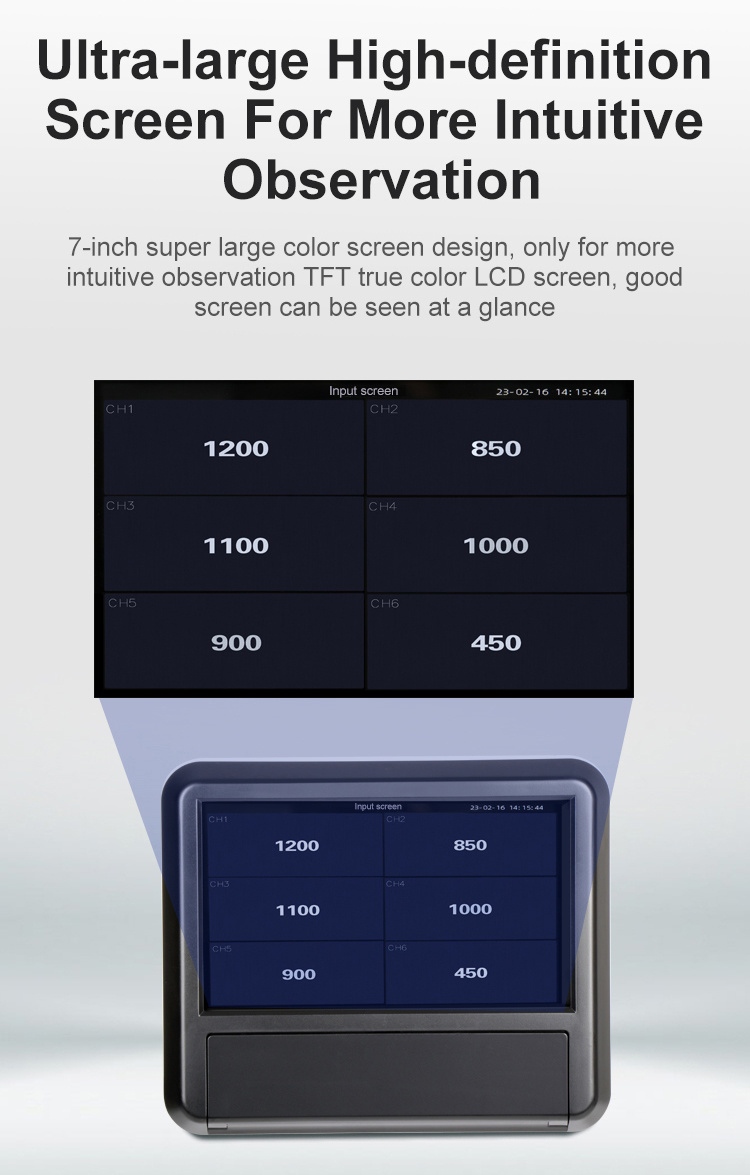

Display method | 7 inch color LCD screen |
Measurement accuracy | ±0.25%FS |
External power supply | DC24V |
Power supply | 220V AC,24V DC |

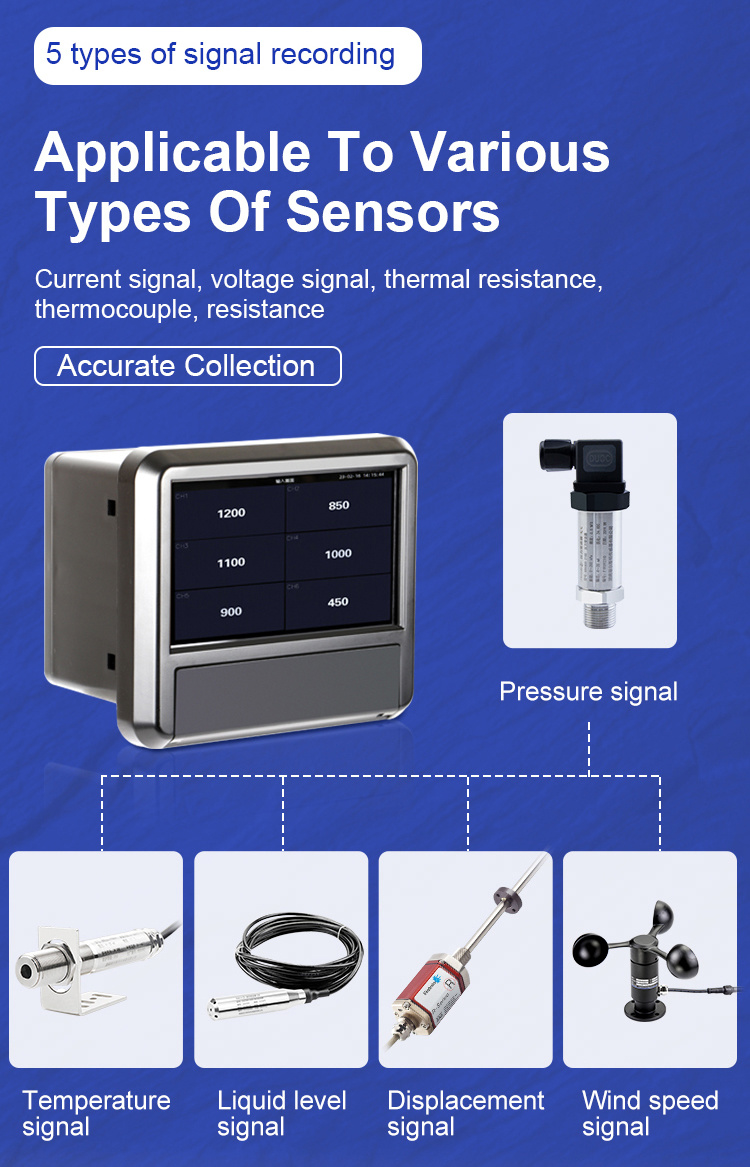

Input signal | Analog universal input |
Operating temperature | -10~50℃ |
Alarm output | 1-8 relays are optional |
Relative humidity | 0~85%RH,no condensation |
Communication function | 1-2 way RS485, USB data export |
Dimensions | 195X165X127mm |
Hole size | 138X138mm |
Input channel | 3,6,9,18,27,36 |
【Product Detail Show】
【Company Information】
【Certifications】
