FST700-1000 Submersible Liquid Level Sensor
Product features: Protection class IP68; excellent impact resistance, anti-overload, anti-vibration,
corrosion resistance; high precision, high frequency response, good long-term stability; suitable for
measuring liquid media with good fluidity.
Applications:Industrial process liquid level measurement and control, water conservancy and hydropower monitoring and control, building automation, constant pressure water supply, urban water supply and
sewage treatment, liquid level measurement and control of other automation systems.
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
FST700-1000
Quantity
-
+
Stock:
0
Introduction
【Product Description】
FST700-1000 Submersible Liquid Level Sensor is professionally designed for liquid level measurement and control in industrial processes, water conservancy and hydropower monitoring and control, building automation, constant pressure water supply, urban water supply and sewage treatment, and other automation system liquid level measurement and control.
【Features】
● Protection grade IP68
● Excellent impact resistance, overload resistance, vibration resistance and corrosion resistance
● High precision, high frequency response, good long-term stability
● Suitable for measuring liquid media with good fluidity

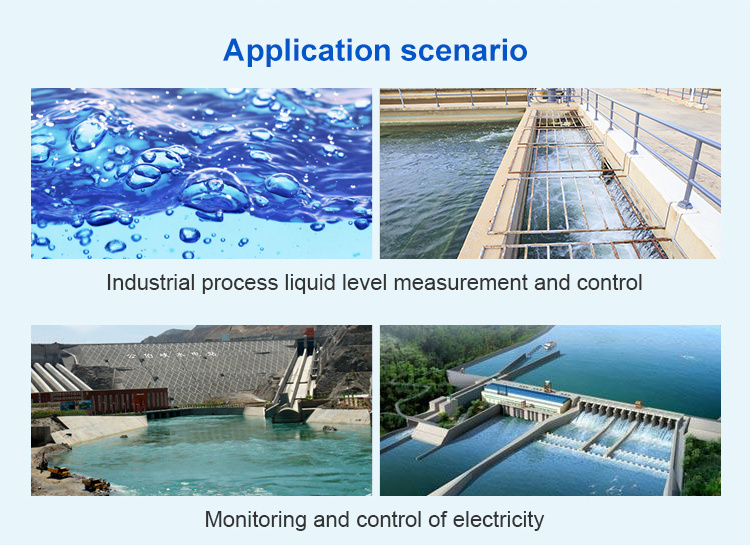

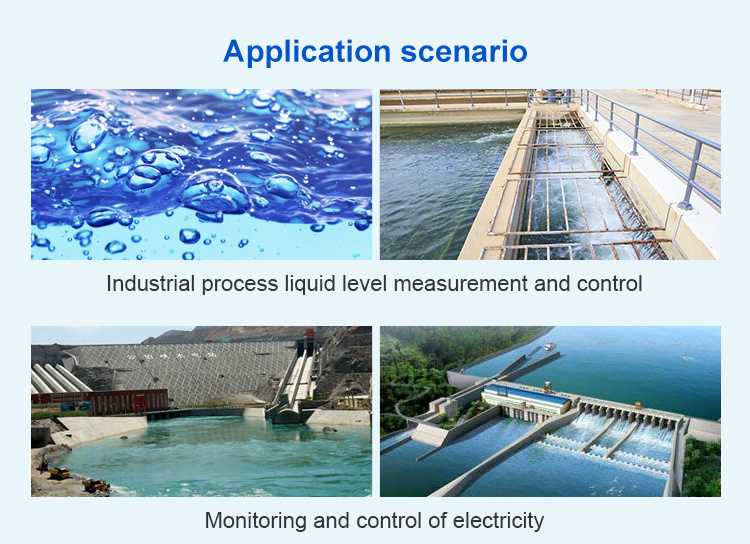

【Scope of application】
● Industrial process level measurement and control
● Water conservancy and hydropower monitoring and control

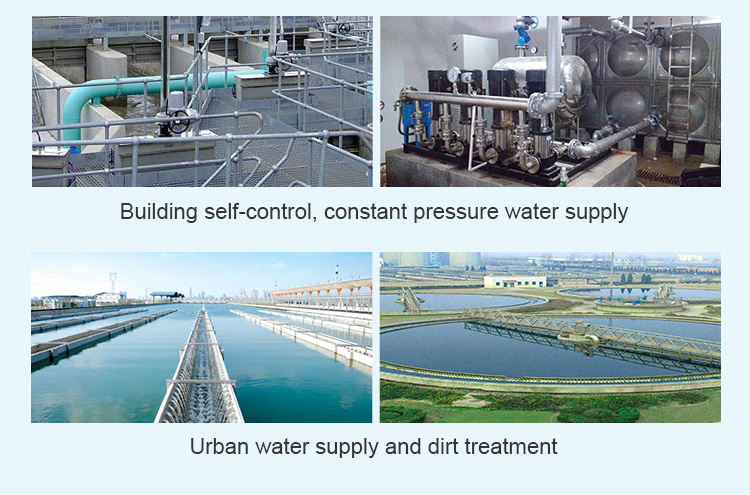

● Building automation, constant pressure water supply
● Urban water supply and sewage treatment
● Level measurement and control of other automation systems
【Technical Parameters】
| Type of pressure | Gauge pressure, sealing pressure |
| Long-term stability (1 year) | ±0.5 %FS |
| Signal output | 4~20mA |
| Medium temperature | -10℃~+85℃ (cannot freeze) |
| Signal line specifications | 2 Wire |
| Storage temperature | -20℃~+100℃ |
| Supply voltage | 9~30VDC |
| Allow overload | 200%FS |
| Precision | ±0.5%FS ±1%FS |
| Media compatibility | Various media compatible with 304 |
| Zero temperature drift | ±0.02%FS/℃ |
| Protection level | IP68 |
| Sensitivity temperature drift | ±0.02%FS/℃ |
| Probe diameter | Φ28.0 |
| Electrical connections | Direct lead |
| Installation method | Direct wire out (standard wire is configured according to the measuring range length), optional spouse, moisture-proof device |
| Pressure range (mH20) | 1 2 3 5 10 20 30 (other ranges can be customized) |
【External structure】
【Detailed description】
【1. Features】
【2. Product details】

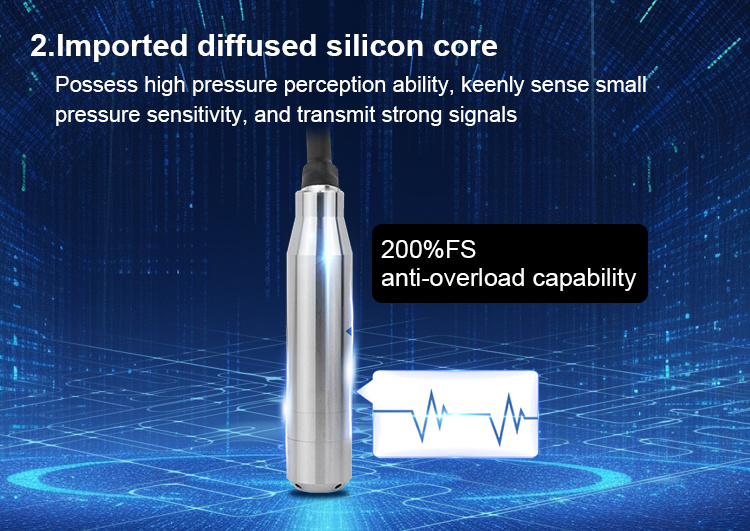

【3. Imported diffused silicon core】

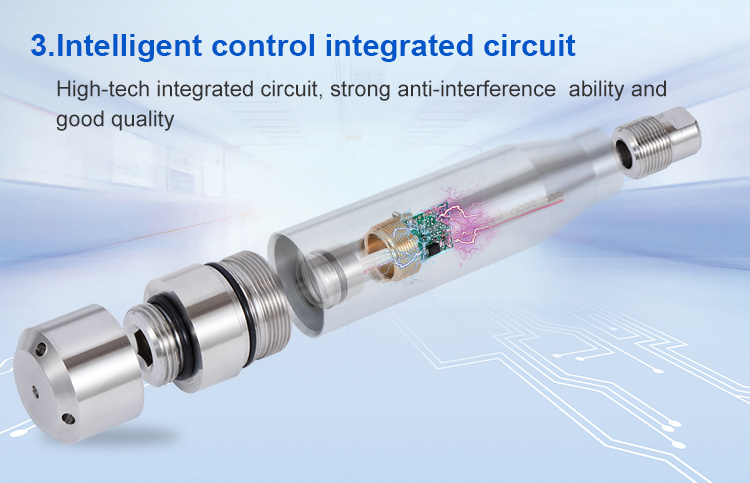

【4. Intelligent control integrated circuit】

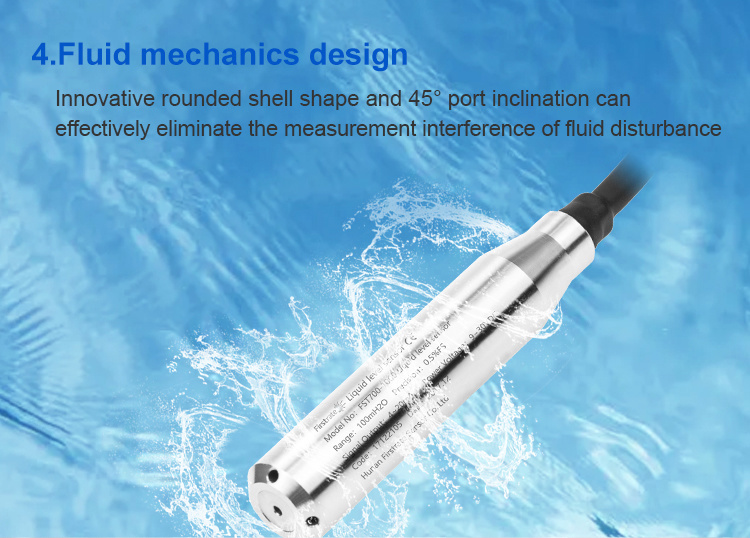

【5. Fluid mechanics design】
【Company strength】
