FST700-204 Capacitive Liquid Level Sensor
+
  • FST700-204 Capacitive Liquid Level Sensor

Product Description

FST700-204 capacitive liquid level sensor is suitable for continuously detecting the liquid level of various non-conductive liquids such as diesel oil, kerosene, gasoline, hydraulic oil, biodiesel, etc. Special liquid (oil) level measurement sensor tailored for accurate measurement of oil level.

【Features】

● High accuracy, good stability

● Easy to install

● Optimize the sensor output curve to simplify the acquisition processing difficulty

● Reverse polarity protection wiring design

【Application range】

● Industrial process liquid level measurement and control
● Automobile fuel tank, tank truck, oil depot oil level measurement
● Other non-conductive liquid measurement and control

【Technical Parameters】

 Testing medium

 Diesel, kerosene, gasoline, hydraulic oil, biodiesel, etc.,

 not subject to the measurement medium

 Testing range 300  400  500  600  700   800  900  1000mm
 Dead zone range 5mm dead zone at the the bottom
 Signal output 4~20mA
 Signal cable specification 3 Wire
 Power supply 12~30VDC
 Accuracy ±0.5 %FS    ±1 %FS
 Working temperature -20~+85℃
 Storage temperature -40~105℃
 Mechanical vibration ±20g
 Shock(11ms) 100g
 IP grade(electrical cabin) IP65
 Materials Probe Φ16  aluminium alloy
 Installation way Process connection installation (G1/2,others customized)
 Electrical connection Direct lead, standard cable length 1m

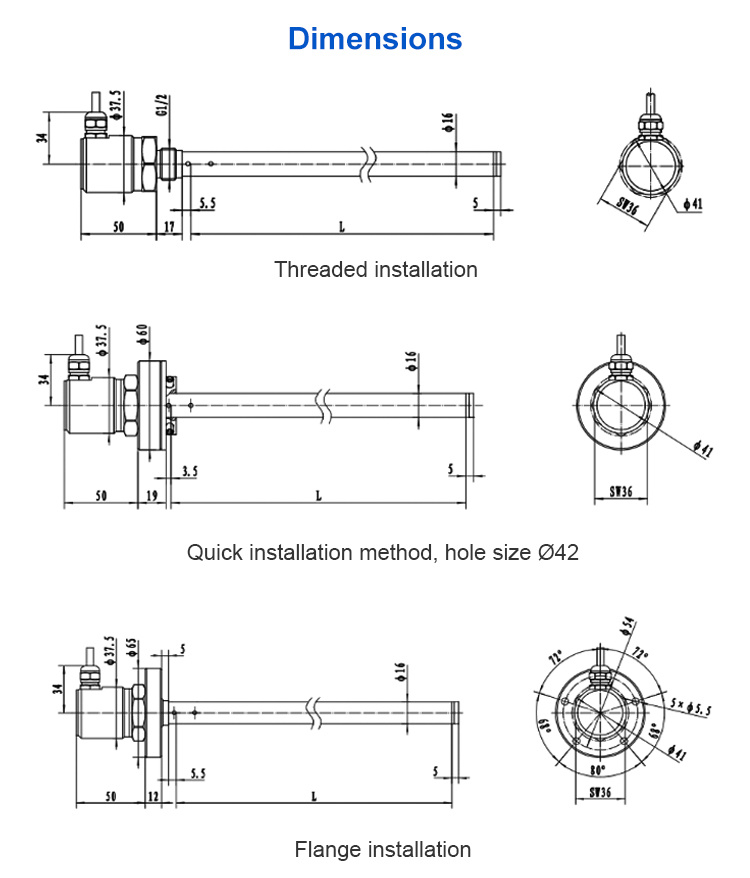

【Product dimensions】



【Detailed description】
