【Product Description】
The 3051DP series differential pressure sensor adopts the single crystal silicon sensor chip imported from Germany, and the suspended structure design has super overpressure performance and excellent stability.
【Technical Parameters】
| Measuring range | -40…400kPa -3…3MPa |
| Signal output | 4~20mA HART protocol |
| Signal Line Specifications | 2Wire |
| Comprehensive accuracy | ±0.075%FS |
| Long term stability | 0.1% range upper limit/10 years |
| Temperature compensation | -20~+65℃ |
| Operating temperature | -20~+65℃ |
| Storage temperature | -40~+100℃ |
| Destruction pressure | Bilateral static pressure: 25MPa |
| Protection class | IP66 |
| Contact medium material | 316 stainless steel |
| Electrical connections | Cable entry |
| Supply voltage | General scope:10.5~45VDC Intrinsically safe explosion-proof:10.5~26VDC |
| Overload pressure | -40…40kPa(One side 3MPa) -400…400kPa(One side 8MPa) |
| Pressure port | 1/4-18NPT |

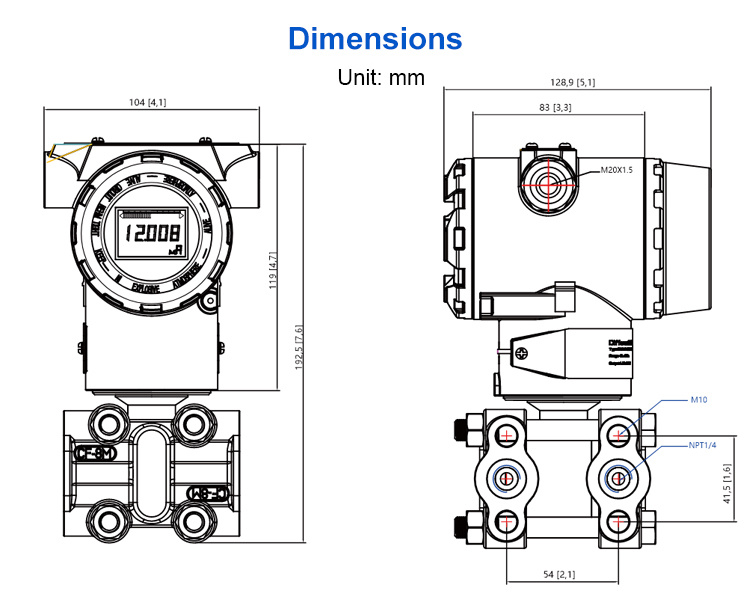

【External structure】
【Detailed description】
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor
FST800-3051 Differential Pressure Sensor
Product features:
● Single crystal silicon sensor chip
● LCD digital display with backlight
● Smart HART Protocol
● Flexible range compression
● Excellent overvoltage performance in small range
● Intelligent static pressure and temperature compensation
