【Product Description】
Many organic substances dissolved in water can absorb ultraviolet (UV) light. FST100-COD106 Chemical Oxygen Demand (COD) Sensor to accurately measure the level of organic pollutants by detecting how much UV light is absorbed at a wavelength of 254 nm. The sensor uses two light sources: one ultraviolet light to measure the COD (Chemical Oxygen Demand) content, and another reference light to assess the water’s turbidity.
Additionally, FST100-COD106 employs a specialized algorithm that compensates for any loss of light along the path and reduces the impact of suspended particles in the water. This helps ensure that the measurements remain stable and reliable, even in water with varying levels of impurities.
【Features】
【Application Scope】

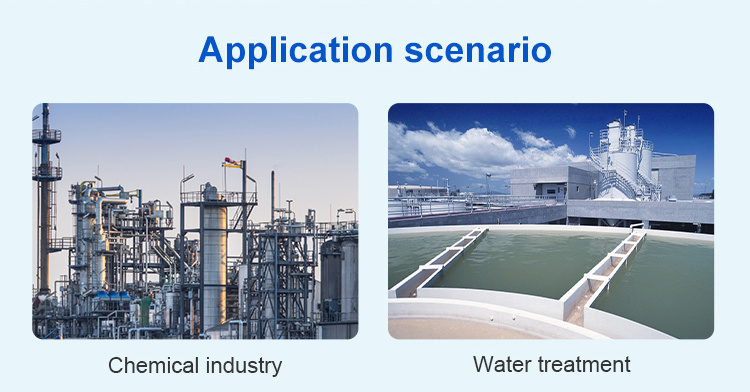

● Ordinary water treatment, sewage treatment, aquaculture, surface water monitoring
● Environmental protection projects, cooling tower circulating water, beverages and food, industrial sewage discharge monitoring, etc.
【Technical Parameters】
Measurement principle | Dual wavelength UV absorption method | ||
Main parameters
| - | COD | Turbidity |
Range | 0.5~500mg/L equiv. KHP | 0~500NTU | |
Accuracy | ±5% FS | ±5% or 0.5NTU | |
Resolution | 0.1mg/L | 0.1NTU | |
Calibration method | Two-point calibration | ||
Output method | RS-485 (Modbus/RTU) | ||
Power supply | 12~30VDC | ||
Working conditions | 0~50℃ | ||
Storage temperature | -5~65℃ | ||

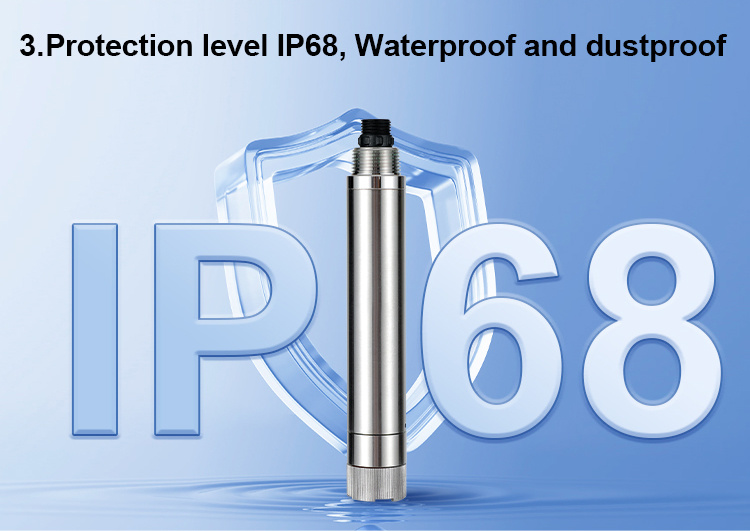

Protection level | IP68 | ||
Casing material | 316L stainless steel | ||
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor

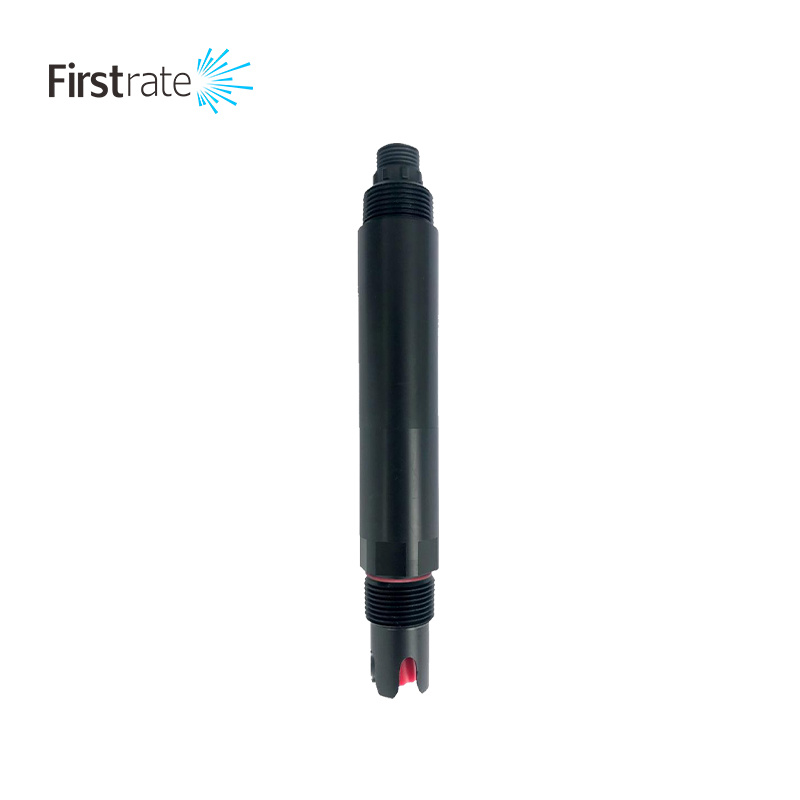

FST100-COD106 Chemical Oxygen Demand (COD) Sensor
【Features】
◇ No reagents required, no pollution, economical and environmentally friendly.
◇ Automatically compensate for turbidity interference.
◇ With a cleaning brush to prevent biological attachment.
◇ Small drift, fast response, and more accurate measurement.
◇ Excellent stability even for long-term monitoring.
◇ Maintenance-free, long service life, and low cost of use.

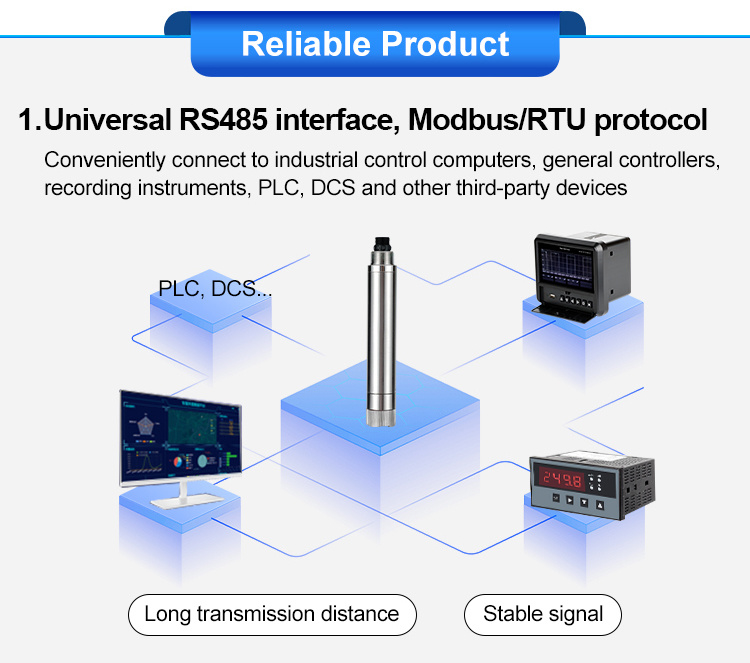

◇ Digital sensor, RS-485 interface, Modbus/RTU protocol.

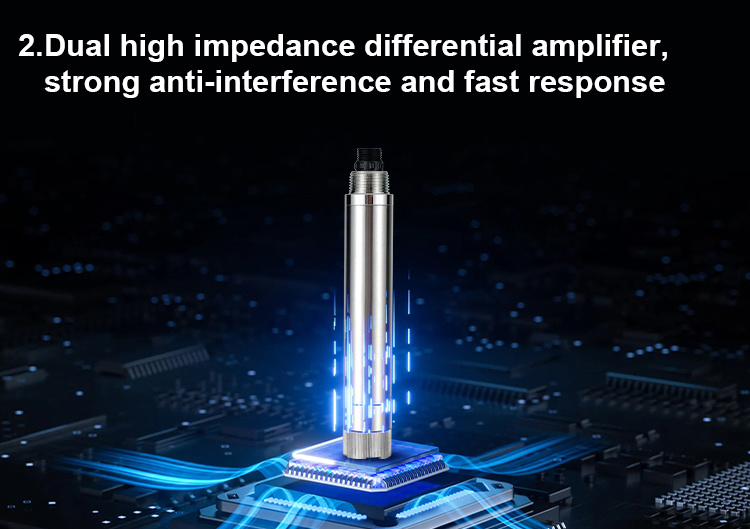

◇ Low power consumption design, anti-interference design.
【Application Scope】
● Ordinary water treatment, sewage treatment, aquaculture, surface water monitoring
● Environmental protection projects, cooling tower circulating water, beverages and food, industrial sewage discharge monitoring, etc.
