【Product description】
FST100-2001 temperature and humidity sensor adopts wall-mounted installation, built-in imported digital temperature and humidity sensor components, through industrial-grade microprocessor and digital-to-analog conversion processing, to ensure that the product output has excellent reliability, high precision and good interchangeability. It is widely used in building automation, climate and HVAC signal acquisition, greenhouses, and pharmaceutical and chemical industries.
【Features】
● High measurement accuracy
● Built-in high-performance microprocessor
● A variety of probes are available
● Integrated use of temperature and humidity
● Superior performance, good long-term stability
【Scope of application】
● Widely used in building automation
● Agricultural greenhouses, flower cultivation, etc.
● Greenhouses and pharmaceutical and chemical industries, etc.
【Technical Parameters】
| Product number | FST100-2001 |
| Measuring range | Measuring temperature: -40~+80℃，-40~+120℃ (external probe) Measuring humidity: 0%~100%RH |
| Output signal | RS485 output (Modbus protocol) 4~20mA/0~5VDC/0~10VDC |
| Supply voltage | 10~30VDC (0~10VDC output, limited to 24VDC) |
| Maximum power consumption | Digital signal: 0.4W，Analog signal: 1.2W |
| Precision | Temperature: ±0.5°C (25°C) Humidity: ±3%RH (5%RH~95%RH, 25°C) |
| Resolution | Temperature: 0.1℃ Humidity: 0.1%RH |
| Long-term stability (1 year) | Temperature: ≤0.1℃/year Humidity: ≤0.1%RH/year |
| Response time | Temperature: ≤18/s (1m/s wind speed) Humidity: ≤6 seconds (1m/s wind speed) |
| Device address | 1~255 can be set, the default is 1 |
| Device baud rate | 2400, 4800, 9600, 19200, 38400, 57600, 115200 are optional, the default is 9600 |
| Byte format | 1 start bit, 8 data bits, 1 stop bit, no parity |
| Electrical connections | Direct lead |

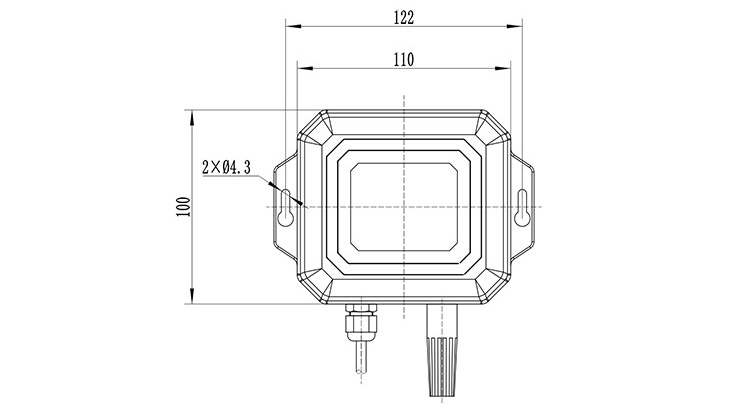

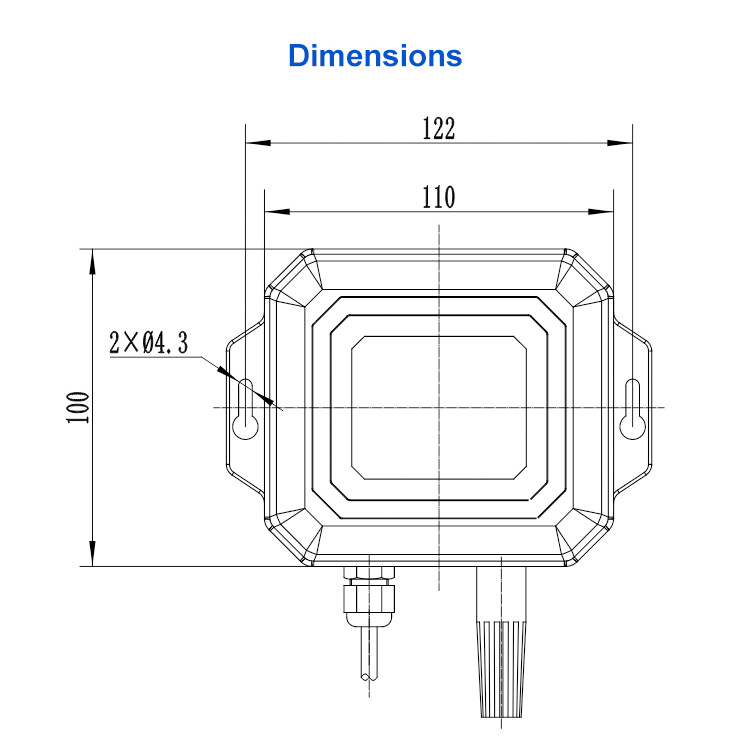

【External structure】
【Detailed description】
【1. Features】

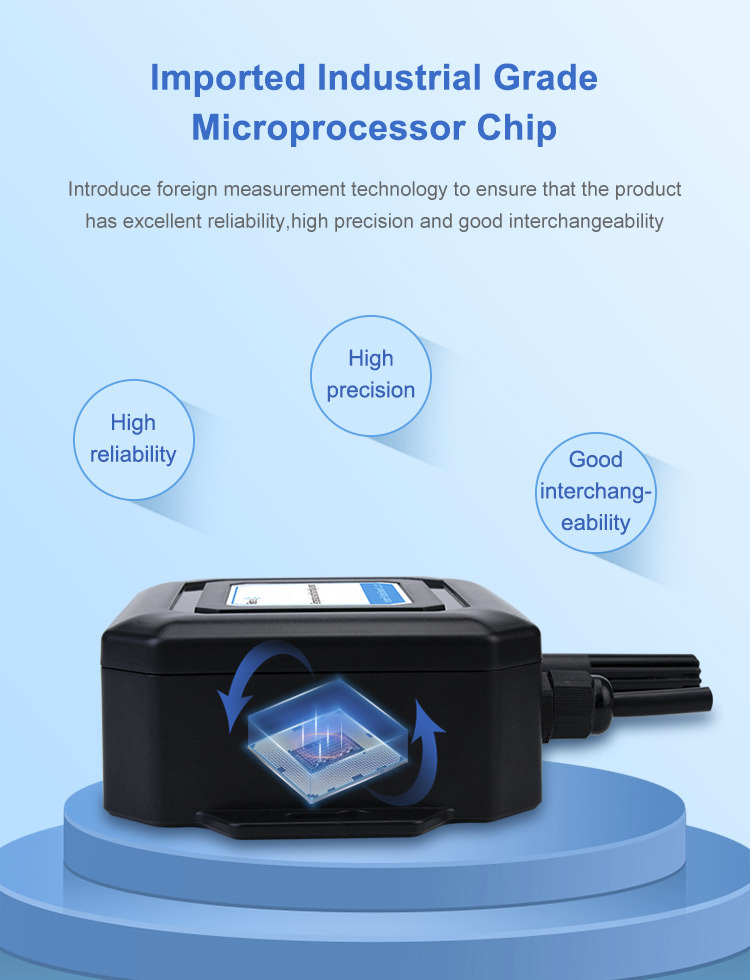

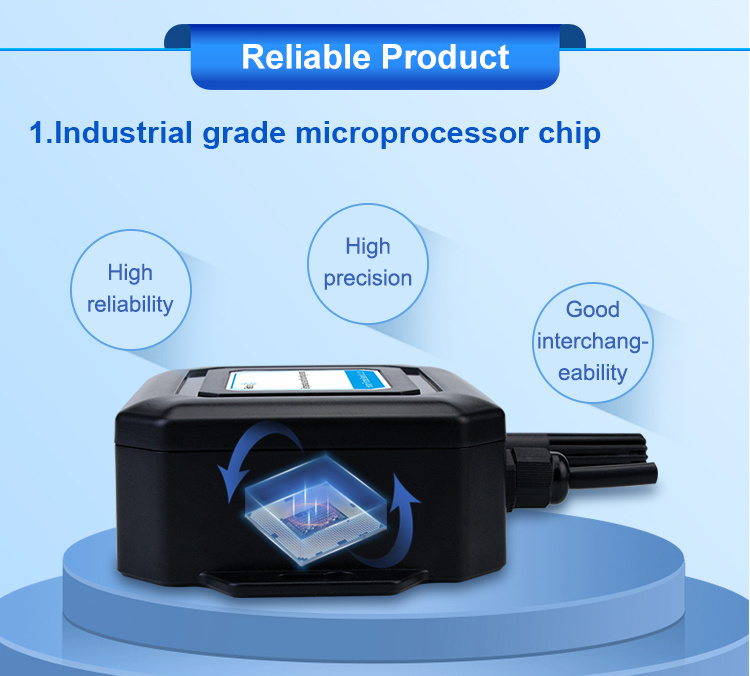

【2. Imported industrial grade microprocessor chip】
【3. Anti-moisture,Anti-salt spray,Anti-mildew】

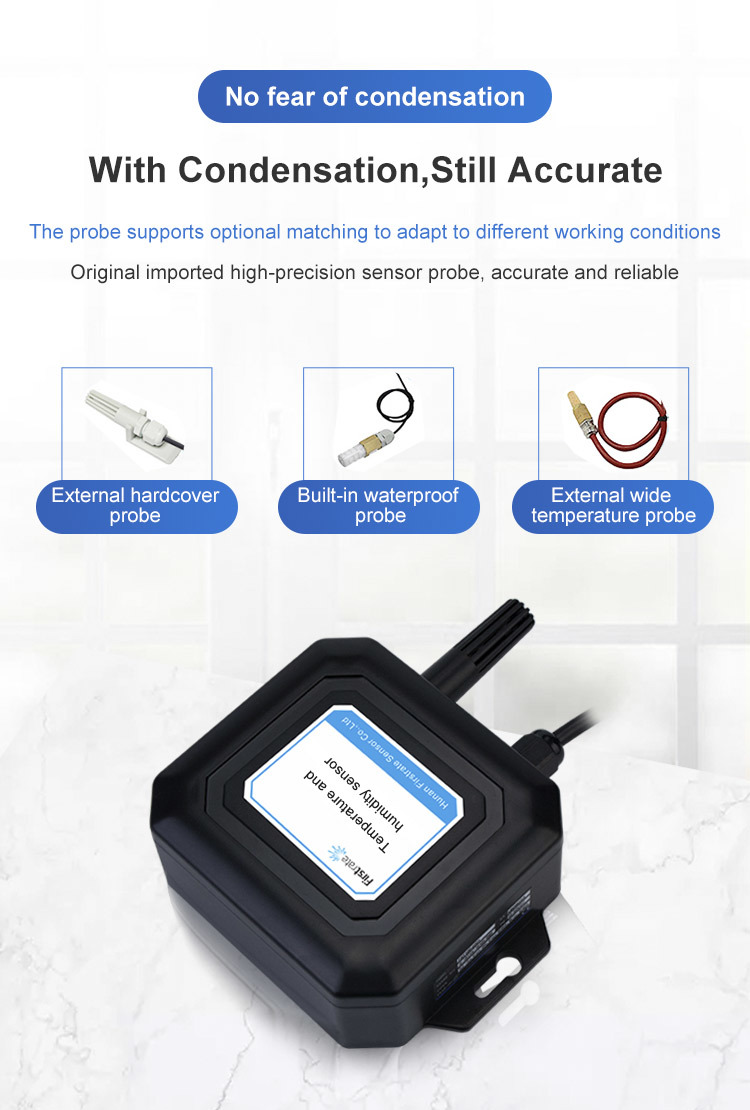

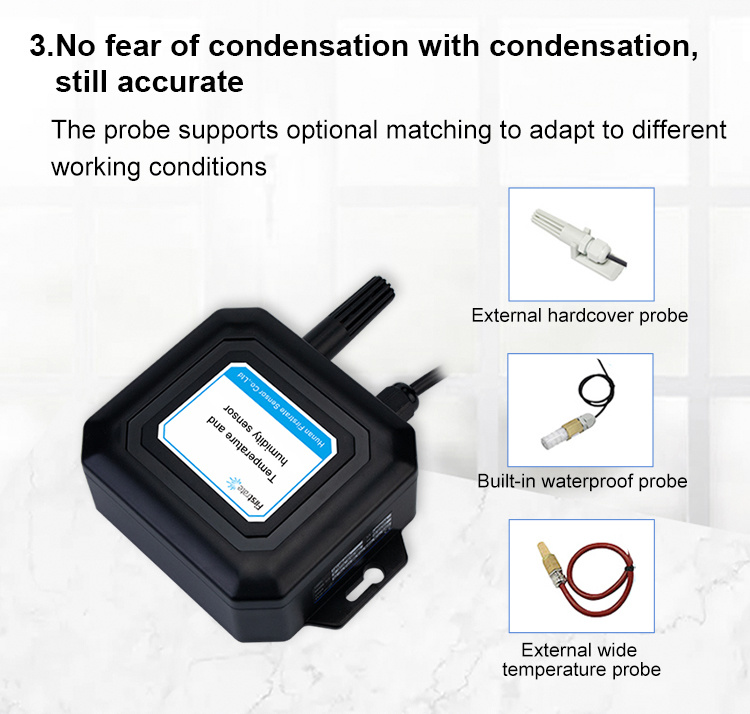

【4. With condensation,still accurate】

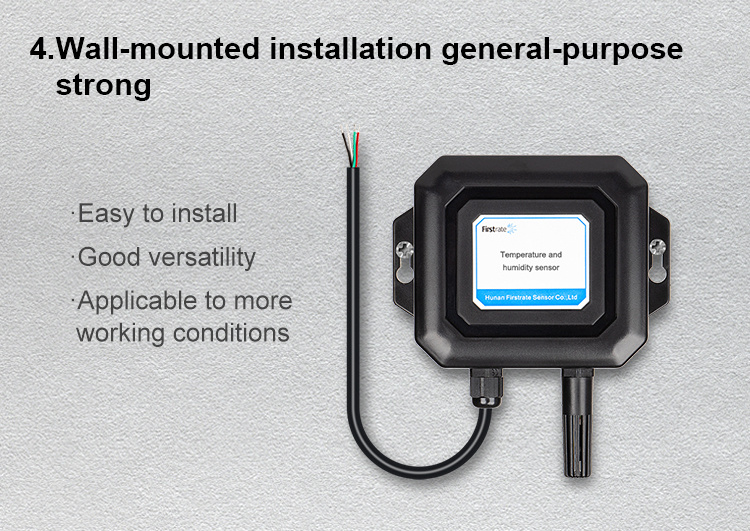

【5. Wall-mounted installation general-purpose strong】
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor
FST100-2001 Temperature and Humidity Sensor
【Features】
● High measurement accuracy
● Built-in high-performance microprocessor
● A variety of probes are available
● Integrated use of temperature and humidity
● Superior performance, good long-term stability
