【Product Description】

FST100-2001G Wall-mounted temperature and humidity sensor is a professional measurement of air temperature and relative humidity.FST100-2001G temperature and humidity sensor is a high-performance wall-mounted temperature and humidity sensor; it has a high protection level (protection level IP65), is rain and snowproof and has good air permeability; it uses imported measurement chips and has high measurement accuracy. And it can be combined with host computer software and Internet of Things technology to effectively perform statistical analysis on temperature and humidity data.

【Product Features】

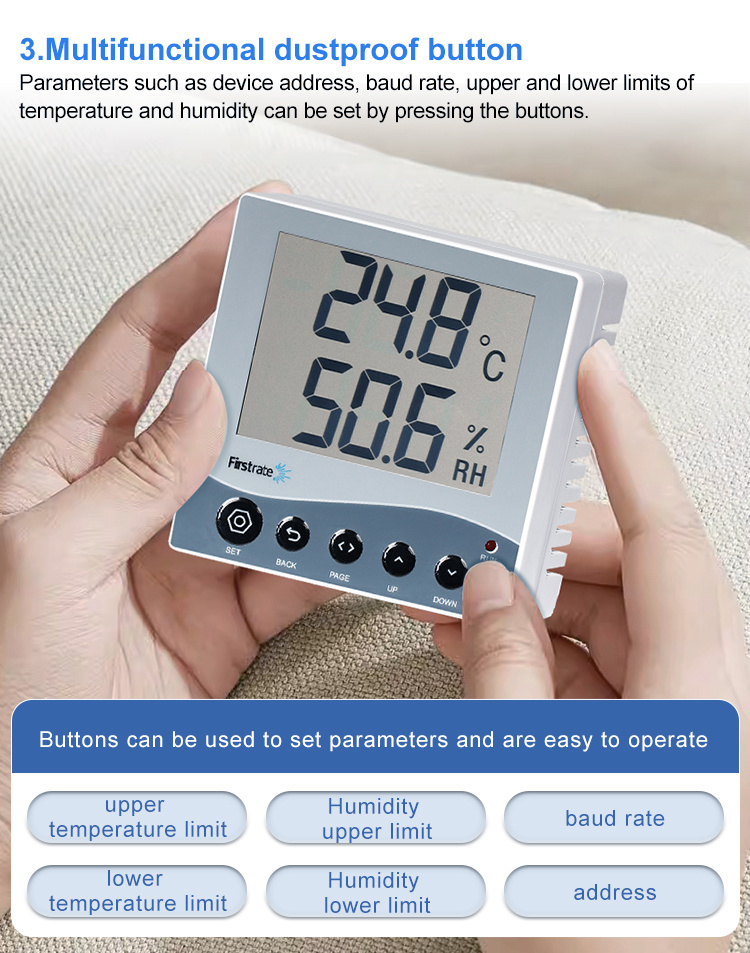

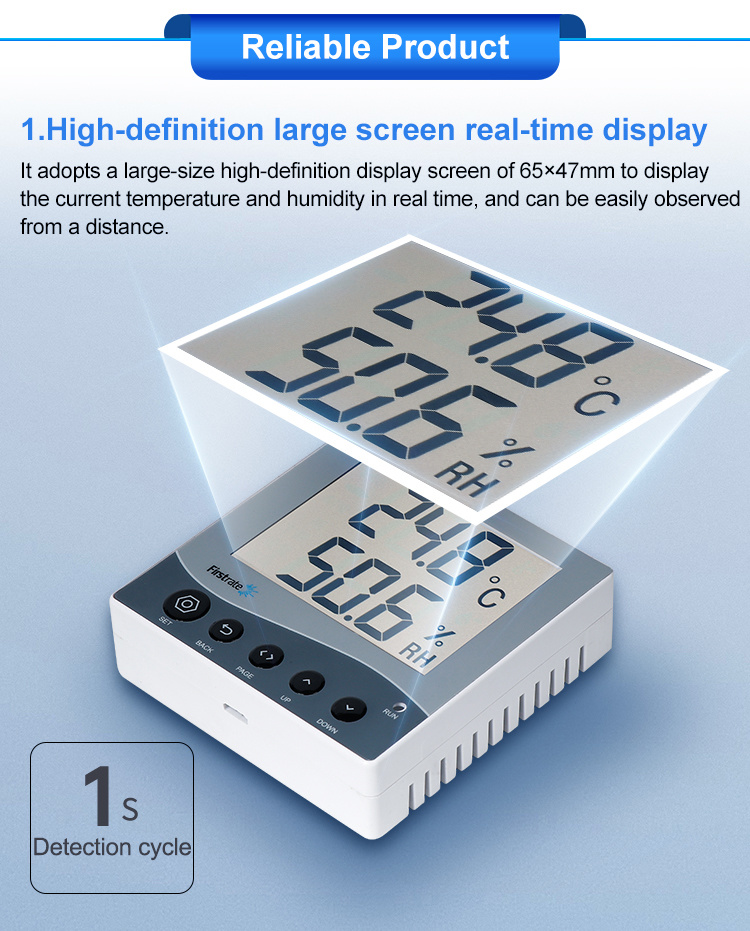

● Display interface: Large-screen LCD display, supports online setting of parameters such as temperature and humidity alarm values;

● Measurement accuracy: The highest measurement accuracy can reach 2%RH, ±0.4°C (only applicable to high-precision products);

● Signal output method: Support RS485 data transmission;

● Supporting system application: Supporting auxiliary tools such as host computer software to facilitate data viewing, processing and analysis;

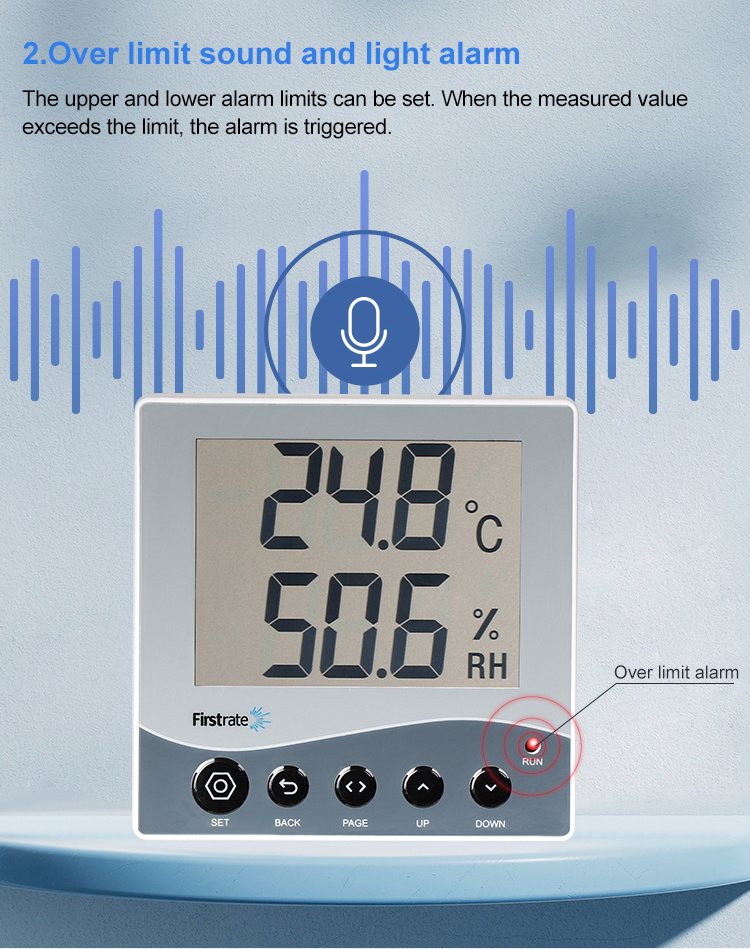

● Sound and light alarm: With sound and light alarm function.

【Application range】

● Medical industry, industrial production;

● Scientific research industry, electronic chemical industry, biological products;

● Greenhouse planting, cold chain transportation.

【Technical Parameters】

DC power supply (default)
DC 9-30V
Maximum power consumption
0.4W(DC24V)
A Accuracyhumidity
±2%RH(60%RH,25℃)
temperature
±0.4℃(25℃)
B Accuracy
(default)
humidity
±3%RH(60%RH,25℃)
temperature
±0.5℃(25℃)
Sensor circuit working temperature and humidity-30℃~+80℃, 0%RH~95%RH (non-condensation)
Probe operating temperature (external model)-40℃~+120℃ Default: -40℃~+80℃
Probe working humidity (external model)
0%RH-100%RH
Temperature display resolution
0.1℃
Humidity display resolution 0.1%RH
Temperature and humidity refresh time1s
long term stabilityHumidity≤1%RH/y
Temperature
≤0.1℃/y
Response timeHumidity≤8s(1m/s wind speed)
Temperature≤25s(1m/s wind speed)
Output signalRS485 (Modbus protocol)

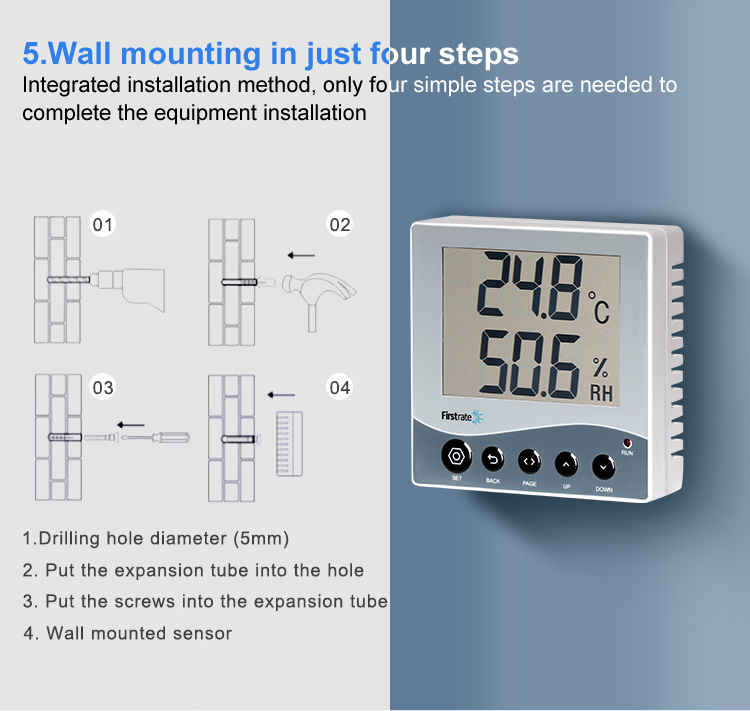

Installation methodwall-mounted

【Detailed description】

1. Wide voltage input: 9-30V;
2. Support temperature and humidity collection: using imported high-precision temperature and humidity sensors;

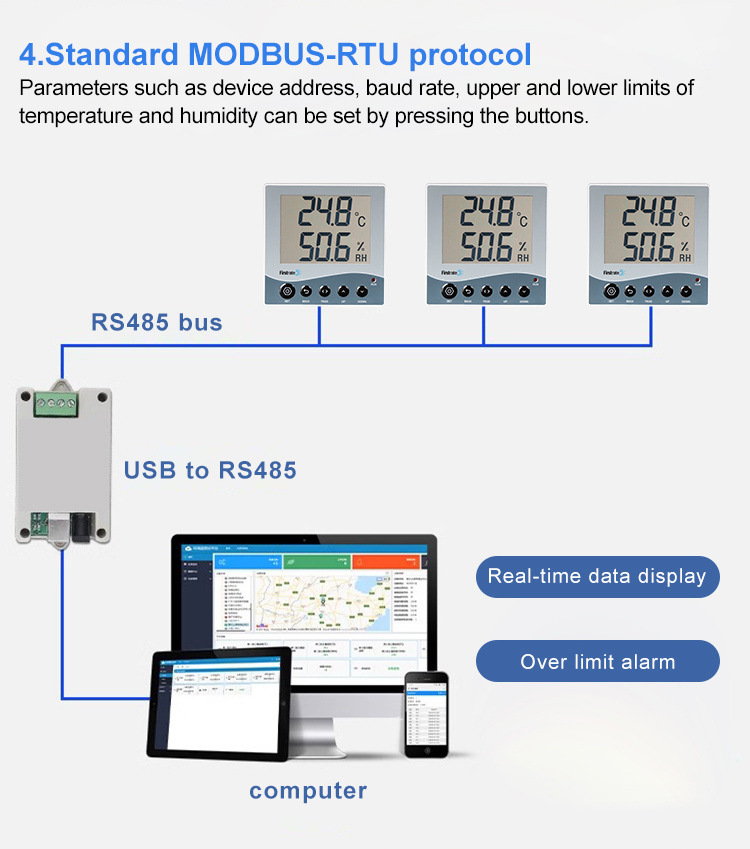

3. Using a dedicated RS485 circuit, the communication is stable;
4. The RS485 end supports the standard Modbus RTU protocol;
5. Supports multiple function codes: 0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x0F, 0x10;
6. The power supply has good overcurrent, overvoltage, and anti-reverse protection functions.
