FST100-7101 LoRawan Wireless Liquid Level Sensor

Product model:  FST100-7101

Product features:

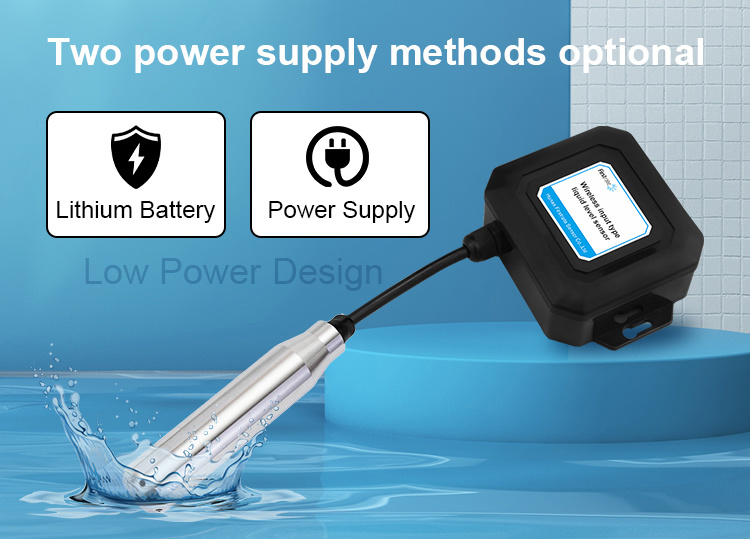

     ● Low power consumption design optional lithium battery/power supply

     ● Eliminate wiring construction, easy installation and maintenance

     ● Suitable for measuring liquid media with good fluidity

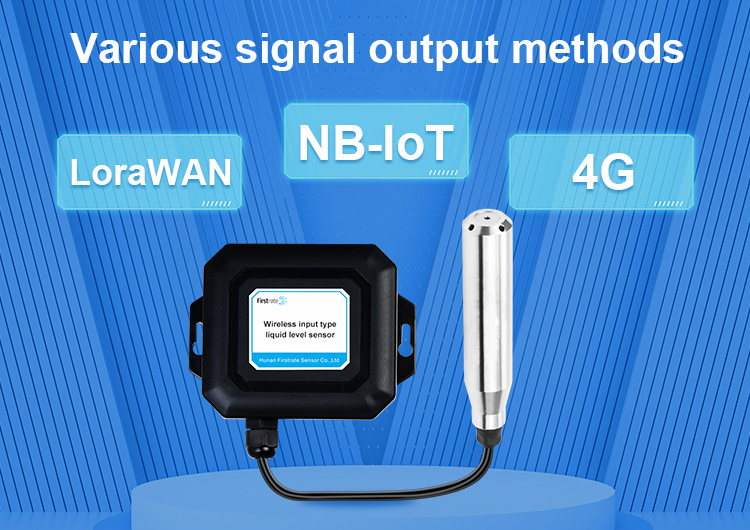

     ●  LoRa/NB-IoT/4G wireless transmission method

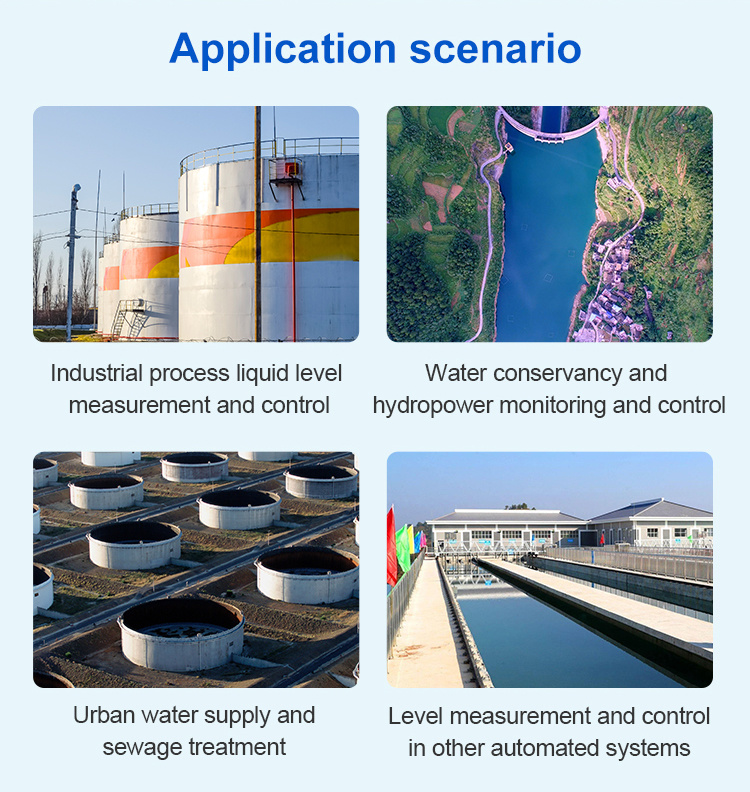

Applications:

     ● Industrial Process Level Measurement and Control

     ● Urban water supply and sewage treatment

     ● Water conservancy and hydropower monitoring and control

     ●  Level measurement and control of other automation systems

Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
FST100-7101
Quantity
-
+
Stock:
0
Introduction

【Product Description】


FST100-7101 wireless submersible liquid level sensor adopts high-quality imported pressure sensitive core, and is also equipped with ultra-low power consumption microprocessor and high precision sensor signal conditioning circuit, adding remote transmission module, using LoRa/NB IoT/4G communication network , to realize the wireless transmission of field monitoring data to the cloud. Customers can obtain the measurement data by logging in to the relevant website through the Internet PC or mobile terminal, and realize the statistics and analysis of the collected data to form reports and data curves, which are intuitive, accurate and efficient. This product is mainly used in hydrological monitoring and control systems, water pipe network monitoring, reservoir level monitoring, building automation, constant pressure water supply systems and other automation and detection systems.



【Technical Parameters】


 Measuring range (mH2O)  0~1…50m
 Supply voltage  3.6V lithium battery power supply or specified voltage power supply
 Accuracy  ±0.5%FS   ±1%FS
 Operating temperature  -20~+60℃
 Overload pressure  200%FS
 Temperature compensation  -10~+70℃
 Long-term stability (1 year)  ≤0.2%FS
 Sampling frequency  10~3600 seconds can be set
 Upload frequency  1~1440 minutes can be set
 Battery capacity  8000mAh
 Protocol

 MQTT/LWM2M/LoRaWAN multiple protocols are optional,

 others need to be explained

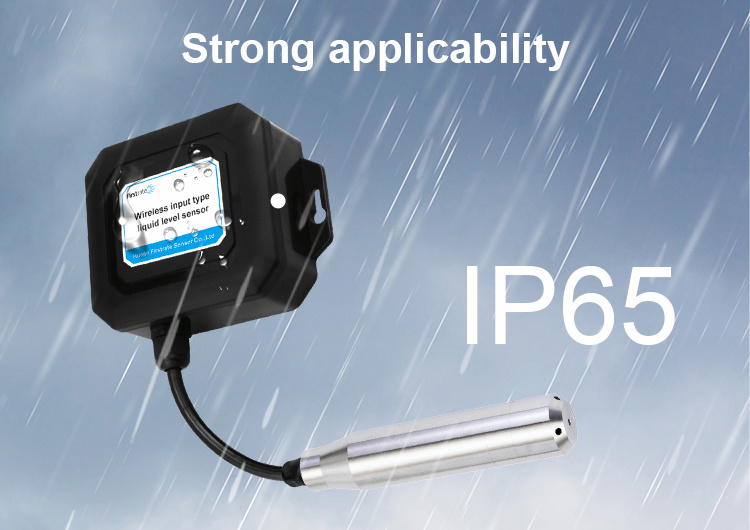

 Protection class Wetted parts: IP68, Industrial housing: IP65
 Current consumption  4G/NB-IoT: Sleep current:
 ≤20uA,Sampling current: ≤5mA (for 1s)
 Communication average current: ≤60mA (continuous for 15s)
 Online current: ≤10mA (continuously 60s)
 LoRaWAN: Sleep current is less than 20uA
 The sampling current is less than 5mA
 The sending current is less than 140mA
 Receive current less than 20mA
 Shell material

 Wetted Material: 304 Stainless Steel,

 Industrial Housing: Aluminum Die Casting or ABS

 Storage environment  Temperature -40~+85℃, Humidity: 0~95%RH





【Detailed description】








【Company strength display】



​​​​​​​
