Applications:
● Deserts ● Mountains ● High altitudes
● Oceans ● Coasts ● Ultra-low temperatures
● Tower cranes ● Wind farms ● Harsh climates
● Wind towers ● Skiing ● Aerial ropeways
● Blind protection ● Weather stations ● Construction pipe systems
【Product Description】
FST200-201B heated wind speed sensor is developed for the characteristics of lightning, heavy rain, low temperature, heavy sand and strong wind in the natural environment, which needs to resist extreme environmental factors.
FST200-201B heated wind speed sensor has a built-in analog circuit with strong resistance to radio frequency, electromagnetic interference and lightning surge, and collects the electrical signal that the rotational speed output of the wind cup is linearly related to the ambient wind speed. The heated wind speed sensor can meet the requirements of accurately measuring wind speed in harsh weather conditions such as desert, wind power generation, ultralow.
【features】
◇ Developed based on the principle of non-contact magnetic sensor measurement, the collected data has high precision and high reliability;
◇ Wide wind speed measurement range, low start wind speed;
◇ The wind speed sensor is made of materials with good corrosion resistance and strong wind resistance;
◇ The circuit protection adopts a fault-tolerant design, and the sensor will not be damaged in the case of wrong wiring;
◇ Multi-level lightning protection and anti-surge design;
◇ Can work in a wide voltage range of 18-36V DC.
【Scope of application】
It is suitable for occasions where accurate measurement of wind speed and direction is still required under harsh weather conditions such as deserts, wind power generation, ultra-low temperature, freezing rain, snow and frost (high humidity).
【Technical parameters】
| Powered by | 18-36V DC |
| Communication Interface | 4-20mA；0-20mA；0-5V；0-10V |
| Range | 0-50m/s；0-75m/s |
| Precision | ±0.5m/s (VL≤50m/s)；3% FS (VL>50m/s) |
| Resolution | 0.1m/s |
| Start wind speed | ≤0.8m/s |
| Electrostatic protection | 15Kv |
| Material | Aluminum alloy |
| Wind strength | 80m/s |
| Heating voltage | DC24V(Max:120W) |
| Cable Specifications | 6-pin(4×0.25mm²+2×1.5mm²) |
| Heating start temperature | 6°C±2°C |
| Operating environment | -40~+70°C；0~100%Relative humidity |
| Protection class | IP66 |
| Electrical connections | Aviation plug to direct outlet |
| Heating method | PTC automatic heating |

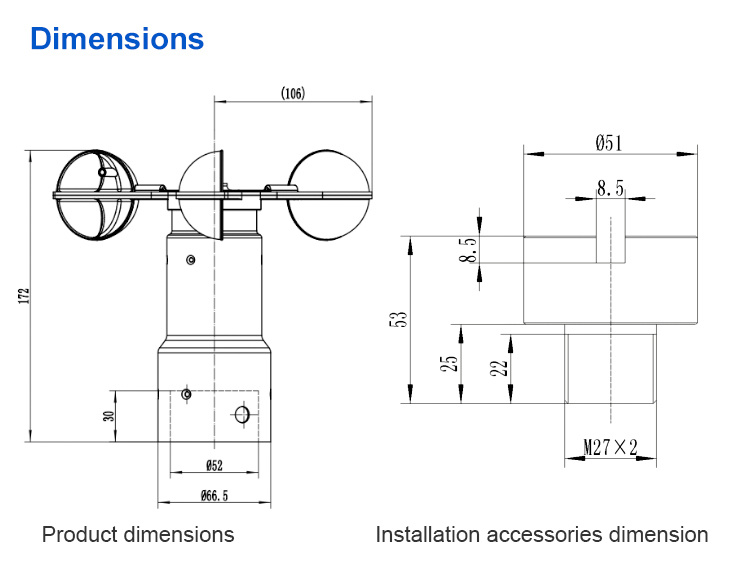

【product size】
【Detailed description】
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor
FST200-201B Heated Wind Speed Sensor for Cranes
