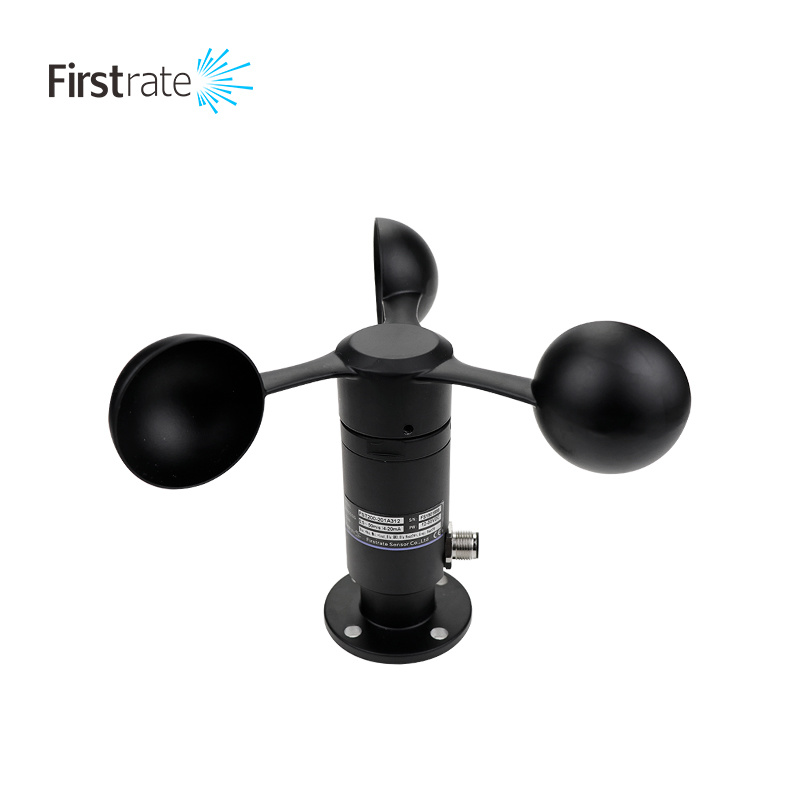

FST200-201 Digital Wind Speed Sensor

Product model: FST200-201

Product features:

● Aluminum alloy material ● Non -contact magnetic sensing measurement

● High measurement accuracy, strong reliability ● Wide wind speed measurement range

● Excellent strong wind resistance, corrosion resistance

● Excellent strong anti-radio frequency, anti-electromagnetic interference

Applications:

● Tower crane ● Large mechanical equipment

● Wind turbines ● Monitoring of working at heights

● Port and wharf ● Monitoring of environmental weather stations

Retail price

0.0

元

Market price

0.0

元

Number of views:

1000

Product serial number

FST200-201

【Product Description】

FST 200-201 wind speed sensor is a wind speed sensor with high reliability andhigh performance.This anemometer can stably and accurately collect environmental wind speed signals, and is suitable for high-altitude operations, construction machinery, port machinery and other occasions.

This wind speed sensor has a built-in digital circuit with strong anti-radio frequency, anti-electromagnetic interference and anti-lightning surge. The circuit of the wind speed sensor collects the electrical signal that the rotational speed output of the wind cup is linearly related to the ambient horizontal wind speed. The internal and rotating parts are all sealed, which can effectively prevent the intrusion of water, salt spray and sand.

【Technical parameters】

Product number	FST200-201
Measuring range	0.5~50m/S
Output signal	4~20mA, 0~5V, 0~10V, pulse Modbus485
Supply voltage	15~30VDC, pulse (5V/24VDC)
Precision	±0.5m/S (<5m/S) ±3%FS (≥5m/S)
Starting wind speed	≤0.5m/s
Wind strength	＞70m/S 30min
Operating temperature	-20~+85℃
Humidity	0%~95% (Non-condensing)
Storage temperature	-40℃~125℃
Electrostatic protection	15KV
Material	Aluminum alloy/polyester layer Wind cup integrated structure
Protection level	IP65
Electrical connections	M12 connector

【Shape structure and electrical connection】

【Detailed description】

◇ Developed based on the principle of non-contact magnetic sensor measurement;

◇ Built-in high-performance sensor, the collected data has high precision and high reliability;

◇ The wind speed measurement range is wide, and the starting wind speed is low;

◇ The wind speed sensor adopts an all-metal shell, which has good corrosion resistance and

strong wind resistance;

◇ The wind cup is made of stainless steel, which can be used under harsh conditions;

◇ The circuit protection adopts a fault-tolerant design, and the sensor will not be damaged in the

case of wrong wiring;

◇ Comply with CE EMC standard, multi-level lightning protection and anti-surge design;

◇ It can work in a wide voltage range of 15-30VDC.

【Circuit wiring diagram】

【Scope of application】

It is suitable for wind speed monitoring in factories, electric power, ports, factories and mines, wind turbines, large mechanical equipment, etc.
