【Product Description】
【Technical Parameters】
| Measuring range | 5 meters, 10 meters, 15 meters, 20 meters, 30 meters, 40 meters, 50 meters, 60 meters, 70 meters |
| Measurement accuracy | 0.5%-1.0%FS |

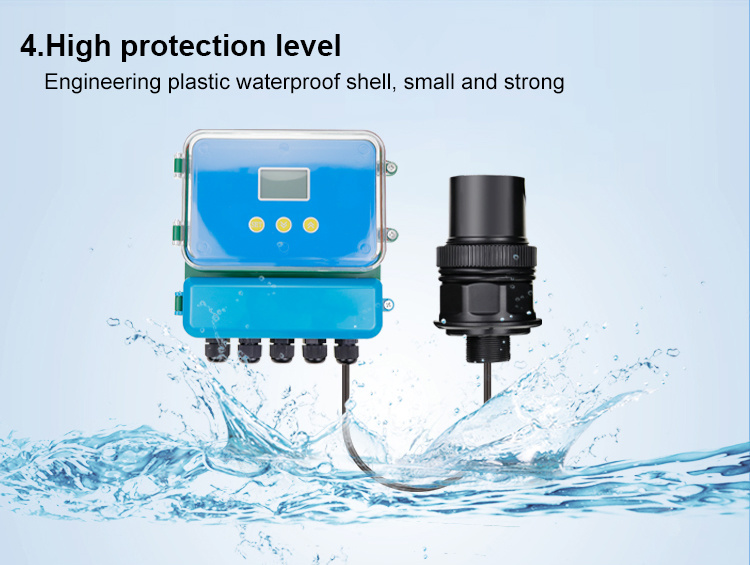

| Protection level | Display instrument IP65, probe IP68 |
| Resolution | 3mm or 0.1% (whichever is greater) |
| Lining material | Ne, FEP, PTFE or polyurethane optional |
| Signal output | 4～20mA/510Ω load |
| Installation method | Thread or flange |
| Show | Chinese LCD |
| Probe cable | Up to 100 meters, standard 10 meters |
| Communication | Optional 485, 232 communication |
| Product power consumption | -20~60℃ |
| Ambient temperature | Display instrument -20～+60℃, probe -20～+80℃ |
| Supply voltage | Standard 220V AC±15% 50Hz, optional 24VDC 120mA, 12VDC or battery power supply can be customized |
| Relay output | (Optional) Single channel is 2 groups, dual channel is 4 groups AC 250V/ 8A or DC 30V/ 5A state programmable |
| Environment humidity | The split type uses 24V power supply. The power consumption is 100mA without relay, 120mA with one relay, 145mA for 2 relays, 170mA for 3 relays, and 190mA for 4 relays. The specific power is as follows: No relay is 24×100mA= 2.4W; 1 relay is 24×120mA=2.9W; 2 relays are 24×145mA=3.5W; 3 relays are 24×170mA=4.1W; 2 relays are 24×190mA=4.6W; |
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor
FST700-CS02 Split Ultrasonic Level Sensor
Product features:

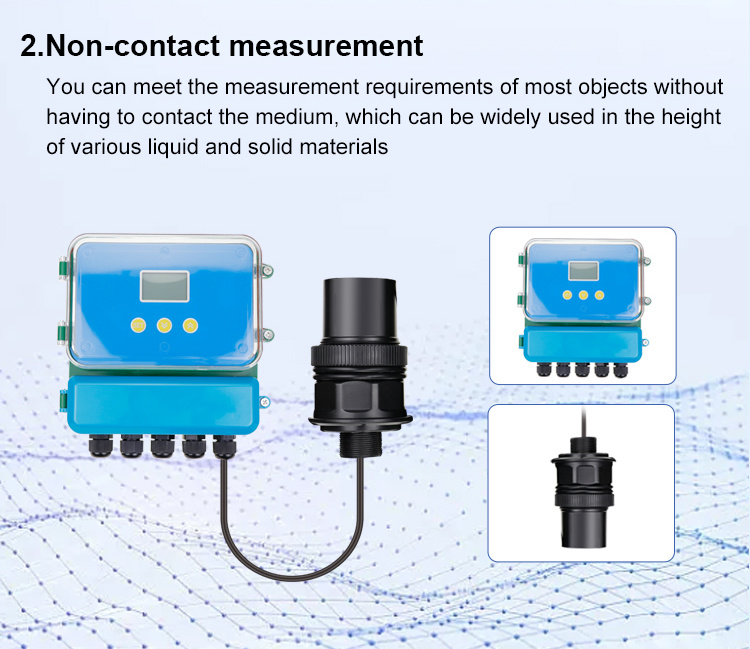

● Non-contact continuous measurement reduces maintenance;
● Product 4~20mA analog output, optional alarm control, RS485/R232 communication mode;
● There are two options for distance measurement and level measurement;

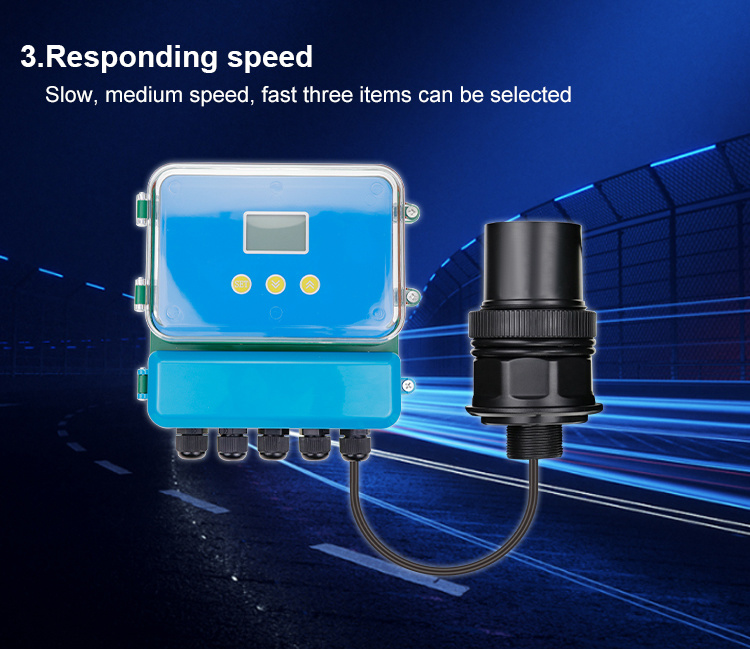

● The response speed can be selected from three options: slow, medium and fast;
● The safety level can be selected from four items: maintain, minimum, maximum, and set value;
● The upper and lower limit nodes and online output adjustment can be set arbitrarily, with on-site display.
