FST700-CS01 Ultrasonic Water Tank Level Sensor

Product model: FST700-CS01


Product features: Non-contact continuous measurement, reducing maintenance; product 4-20mA analog
output, optional alarm control, RS485/R232 communication mode; there are two options for distance
measurement and level measurement; response speed is slow and medium , Quick three options can be
selected...

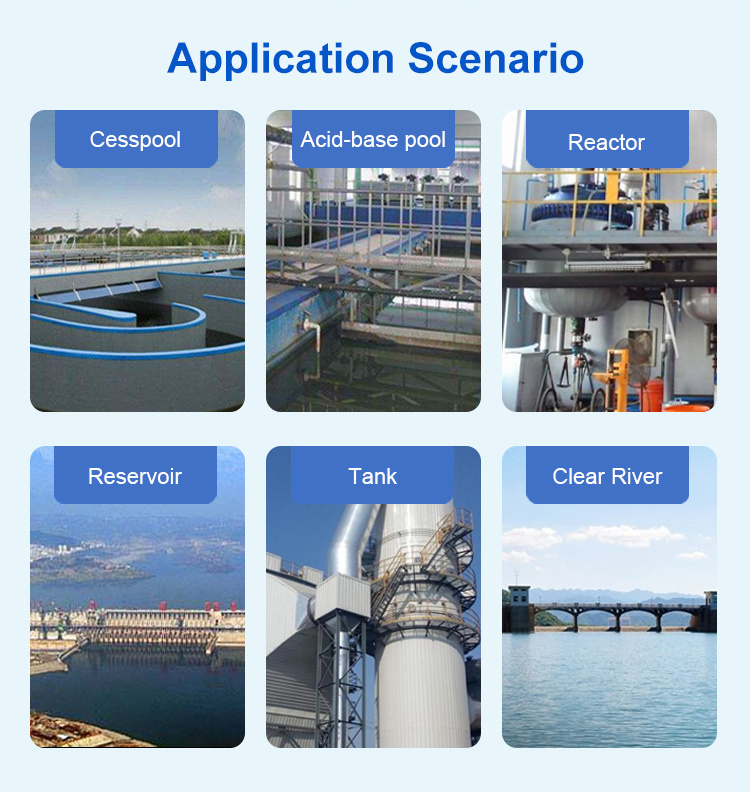

Application scope: Basement sump, sump, pump room in building; sewage room, water plant, chemical
plant, various containers and tanks, etc.; steel, coal, electric power, petrochemical, transportation, food
processing and other industries.

Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
FST700-CS01
Quantity
-
+
Stock:
0
Introduction

【Product Description】


FST700-CS01 Ultrasonic Water Tank Level Sensor (measure material level, liquid level) is a non-contact, high reliability, cost-effective, easy to install and maintain level measuring instrument. It can meet most of the level measurement requirements without contacting the medium, and can be widely used in the measurement of the height of various liquid and solid materials, especially in the environmental protection industry, sewage treatment sites, etc.



【Technical Parameters】


 Product number  FST700-CS01
 Measuring range  0~2.. .60 meters
 Measurement accuracy  0.5%~1%FS
 Resolution  3mm or 0.1% (whichever is greater)
 Measuring medium  Level height of various liquids or solids
 Signal output

 4-wire system 4~20mA 2-wire system 4~20mA With RTU,

 unlimited transmission

 Supply voltage  Standard 24VDC, 220VAC optional
 Relay output  Optional 2 groups of AC 250V/8A or DC 30V/5A, state programmable
 Communication function  RS485/RS232
 Ambient temperature Instrument  Display instrument -20~+60℃, probe -20~+80℃
 Communication  Optional 485, 232 communication
 Installation method Chinese LCD display (English display can be customized)
 Material  Thread or flange
 Protection level Display instrument IP65, probe IP68





【Detailed description】




【Scope of application】






Keyword:
Ultrasonic Level Gauge
We could not find any corresponding parameters, please add them to the properties table
