【Product Description】
FST800-225 explosion proof pressure transducer is a high-precision, high-stability, multi-parameter, LED, LCD display intelligent pressure measurement product, optional HART protocol function. The user can manage or calibrate the parameters through the host computer, and can also use the keys to perform on-site calibration, which is easy to operate.
Product features

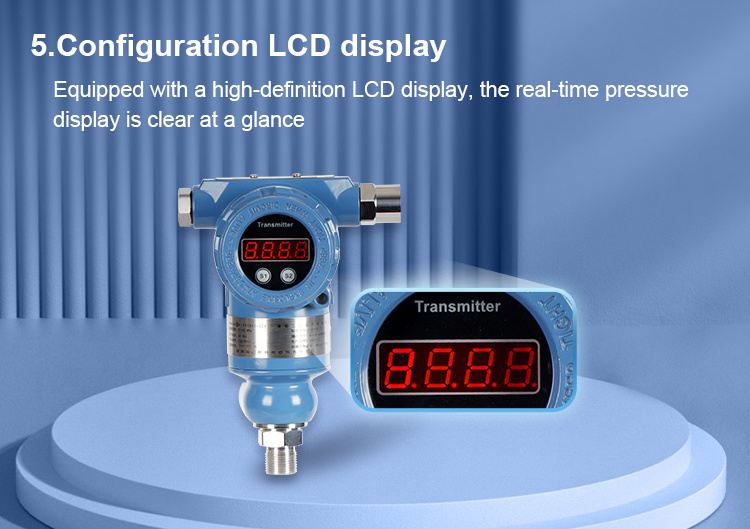

● LCD display
● 4-20mA output Optional HART protocol

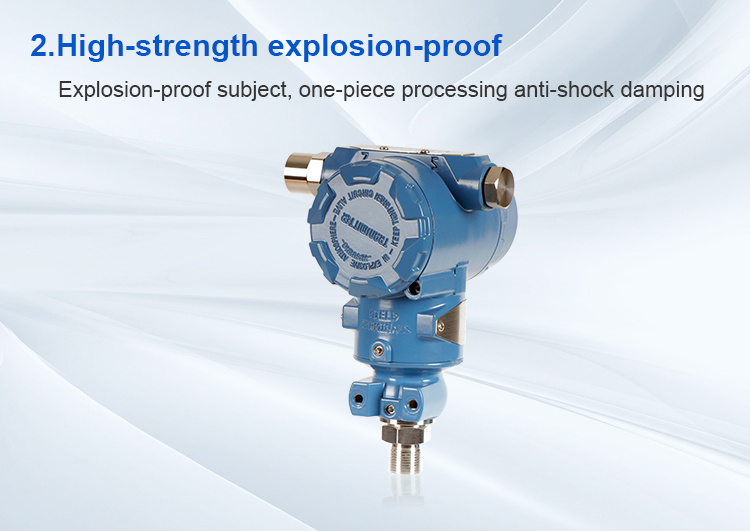

● Exdll CT6 Gb explosion-proof
● Highly corrosion resistant SS hou
● Adopt digital temperature compensation
【Application range】
● Hydraulic and pneumatic control
● Petrochemical, environmental protection, air compression
● Other industrial automation process control and detection systems
● Chemical products and chemical industry
● Light industry, metallurgy, machinery
【Technical Parameters】
| Pressure type | Gauge pressure, absolute pressure |
| Pressure range (bar) | 0.5 1 2 4 5 10 16 25 40 60 100 160 200 250 300 400 500 600 |
| Signal output | 4~20mA HART protocol optional |
| Signal Line Specifications | 2Wire |
| Supply voltage | 12~28VDC (recommended value: 24VDC) |
| Display method | LCD display |
| Overload pressure | 150%FS |
| Storage temperature | -40~+105℃ |
| Breaking pressure | 200%FS |
| Shell material | Aluminum alloy explosion-proof enclosure |
| Precision | ±0.25%FS±0.5%FS±1 %FS |

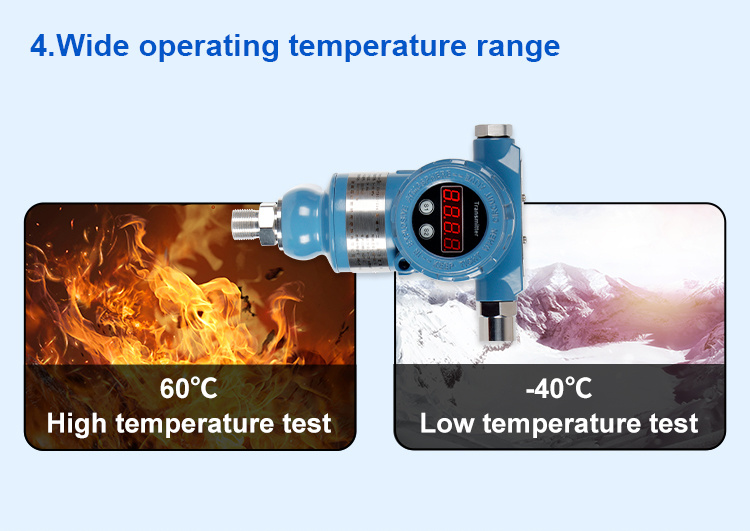

| Operating temperature | -20~60℃ (Explosion-proof type) |
| Electrical Interface | Direct lead |
| Pressure port | M20×1.5 or customized |
| Flameproof certification | Exdll CT6 Gb |
| Protection class | IP65 |
【Dimensions】
【Electrical interface and wiring method】
【Detailed description】
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor
FST800-225 Explosion-proof pressure sensor
Product features
● LCD display
● 4-20mA output Optional HART protocol
● Exdll CT6 Gb explosion-proof
● Highly corrosion resistant SS hou
● Adopt digital temperature compensation
Application range
● Hydraulic and pneumatic control
● Petrochemical, environmental protection, air compression
● Other industrial automation process control and detection systems
● Chemical products and chemical industry
● Light industry, metallurgy, machinery
