FST800-215 explosion proof pressure transducer

Product model: FST800-215



Product features:

● Excellent shock, overload, vibration and corrosion resistance

● Explosion-proof and explosion-proof structure design, Exd ll Ct6 Gb

● Advanced temperature digital compensation function, wide operating temperature range

● High-efficiency lightning protection, strong anti-RF and electromagnetic interference protection

● High precision, high frequency response, good long-term stability



Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
FST800-215
Quantity
-
+
Stock:
0
Introduction

Product Description



FST800-215 explosion-proof pressure transducer has effective lightning protection and strong RFI&EMl protection, built-in high-performance intrinsically safe, explosion-proof circuit (ExdICT6 Gb).
Explosion-proof pressure transmitter with excellent resistance to shock, overload, vibration and corrosion, advanced digital temperature compensation and a wide range of operating temperatures.Stainless steel construction, built-in compatibility, quality you can trust.









【Features】



● Excellent shock, overload, vibration and corrosion resistance

● Explosion-proof and explosion-proof structure design, Exd ll Ct6 Gb

● Advanced temperature digital compensation function, wide operating temperature range

● High-efficiency lightning protection, strong anti-RF and electromagnetic interference protection

● High precision, high frequency response, good long-term stability





【Technical Parameters】

 Pressure type  Gauge pressure, absolute pressure, sealing pressure
 Pressure range (bar)

 1、1.6、2.5、4、6、10、16、25、40、60、100、160、200、250、300、

 400、500、600、750、1000、1500

 Pressure Range (psi)  15  30  50  75  100  200  300  500  750  1K  1.5K  3K  5K  10K  12K  15K  25K
 Signal output  4~20mA   0.5-4.5VDC  0.5~4.5VDC  0~5VDC      0~10VDC       Rs485           RS232(proportional output)
 Signal Line Specifications  2Wire  3Wire  3Wire  3Wire  3Wire  4Wire  4Wire
 Supply voltage  9~30VDC  5VDC  9~30VDC  9~30VDC  15~30VDC  9~30VDC  9~30VDC
 Pressure port  M20×1.5 G1/4 NPT1/4 (others can be customized on request)
 Material  17-4PH (range≥6bar)      304 or 316L (range<6bar)
 Overload pressure  150%FS(range<6bar)      300%FS(range≥6bar)
 Destruction pressure  200%FS (range<6bar)    500%FS (range≥6bar, limit 10000bar)
 Accuracy  ±0.3%FS  ±0.5%FS
 Shock (11ms)  100g
 Long-term stability (1   year)  ±0.25%FS
 Explosion-proof grade  Exd ll Ct6 Gb
 Response frequency   (-3dB)  3.2kHZ
 Protection class  Ip65
 Temperature   compensation  -20~+85℃
 Electrical connections  Direct lead
 Storage temperature  -40~+125℃
 Electromagnetic   Compatibility (EMC)  EN61000-6
 Mechanical vibration  ±20g
 Certification Program  CE    RoHS

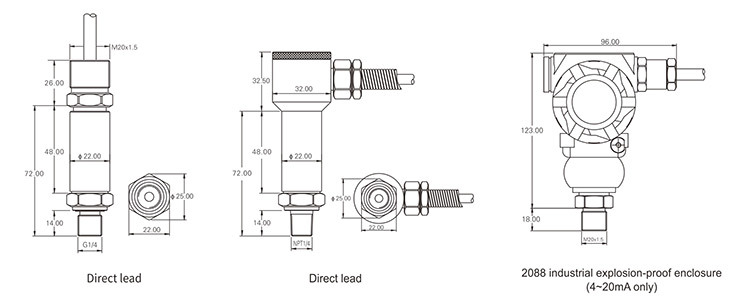

【External structure】



【Scope of application】



Explosion-proof pressure transducers are specialized devices designed to operate safely in environments where there is a risk of explosive gases or vapors. They are typically used in industries and applications where safety is of paramount importance. Here's how explosion-proof pressure transducers are commonly applied in various fields:

●Petroleum and Gas Industry:
●New Energy
●Measuring hydraulic pressure in heavy machinery like excavators, cranes, and bulldozers.
●HVAC (Heating, Ventilation, and Air Conditioning):
●Loader Scale:







【Certifications】



Firstrate explosion-proof pressure transducers are designed to meet specific safety standards and certifications, such as ATEX (European Union), FM (Factory Mutual), or CSA (Canadian Standards Association), depending on the region and industry requirements.
