New Arrival FSTRD-905 Radar Tank Level  Level Sensor
+
  • New Arrival FSTRD-905 Radar Tank Level  Level Sensor

Product Description

FSTRD-905 radar water level meter is a frequency modulated continuous wave (FMCW) radar product operating at 76-81GHz. The maximum range of the product can reach 65m, and the blind zone is 10cm. Due to its higher operating frequency, larger bandwidth and higher measurement accuracy. The product provides a bracket fixing method, eliminating the need for on-site fabrication.Wires make installation quick and easy.

【Technical Parameters】

  Range

 0.1 m ~65m

  Measurement accuracy

 ±2mm

  Beam angle 6°
  Voltage 9~28 VDC
  Working Temperature

 -30~75℃

  Material  Stainless steel/PP
  Cable

 0.5mm²

  IP Level

 IP67

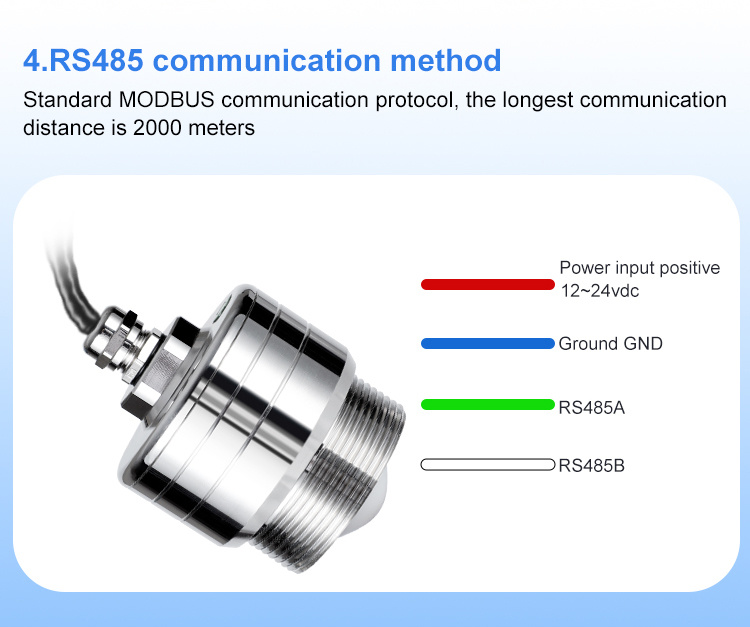

  Communication RS485
  Cable entry PG9

【Product Features】

● Millimeter wave RF chip, realizing a more compact RF architecture, higher signal-to-noise ratio, and smaller blind area;
● 5GHz working bandwidth, giving the product higher measurement resolution and measurement accuracy;
● The narrowest 6° antenna beam angle, the interference in the installation environment has less impact on the instrument, and the installation is more convenient;
● Integrated lens design, compact size.

Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor

New Arrival FSTRD-905 Radar Tank Level  Level Sensor
+
  • New Arrival FSTRD-905 Radar Tank Level  Level Sensor

New Arrival FSTRD-905 Radar Tank Level Level Sensor


Product model:  FSTRD-905

Product features:

 ●  The antenna size is small, easy to install; non -contact radar, no wear, no pollution
 ●  The serious dust environment has little effect on the work of high -frequency objects
 ●  The wavelength is shorter and has a better reflection on the tilted solid surface
 ●  Measuring the blind spots is smaller, it will also achieve good results for the measurement of small cans
 ●  High signal -to -noise ratio, even in the case of fluctuations, can get better performance
