【Product Description】
FST500-502 Digital Display Pressure Switch provides continuous pressure monitoring, and the user can easily set the switching point and differential point without the need for booster equipment. The switch load capacity of the pressure switch ranges from several uA to 500mA, and simultaneously converts the collected pressure signal into a standard current signal output. The product display head and joints can be rotated flexibly to ensure that the product can work smoothly in some difficult-to-install occasions.
【Product Features】
●Good pressure resistance and strong overpressure performance
●A variety of switch quantities and transmission signal outputs are optional
●Equipped with four-digit LED digital field display function
●Rotatable head, more convenient to view data
【Application Range】
●Applicable to pump control, tank monitoring, liquid level control, filter blockage, monitoring, leakage monitoring
●Industrial process detection and control
●Building automation, constant pressure water supply
●Petrochemical, environmental protection, water conservancy, light industry, machinery, metallurgy
【Technical Parameter】
Measuring range | 0~1...600bar |
Supply voltage | 9～30VDC (recommended 24VDC); If 0~10V output is selected, the power supply range is 15-30VDC (24VDC is recommended) |
Pressure alarm adjustment range | 0~full scale display value |
Working temperature | -20~70℃ |
Load Resistance | Voltage output: RL>100KΩ; current output: RL≤(power supply voltage -9V) |
Precision | ±0.5％FS,±0.3％FS |
Allow overload | 150% FS (range < 6bar),300% FS (range ≥ 6bar) |
Long-term stability | ±0.1%FS/year |
Control output | Transistor (NPN/PNP) or relay (NC/NO) optional |
Analog signal output | 4~20mA,0-5V,0-10V optional |
Degree of protection | IP65 |
Note:The display head and threaded connector can be rotated relative to the housing respectively, which is convenient for display observation and installation.
Signal output
Output method
| Transistor High level ≈ (+Vcc-0.7)V | Relay（DC30V/1A） | ||
NPN | PNP | |||
Normal state | high level | low level | Normally open (disconnected) | Normally closed (pull in) |
Alarm status | low level | high level | Normally closed (pull in) | Normally open (disconnected) |
Analog output (optional) | 4-20mA 0-5V 0-10V | 4-20mA 0-5V 0-10V | ||
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor

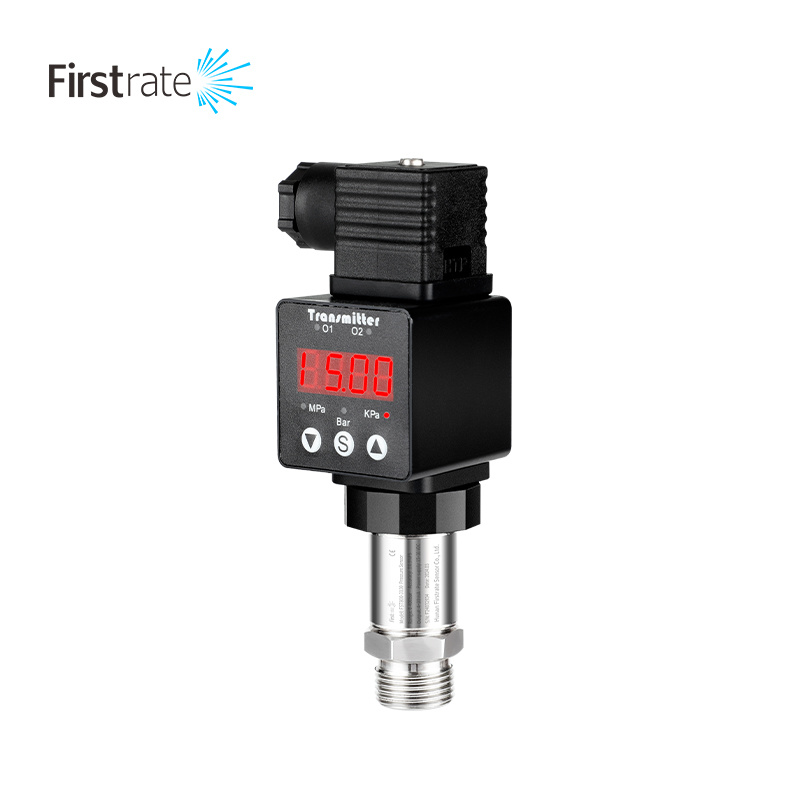

FST500-502 Electronic Digital Display Pressure Switch
【Product Features】
●Good pressure resistance and strong overpressure performance
●A variety of switch quantities and transmission signal outputs are optional
●Equipped with four-digit LED digital field display function
●Rotatable head, more convenient to view data
【Application 】
●Applicable to pump control, tank monitoring, liquid level control, filter blockage, monitoring, leakage monitoring
●Industrial process detection and control
●Building automation, constant pressure water supply
●Petrochemical, environmental protection, water conservancy, light industry, machinery, metallurgy
