FST800-211A industrial pressure sensor

Product features:
● Advanced micro fused silicon strain gauge
● leak free elastomer structure
● Integrated temperature compensation
● Highly corrosion resistant SS housing
● Excellent shock, overload, & vibration resistance
● Independent temperature and pressure outputs
Applications:
● Industrial process and control
● Automated detection
● Hydraulic and full-motion control
● Water treatment system
● Industrial machinery manufacturing
● Pumping stations
Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
FST800-211A
Quantity
-
+
Stock:
0
Introduction

Product Description



FST800-211A industrial pressure sensor glass micro-melting process, the overall structure design of the elastomer, no hidden danger of leakage; lightning protection, strong resistance to radio frequency and electromagnetic interference protection; temperature digital compensation function, wide operating temperature range; high precision, High frequency response, good long-term stability.







【Technical Parameters】



 Product number  FST800-211A
 Pressure type  Gauge pressure, absolute pressure, sealed pressure
 Standard range  0~6…600 bar
 Signal output  4~20mA, 0.5~4.5VDC, 0~5VDC, 0~10VDC
 Supply voltage  9~30VDC, 5VDC (0.5~4.5V), 15~30VDC (0~10V)
 Accuracy  ±0.5%FS, ±1%FS
 Long-term stability  ±0.1%FS/year
 Temperature compensation  -20~+85
 Operating temperature  -40~+85
 Storage temperature  -40~+85
 Overload pressure  300%FS
 Breaking pressure  500%FS
 Impact (11mS)   100g
 Protection level  IP65
 Material  17-4PH

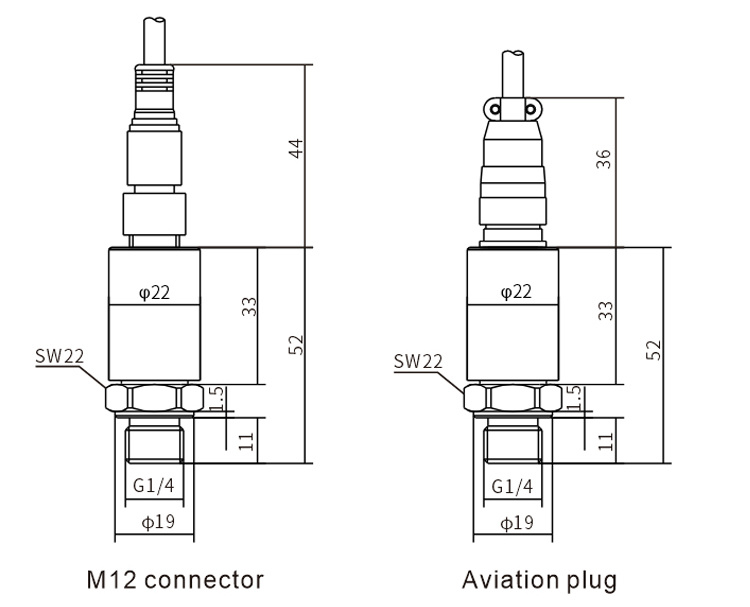

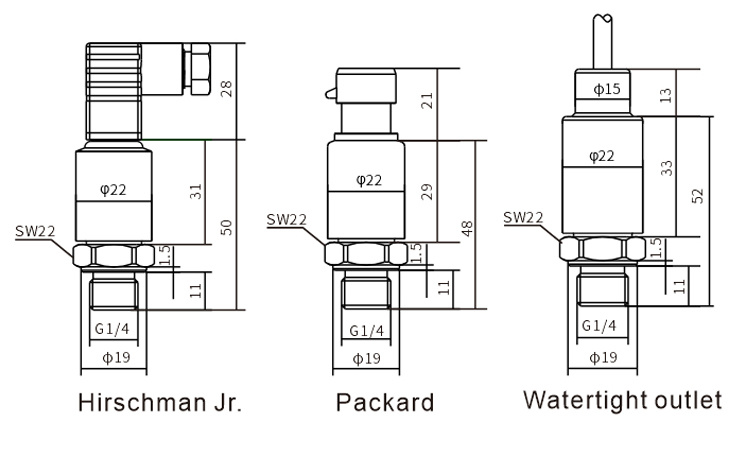

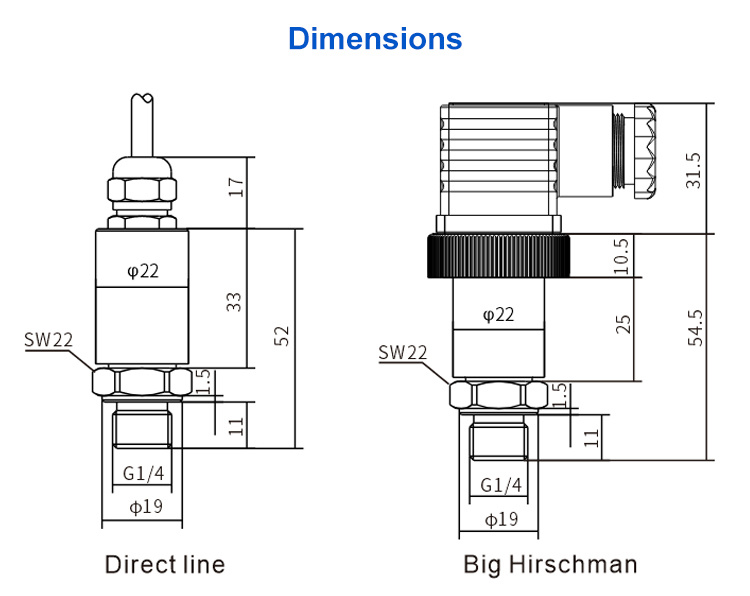

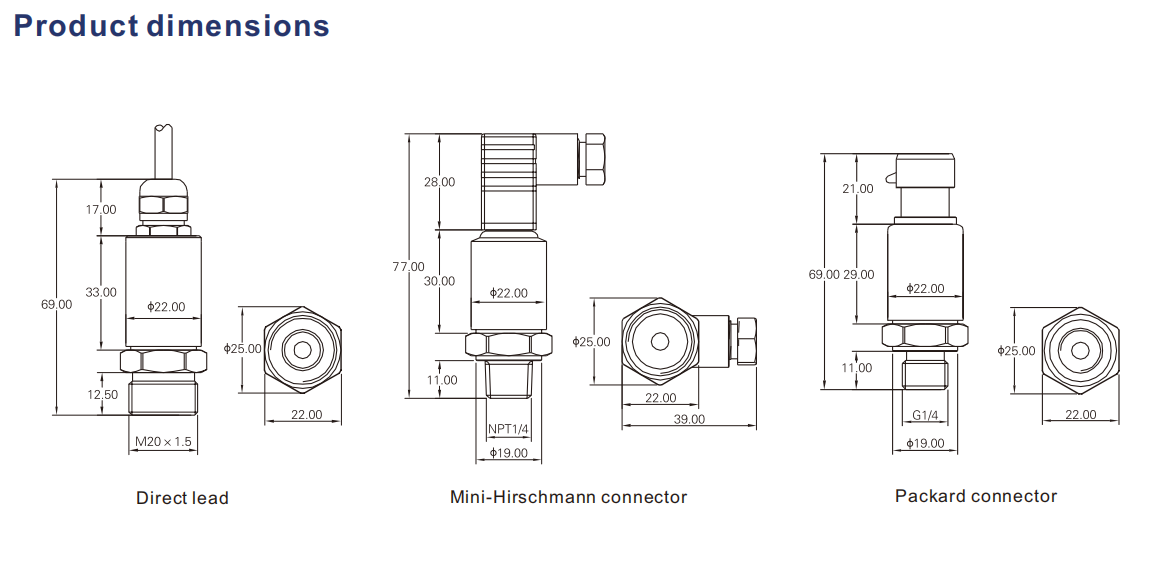

 Electrical connections  Direct lead, M12 connector, Packard connector,
 Hirschmann (Mini), Hirschmann (DIN43650)

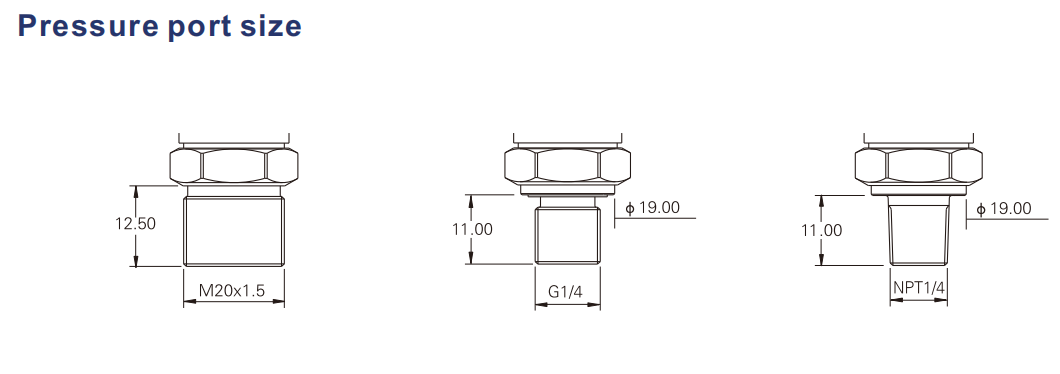

 Pressure port  M20X1.5 G1/4 NPT1/4 (others need to be customized)

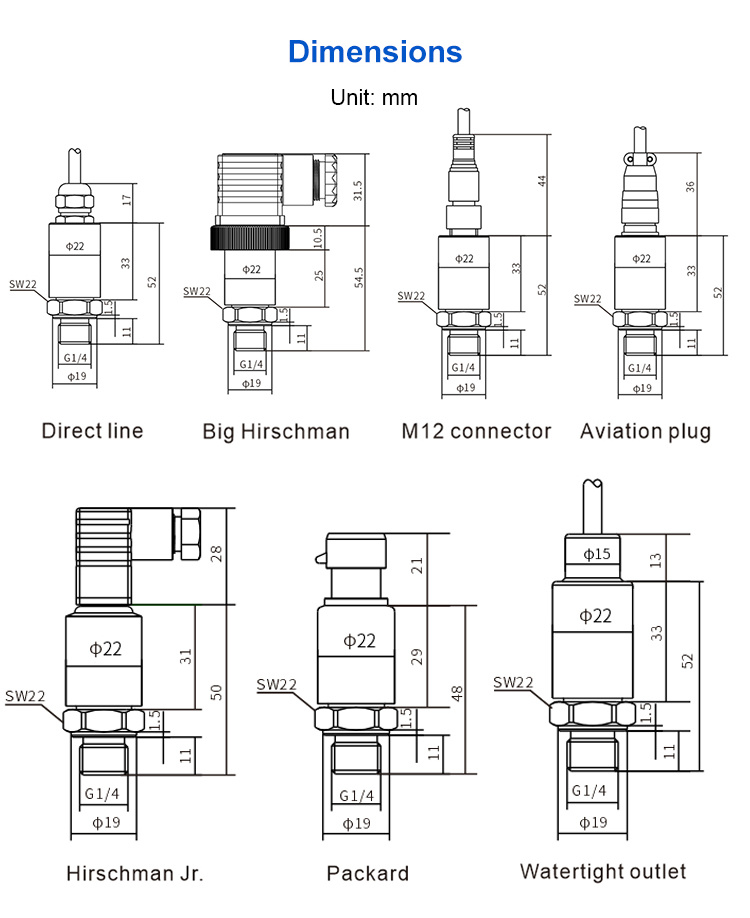

【Detailed description】





【Circuit wiring diagram】

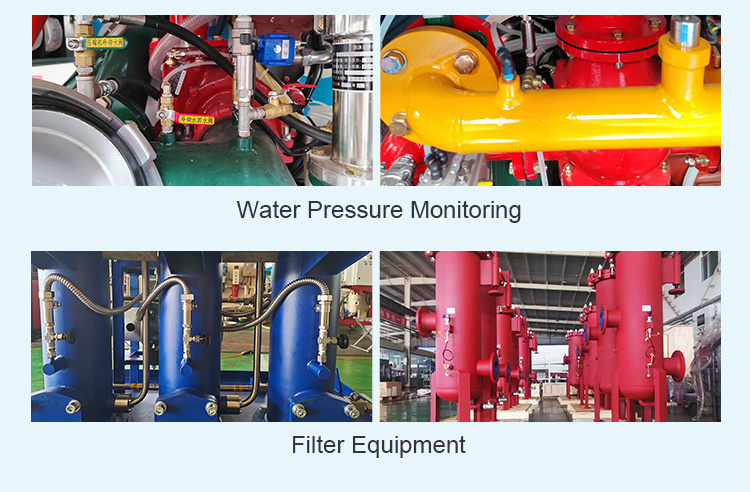

【Scope of application】







【Company strength display】
