FST800-2100 Industrial Pressure Transducer



Product features:

     ● Advanced micro fused silicon strain gauge                ● leak free elastomer structure

     ● Integrated temperature compensation                      ● Highly corrosion resistant SS housing

     ● Excellent shock, overload, & vibration resistance

     ● Independent temperature and pressure outputs



Applications:

     ● Industrial process and control                ● Automated detection

     ● Hydraulic and full-motion control          ● Water treatment system

     ● Industrial machinery manufacturing       ● Pumping stations

Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
FST800-2100
Quantity
-
+
Stock:
0
Introduction

​​​​​​Product Description



  • FST800-2100 Industrial  pressure sensor core adopts wide temperature range compensation, stainless steel structure, good media compatibility, high precision, high frequency response, good long-term stability, and reverse polarity protection.





【Features】



 ● Core body adopts wide temperature range compensation

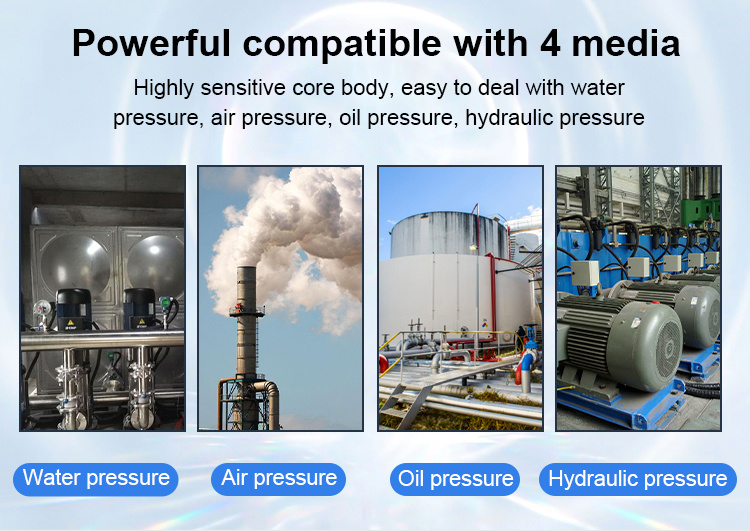

 ● Stainless steel structure, good media compatibility

 ● High precision, high frequency response, good long-term stability

 ● Reverse polarity protection





【Technical Parameters】



 Type of pressure  Gauge pressure, absolute pressure
 Pressure range  -100kPa…0kPa~20kPa…60MPa
 Output signal  4~20mA  0.5~4.5VDC  0~5VDC  0~10VDC
 Signal line specifications  2Wire  3Wire  3Wire  3Wire
 Supply voltage  9~30VDC  5VDC/9~30VDC  9~30VDC  15~30VDC
 Precision  ±0.5%FS  ±1%FS
 Long-term stability  ≤0.2%FS/year
 Overload pressure  200%FS
 Breaking pressure  300%FS

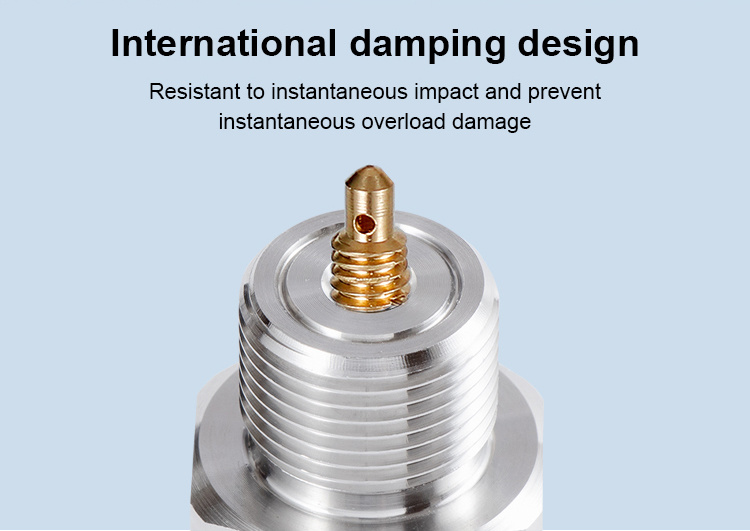

 Impact (11mS)  100g

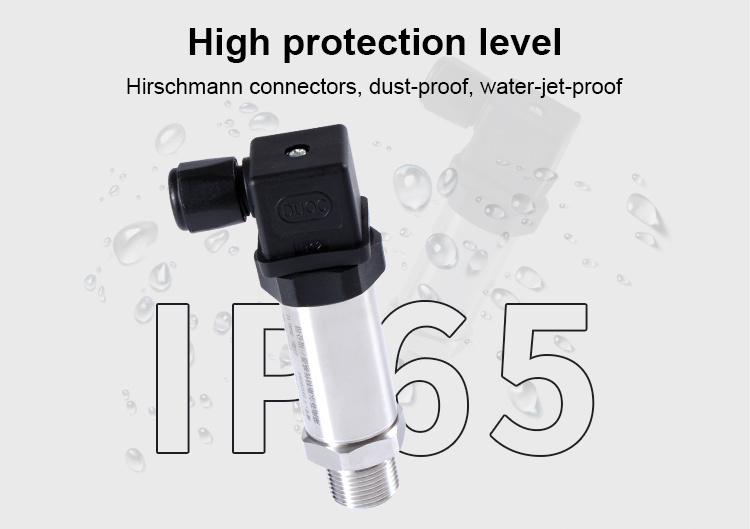

 Protection level  lP65
 Shell material  304 stainless steel
 Mechanical vibration  ±20g
 Storage temperature  -40~+125℃
 Operating temperature  -20~+85℃ Compensation temperature: -10~+70℃
 Pressure port  M20×1.5, G1/4, NPT1/4 can be equipped with other threads

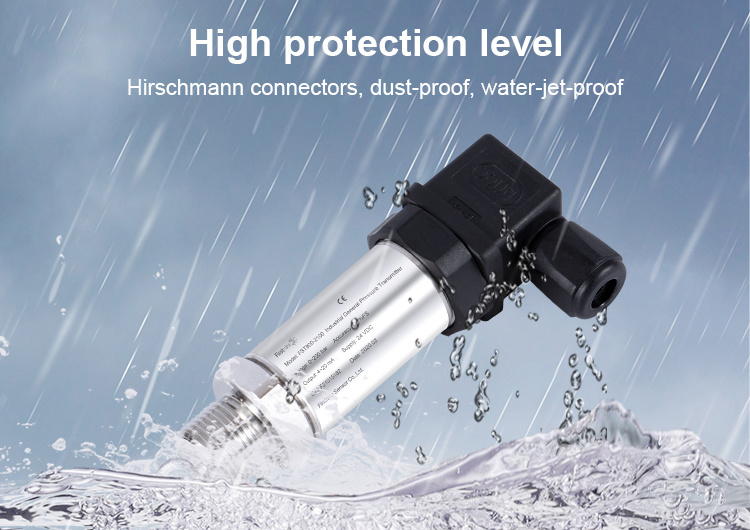

 Electrical connections  Direct lead, large Hessman, watertight connector (IP68)
 Remarks  Current type can be equipped with display (15~30VDC power supply)

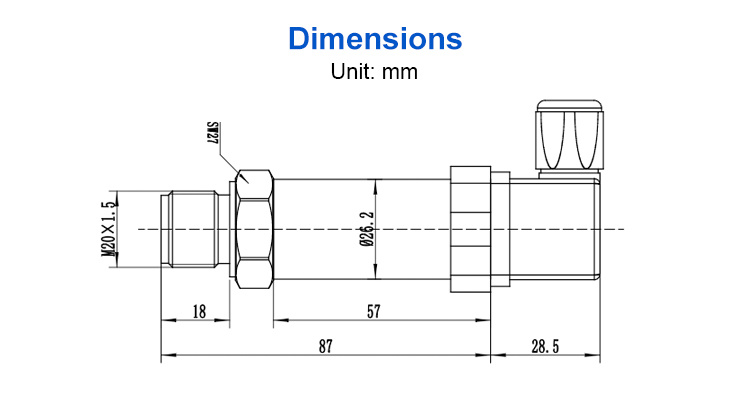

【Detailed description】







【Circuit wiring diagram】

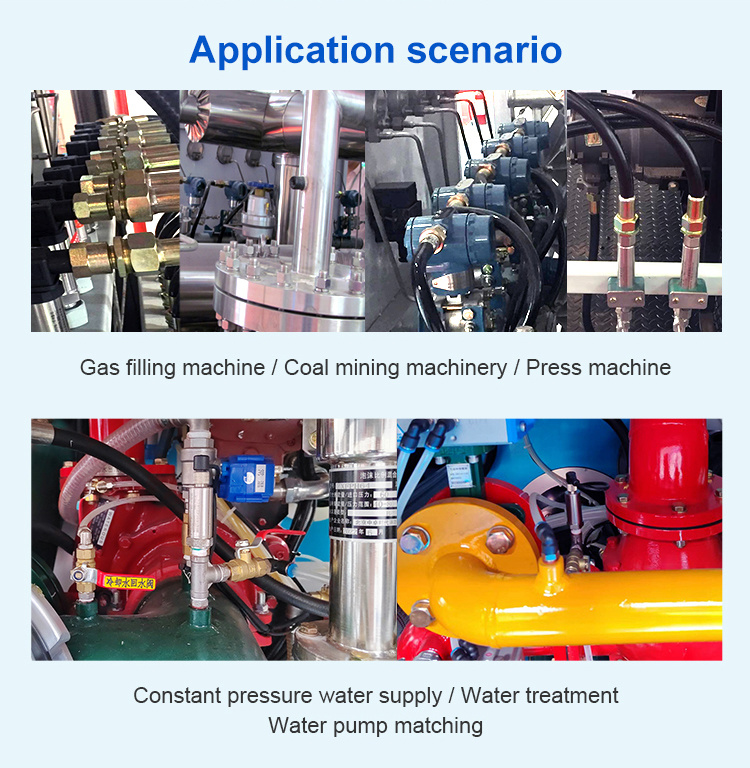

【Scope of application】

 ● Industrial process detection and control

 ● Hydraulic and pneumatic control system

 ● Automated detection system

 ● Pumping station and water treatment system

 ● Industrial machinery manufacturing







【Company strength display】



【FAQ】



Q: Are you manufacturer?
A: Yes, We are professional sensor manufacturer over 50 years! Our technical team has more than 20 engineers.


Q: Can you accept OEM service ?
A: Yes, we can put your company information and logo on our sensors.


Q: Can I be your distributor?
A: Yes, we are looking for distributors in oversea market.


Q: What is your lead time ?
A: Normally 7-10days. For quantity above100pcs, need extra 3-5 working days.


 Purchase guide
To recommend you the most suitable sensor, please tell us below information.
1. Working temperature: -40~+125 °C ?
2. Test range?
3. Output: 4-20mA , RS485 or others?
4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5?
5. Electrical connection: DIN43650, Packard, Direct lead?
6. Order quantity: ?
