【Product Description】
The FST800-1500 water pressure sensor is refined by a special process. FST800-1500 water pressure sensor sensitive detection material has the advantages of high elasticity, corrosion resistance, abrasion resistance, strong shock and vibration resistance, and good thermal stability. Water pumps, urban intelligent pipe networks, air compressors, refrigeration, water treatment industries, industrial process detection and control.
【Product Features】
● Easy installation and strong versatility;
● Highly efficient lightning protection, strong protection against RF and electromagnetic interference;
● Anti-surge and polarity reversal protection;
● High elasticity, wear resistance, impact resistance, vibration resistance and corrosion resistance;
● Advanced temperature digital compensation function;
【Technical Parameters】
| Measuring medium | Water |
| Pressure range (bar) | 10，16，25 |
| Signal output | 0.5~4.5VDC 4~20mA |
| Signal line specifications | 3 Wire 2 Wire |
| Supply voltage | 5VDC 9~30VDC |
| Precision | ±1%FS |
| Total error band | ±3%FS |

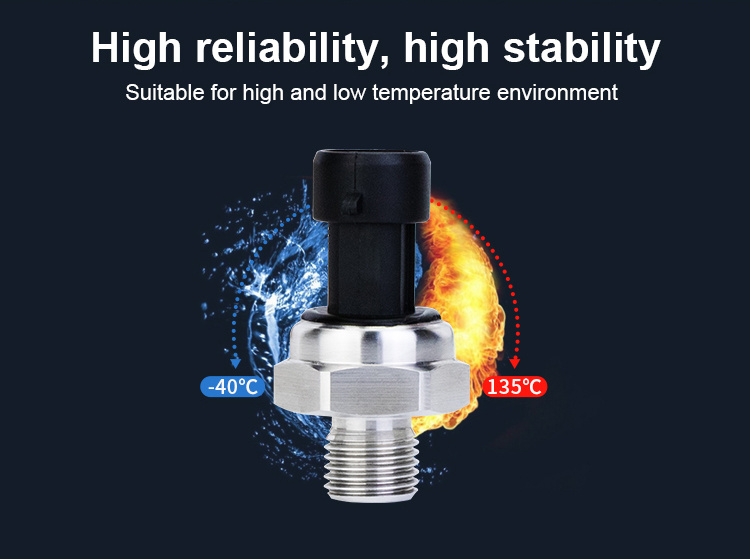

| Operating temperature | -40~+135℃ |
| Storage temperature | -40~+150℃ |
| Overload pressure | 200%FS |
| Breaking pressure | 300%FS |
| Vibration | 11g(50~2000Hz) |
| Supply current | 10mA (maximum) |
| Output response | 3mS |
| Service life | 5 million full-scale cycles |
| Short circuit protection | Have |
| Pressure port | G1/4,NPT1/4,M20x1.5,M12x1.5,NPT1/8 |
| Electrical connections | Packard connector |
| Load Resistance | 10KΩ (typical) |
| Protection level | IP65 |
| Overvoltage protection | 16VDC (5V power supply) |

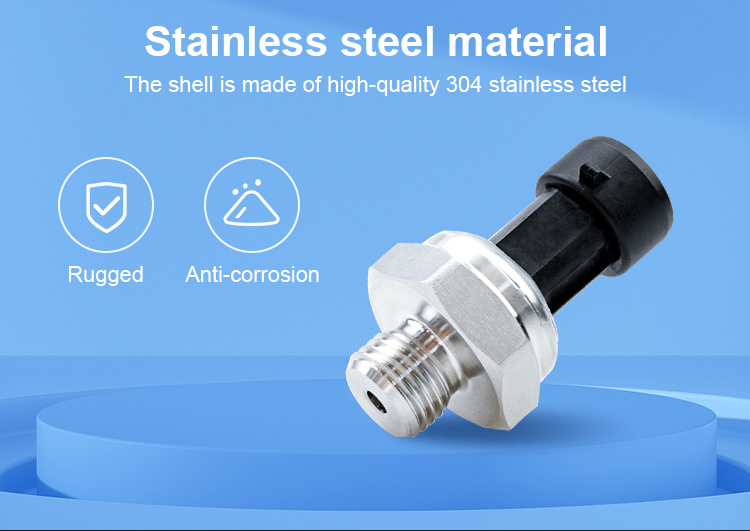

| Material | 304 stainless steel |
| Reverse voltage | -14VDC (5V power supply) |

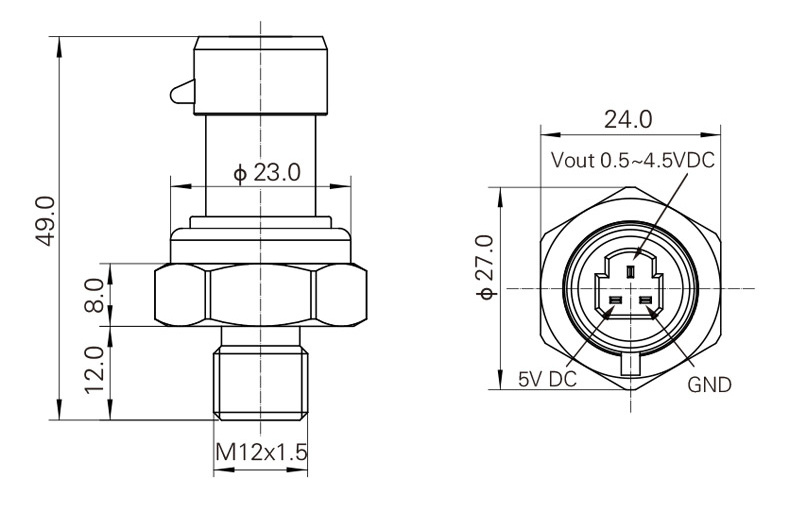

【External structure】
【Detailed description】
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor
FST800-1500 Water Pressure Sensor
【Product Features】
● Easy installation and strong versatility;
● Highly efficient lightning protection, strong protection against RF and electromagnetic interference;
● Anti-surge and polarity reversal protection;
● High elasticity, wear resistance, impact resistance, vibration resistance and corrosion resistance;
● Advanced temperature digital compensation function;
【Application Scope】

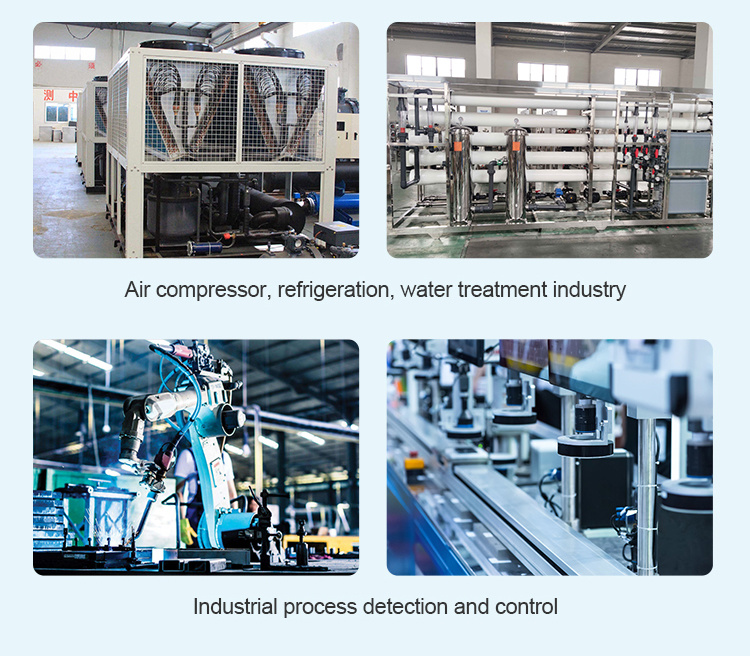

Water pressure sensors are widely used in water pumps, urban intelligent pipe networks, water treatment and other industries.
