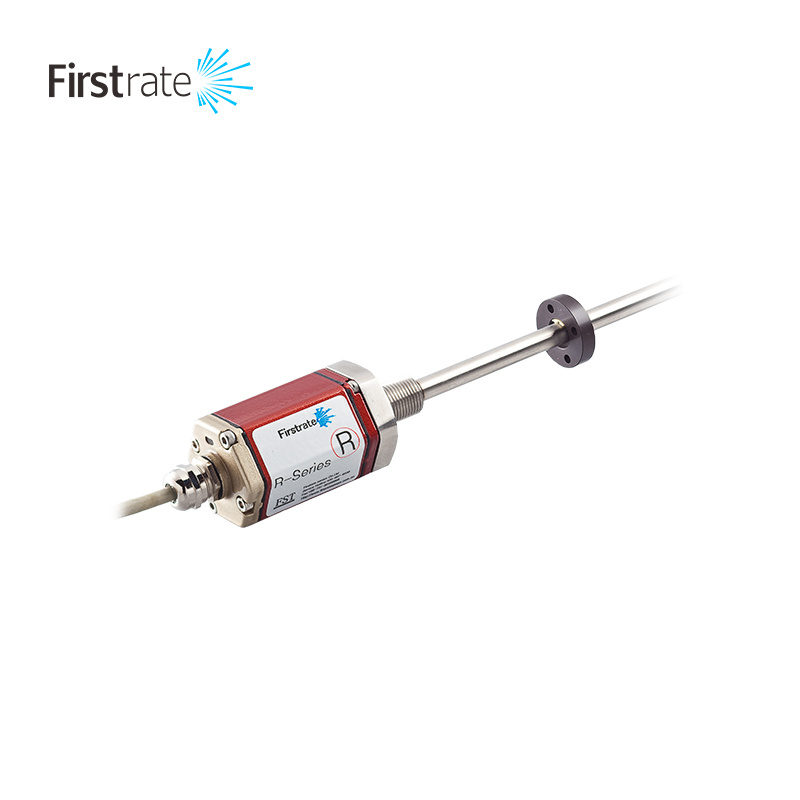

【Product Overview】
Explosion-proof magnetostrictive displacement sensor, national explosion-proof standard Exd II CT6 Gb, the sensor uses high-tech materials and advanced electronic processing technology, so it can be used in high temperature, high pressure and high vibration environments. The sensor output signal is an absolute displacement value. Even if the power is interrupted or reconnected, the data will not be lost, and there is no need to reset to zero. Since the sensitive element is non-contact, even if the detection is repeated continuously, it will not cause any wear to the sensor, which can greatly improve the reliability and service life of the detection.
【Product Features】
● National explosion-proof standard Exd II CT6 Gb
● Sturdy and reliable, fully enclosed design
● Linear measurement, absolute value output
● Non-contact measurement, no wear
● Analog signal or digital signal output
【Application Range】
● Metallurgical mining equipment, petrochemical industry
● Engineering machinery, rubber machinery
● Injection molding machine, new energy
Technical indicators
Measuring range | 0～50…2000mm | ||
Voltage signal | 0～5VDC 5～0VDC 0～10VDC 10～0VDC (minimum load: >5KΩ) | ||
Current signal | 4～20mA 20～4mA (minimum/large load: 0/500Ω) | ||
Digital signal | RS485 (MODBUS) SSI (Gray (Gray code), Binary (binary) ) | ||
Data length | 24, 25, 26 (24 data bits, 25th parity bit, 26 alarm bits (0)) | ||
Communication Interface | Standard EIA-RS485/RS422 | ||
SSI baud rate | 100KBd——1000KBd optional | ||
Resolution | 16 bit D/A | ||
Non-linearity
| Range≤100mm | 1%～0.5%FS | |
100<range≤300mm | 0.5%～0.1%FS | ||
300<range≤2000mm | 0.1%～0.05%FS | ||
Electrical Interface | Straight out cable | ||
Supply voltage | 24VDC(-15%～+20%) | ||
Operating temperature | -40~+85℃ | ||
Polarity protection | -30VDC max | ||
Overpressure protection | 33VDC max | ||
Material
| Rod | 316 stainless steel | |
Electronic warehouse | 304 stainless steel | ||

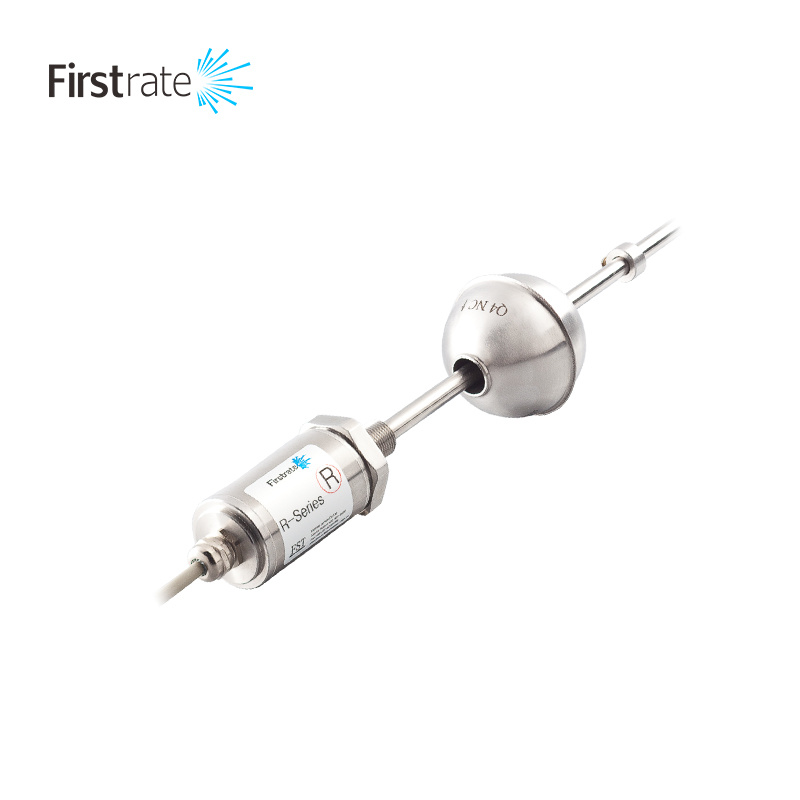

Position magnetic ring | Ring magnet, conventional float, corrosion-resistant float | ||
Explosion-proof grade | ExdII CT6 Gb | ||
Degree of protection | IP67 | ||
