【Product features】
♦ Robust, reliable, oil-resistant and anti-fouling; linear measurement, absolute value output;

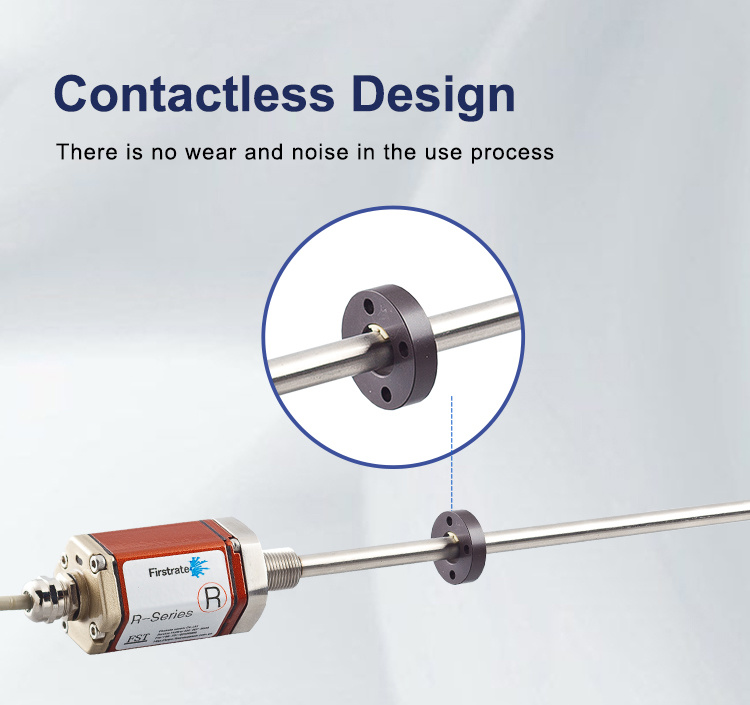

♦ LED indicator diagnosis function; non-contact measurement, no wear;
modular, universal design, easy maintenance;
♦ low power consumption, low temperature drift.
【Technical Parameters】
| Testing Data | Position |
| Testing Range ( mm ) | 300,400,500,600,700,800,900,1000 |
| Output Signal | 4~20mA |
| Supply voltage | 24VDC (-15% ~ + 20%) |
| Working current | <70mA |
| Polarity protection | Overpressure protection up to -30VDC |
| Maximum | 33VDC |
| Resolution | 16-bit D / A |
| Nonlinearity | ± 0.1% FS ± 0.05% FS |
| Repeatability | ± 0.008% FS |
| Update time | Operating temperature analog signal 0.5mS (travel <1000mm) |
| Working temperature | -40 ~ +85 ℃ |
| Storage temperature | -40 ~ +100 ℃ |
| Temperature effect | <0.007% FS / ℃ |
| Humidity and dew point humidity | 90% RH, no condensation |
| Fault indication | LED diagnosis function |
| Material rod | stainless steel |
| Electronic warehouse | aluminum alloy |
| Rod pressure | ≤ 34MPa |
| Position Magnetic Ring | Magnetic ring |

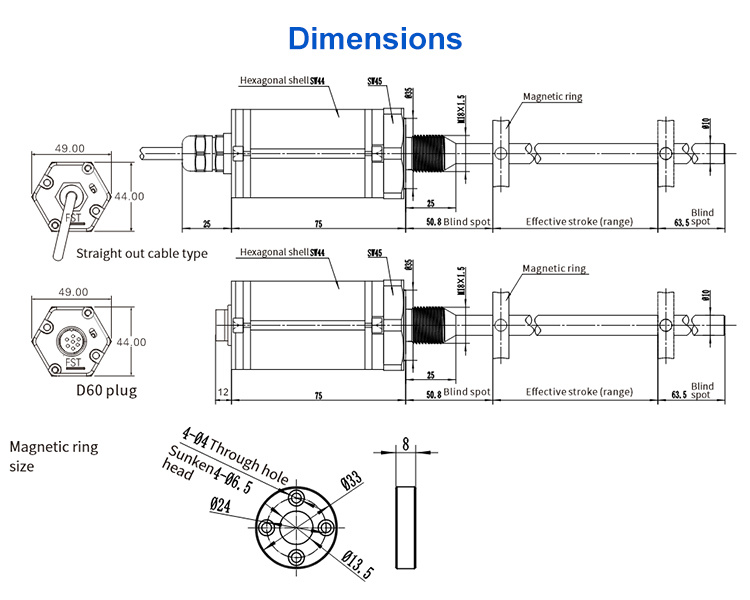

| Installation form | M18*1.5 screw thread |
| Electrical interface | straight out of the cable |

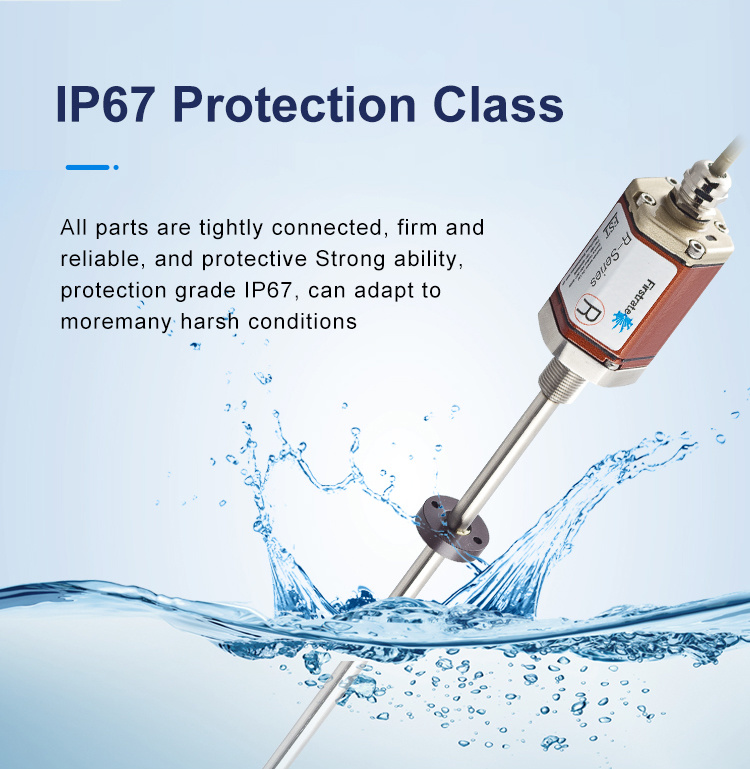

| Protection class | IP67 |
【Detailed description】
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor
FST400-1000 Pressure-resistant Outer Tube Magnetostrictive Displacement Sensor
Product model: FST400-1000
Application scope:
♦ hydraulic control system, piston position, fan pitch angle adjustment brake control system,
♦ rail distance detection and other equipment requiring high precision of mechanical positioning and displacement detection.
