FST400-3000 Built In Cylinder Magnetostrictive Displacement Sensor

Product model:  FST400-3000

Product features:

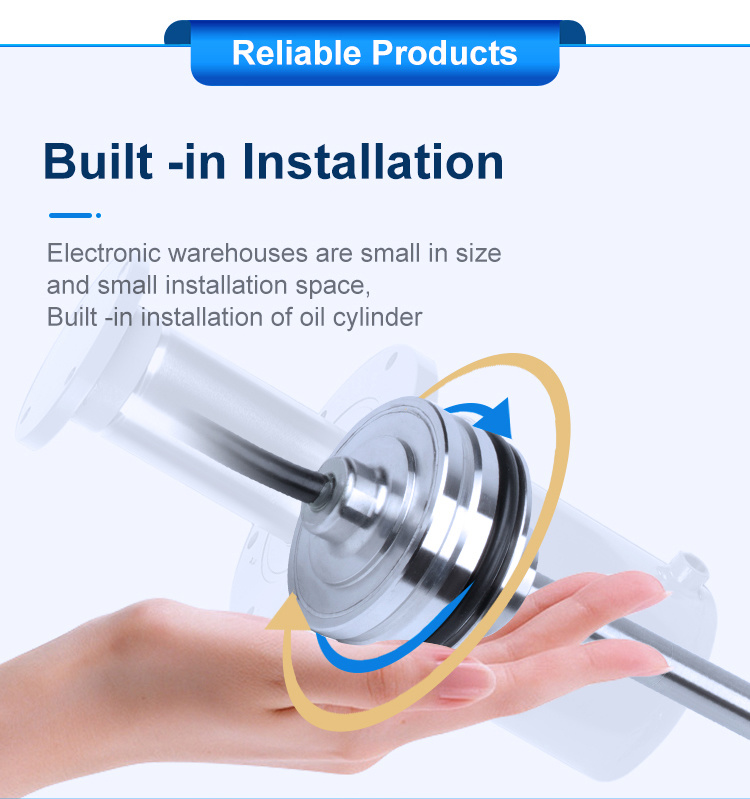

 ●  Compact structure, built-in cylinder installation ;
 ●  Robust and reliable, oil and dirt resistant ;
 ●  Linear measurement, absolute value output ;

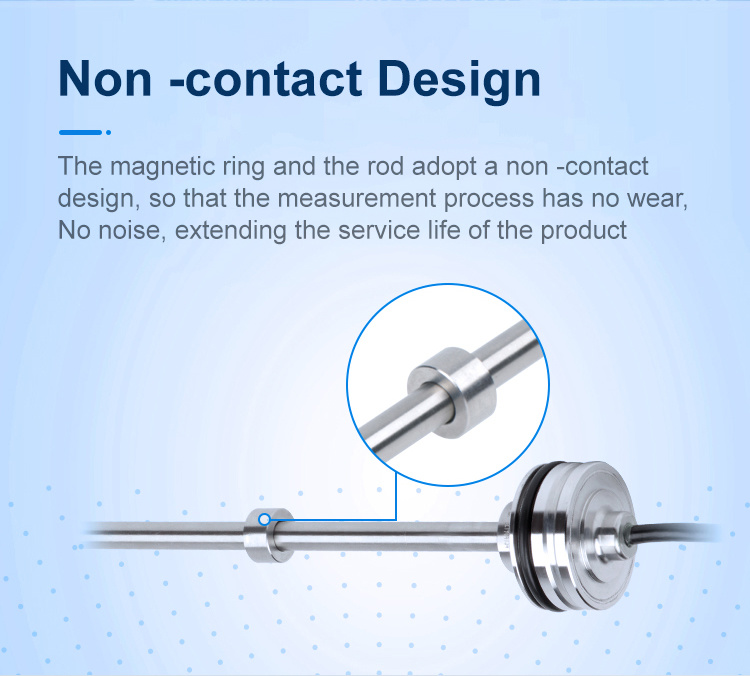

 ●  Non-contact design, no wear ;
 ●  High precision and high resolution.

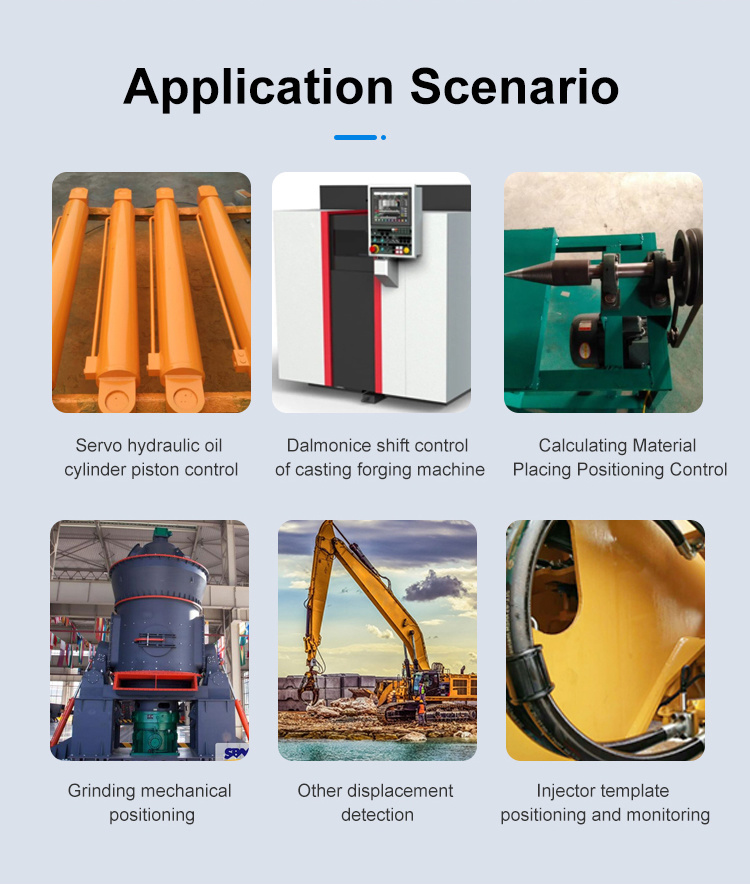

Applications:

 ●  Servo hydraulic cylinder piston position feedback or preset ;
 ●  Displacement control of casting and forging machine tools;
 ●  Timber processing positioning control;
 ●  Grinding mechanical position feedback or preset;
 ●  Injection molding machine template positioning and monitoring;
 ●  Other mechanical positioning and displacement detection.

Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
FST400-3000
Quantity
-
+
Stock:
0
Introduction

【Technical Parameters】


 Measuring range  0~50…2000mm
 Output signal  0~5/5~0VDC/0~10V/10~0VDC、SSI/RS232/RS485
 Supply voltage  24VDC(-15%~+20%)
 Working current  <70mA
 Polarity protection  Max -30VDC
 Resolution  16-bit D/A
 Overpressure protection  33VDC max
 Operating temperature  -40~+85℃
 Storage temperature  -40~+100℃
 Temperature effect  <0.007%FS/℃
 Repeatability  ±0.008%FS
 Humidity/Dew Point  Humidity 90%RH, no condensation
 Position ring  Ring Magnetic Ring
 Measuring rod pressure  ≤34MPa
 Electrical Interface  Straight out cable
 Protection class  IP67

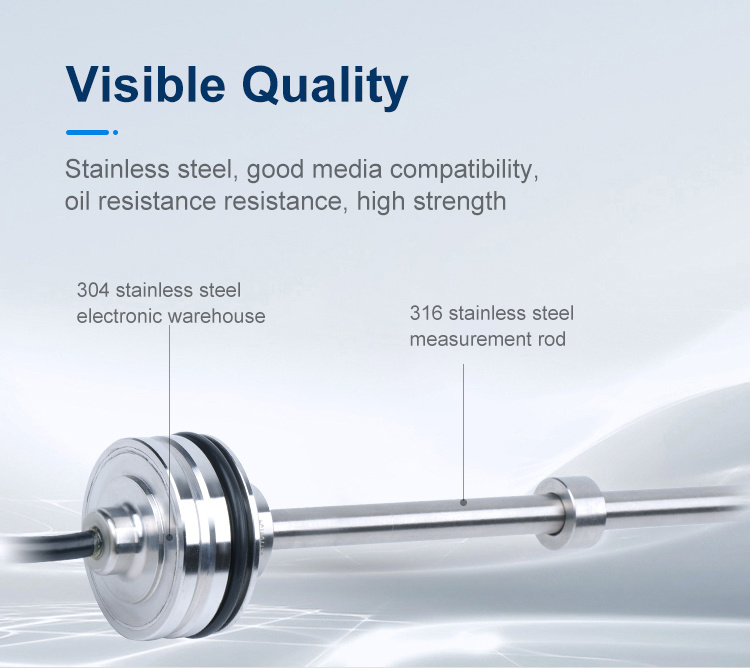

 Rod Material  Measuring rod: 316 stainless steel; electronic compartment: 304 stainless steel
 Nonlinearity  ±0.05%FS、±0.1%FS、±0.3%FS、±0.5%FS
 Update time  Analog signal 0.5mS (travel<1000mm), 1.0mS (travel<2000mm)





【Detailed description】








Packaging & Shipping



【Company strength】



Keyword:
Magnetostrictive Displacement Sensor
We could not find any corresponding parameters, please add them to the properties table
