【Product Overview】
FST700-201 capacitive level transmitter uses a coaxial container. The capacitor consists of two coaxial cylindrical plates with inner and outer electrodes. When oil (liquid) enters the container, it causes the capacitance value between the sensor housing (outer electrode) and the sensing electrode (inner electrode) to change, and outputs standard current, voltage or digital signals, which are suitable for the measurement of various non-conductive liquids.
【Product Features】
● Accurate linear output
● Strong anti-interference and anti-vibration performance
● Anti-surge, overcurrent, and polarity circuit design
● Suitable for the measurement of various non-conductive liquids
【Application Range】
● Industrial process level measurement and control
● Automobile fuel tank, tanker, oil depot oil level measurement
● Measurement of other non-conductive liquids
Technical indicators
Output signal | (4~20) mA | (0~5) V | (0~10) V |
Signal line specifications | 2 Wire | 3 Wire | 3 Wire |
Supply voltage (DC) | 9~30V | 9~30V | 15~30V |
Accuracy | ±0.5%FS(≥600mm) ±1%FS(≥400mm) | ||
Zero temperature drift | ±0.05%FS/℃ | ||
Sensitivity temperature drift | ±0.05%FS/℃ | ||
Long term stability (1 year) | ±0.1%FS | ||
Ambient temperature | -40℃~+85℃ | ||
Storage temperature | -40℃~+125℃ | ||
Electrical connections | Direct lead, M12 | ||
Threaded connection | M20X1.5, G1/2 or others | ||
Detector temperature resistance | -50℃~+200℃ | ||
Protection level | IP65 | ||
Measuring medium | Various non-conductive liquid level media such as gasoline and diesel oil | ||
Note: Specific parameters and wiring definitions are subject to the actual product.

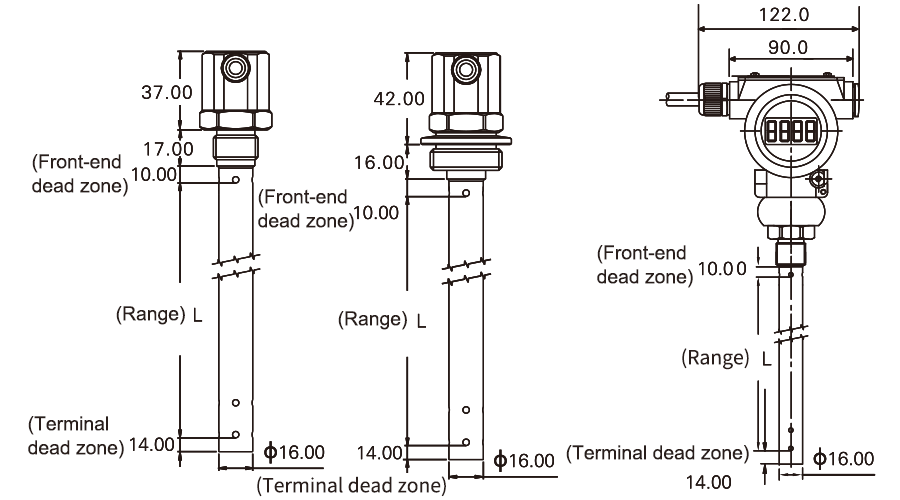

Product dimensions
