【Product Overview】

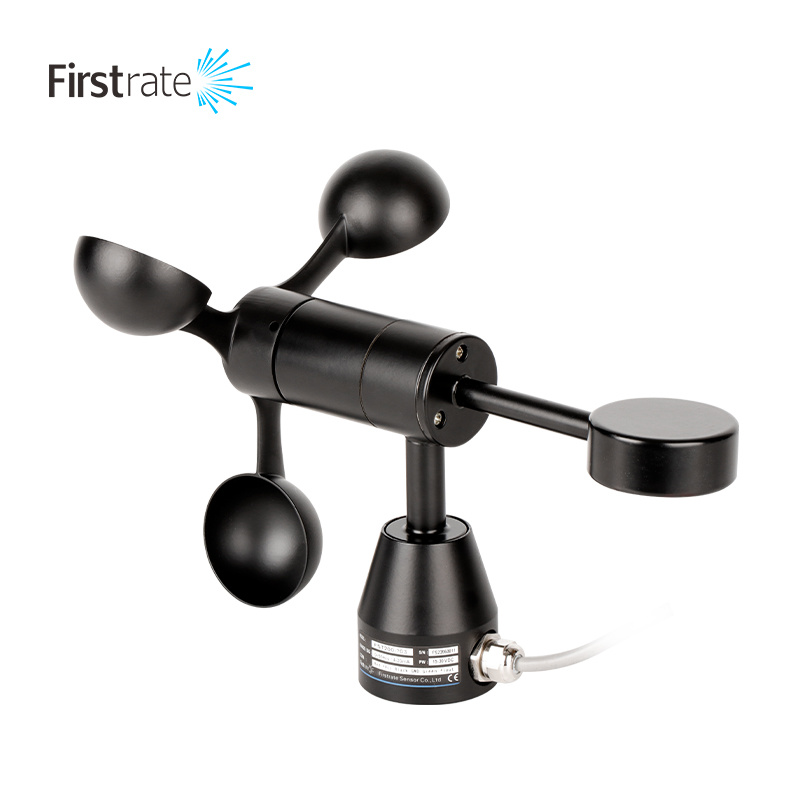

The pendulum wind speed sensor is developed for large-scale lifting and cantilever mechanical equipment. It is an intelligent wind speed sensing device with automatic vertical angle adjustment. The wind cup is made of high-quality alloy aluminum, with high mechanical strength and strong wind resistance. It also uses resin spraying technology and is rust-free when installed outdoors. It is mainly suitable for crawler cranes, automobile cranes, and outdoor equipment with large shaking, bumps, and fluctuations. It can collect the actual wind speed of the external environment in real time and output the corresponding signal.
【Product Features】
● Developed based on the principle of non-contact magnetic sensing measurement
● Built-in high-performance sensor, the collected data is highly accurate and reliable
● The pendulum wind speed sensor adopts a full metal shell with good corrosion resistance and strong wind resistance
● The circuit protection adopts a fault-tolerant design, and the sensor will not be damaged in the case of wrong wiring
● Comply with CE EMC standards, multi-level lightning protection and surge protection design
【Application Scope】
It can measure sixteen directions in indoor and outdoor environments, including east, west, south, north, southeast, southwest, northeast, and northwest. It can be widely used in wind speed and wind direction measurement for wind speed monitoring in factories, power, ports, mines, wind turbines, large mechanical equipment, etc.
【Product Features】
Operating Voltage | 12-30VDC, 5V/24V (pulse) |
Start wind speed | ≥0.5m/s |
Precision | ±0.5m/s(<5m/s);±3%FS(≥5m/s) |
Operating temperature | -20°C~+85°C |
Working humidity | 0%~95% (non-condensing) |
The main material | Aluminum alloy/polyester coating |
Measuring range | 0~50m/s、0~30m/s |
Wind strength | ＞70m/s 30min |
Degree of protection | IP65 |
Static protection | 15KV |
Output signal | 4~20mA, 0~5VDC, 0~10VDC, pulse, RS485 (Modbus) |
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor

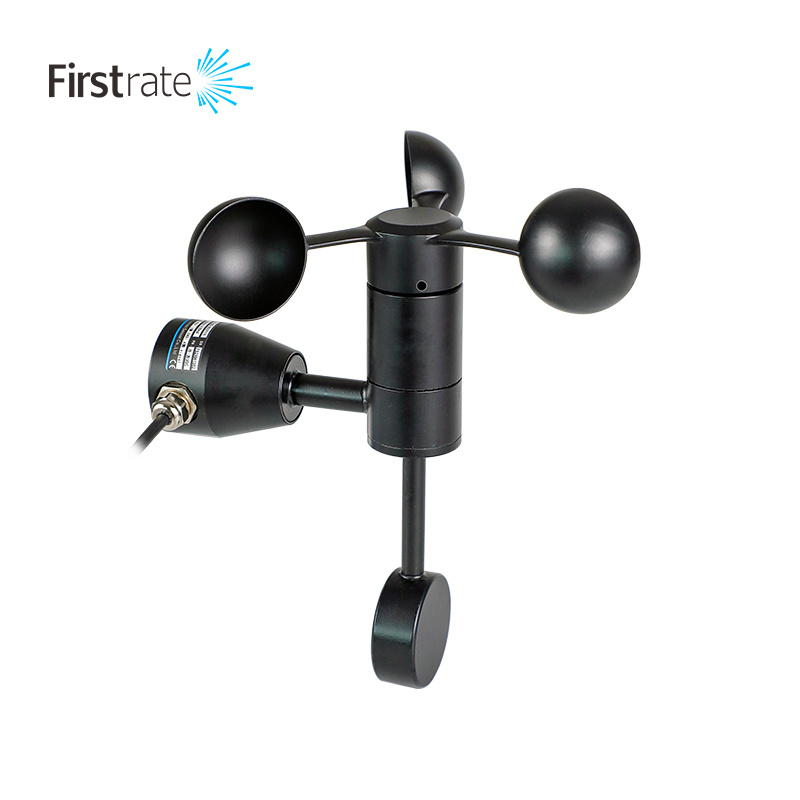

FST200-203 Pendulum Wind Speed Sensor for Wind Turbine
【Product Features】
● Developed based on the principle of non-contact magnetic sensing measurement
● Built-in high-performance sensor, the collected data is highly accurate and reliable
● The pendulum wind speed sensor adopts a full metal shell with good corrosion resistance and strong wind resistance
● The circuit protection adopts a fault-tolerant design, and the sensor will not be damaged in the case of wrong wiring
● Comply with CE EMC standards, multi-level lightning protection and surge protection design
【Application Scope】
It can measure sixteen directions in indoor and outdoor environments, including east, west, south, north, southeast, southwest, northeast, and northwest. It can be widely used in wind speed and wind direction measurement for wind speed monitoring in factories, power, ports, mines, wind turbines, large mechanical equipment, etc.
