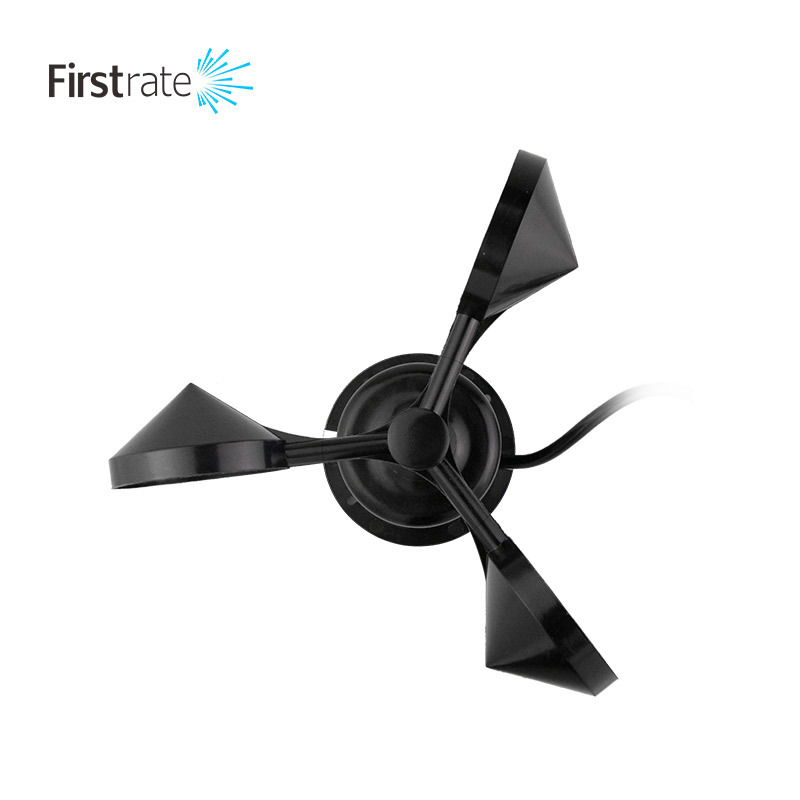

FST200-1002 Plastic Wind Speed Sensor

Product model: FST200-1002



♦ Non-contact magnetic sensor measuring principle, high accuracy and reliability;
♦ strong wind resistance, strong corrosion resistance;
♦ Wide wind speed measurement range, with low starting wind speed;
♦ Compact design, automatic heating , low temperature defrosting;
♦ Sensor circuit protection with fault-tolerant capability;
♦ Meet CE EMC standard, multi-levels for anti-lightning anti-surge design


Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
FST200-1002
Quantity
-
+
Stock:
0
Introduction

Product Description



 Hot Sale FST200-1002 Plastic RS485 Modubus Cup Wind Speed Sensor

FST200-1002 wind speed sensor produced by our company is a wind speed sensor with high reliability and high performance. This series of sensors can stably and accurately collect environmental wind speed signals, and is suitable for high-altitude operations, construction machinery, port machinery and other occasions.


FST200-1002 wind speed sensor has a built-in digital circuit with strong anti-radio frequency, anti-electromagnetic interference and anti-lightning surge. The circuit of the wind speed sensor collects the electric signal that the speed output of the wind cup is linearly related to the wind speed of the environment; the main structural parts of the product are made of PC+nylon mixed materials, and the surface is treated. The product has good waterproof and anti-aging capabilities. The components are all sealed, which can effectively prevent the intrusion of water, salt mist and sand dust.




【Technical Parameters】



 Operating Voltage  12-30VDC
 Output signal  4-20mA,0-5VDC,Rs485
 Measuring range  0.5~50m/S
 Aerodynamic wind speed  ≤0.5m/s
 Precision  ±0.5m/S(<5m/s);±3%FS(≥5m/s)
 Operating temperature  -20°C~+85°C, humidity 0%~95% (no condensation)
 Material  Polycarbonate
 Protection level  IP65



【Features】

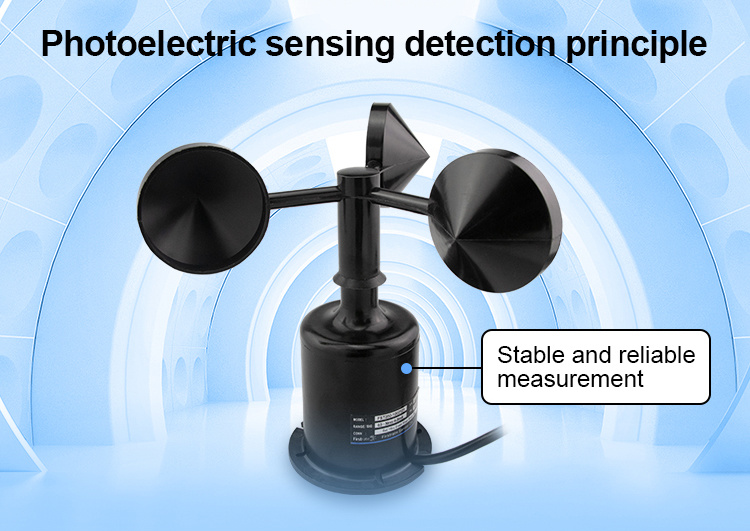

◇ Developed based on the principle of non-contact magnetic sensor measurement.

◇ Built-in high-performance sensor, the collected data has high precision and high reliability.

◇ Wide wind speed measurement range, low starting wind speed.

◇ The wind speed sensor adopts PC+nylon shell, which has good corrosion resistance and strong wind resistance.

◇ The circuit protection adopts a fault-tolerant design, and the sensor will not be damaged in the case of wrong wiring.

◇ Comply with CE EMC standard, multi-level lightning protection and anti-surge design.

◇ Can work in a wide voltage range of 12-30VDC

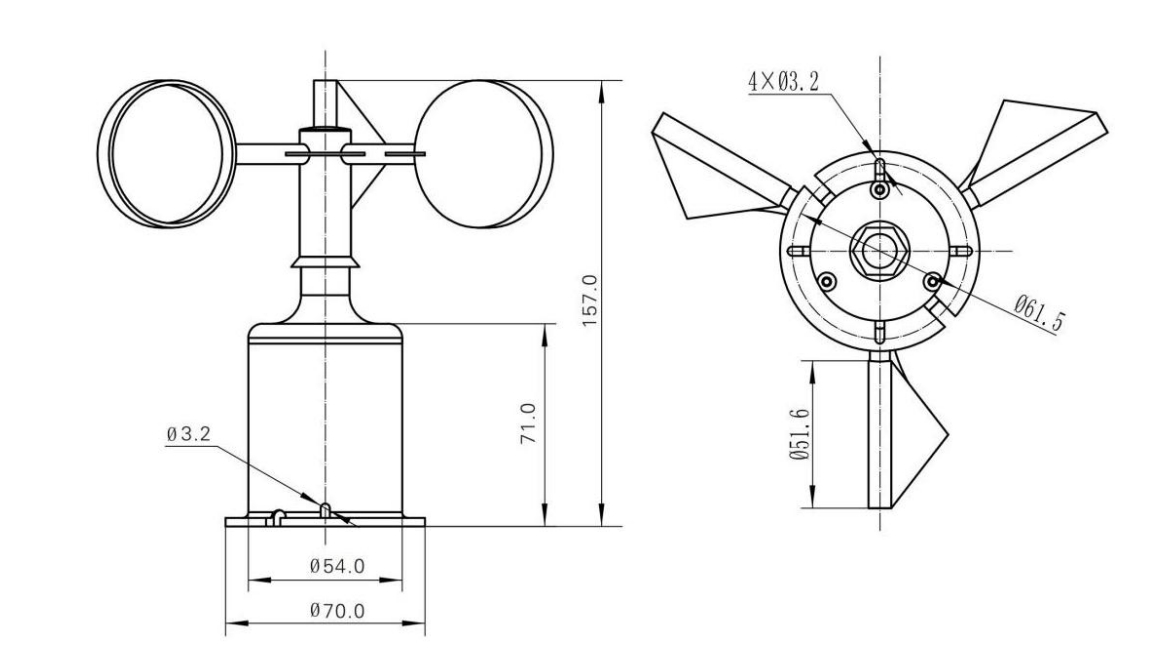

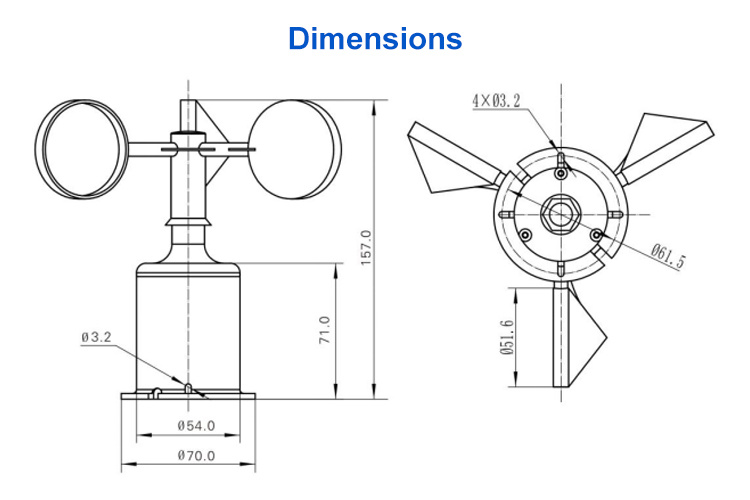

【Shape structure and electrical connection】





FST200-1002





【Detailed description】


Scope of application
