【Product description】
FST100-2006 soil temperature and humidity sensor is a combination of soil moisture and soil temperature sensors to facilitate the measurement and research of soil moisture and soil temperature. The product has high precision, fast response and stable output. It is less affected by the salt content of the soil and is suitable for various soil qualities. Can be buried in the soil for a long time, resistant to long-term electrolysis, corrosion resistance, vacuum potting, waterproof and rust-proof.
【Features】
● Small size design, easy to carry, simple installation, operation and maintenance
● Good airtightness, can be buried in different depths of soil for a long time
● High measurement accuracy and reliable performance
● Fast response speed and high data transmission efficiency
【Scope of application】
● Water-saving agricultural irrigation, weather monitoring
● Greenhouses, flowers and vegetables, grass pastures, soil testing
● Fields that need to measure soil moisture, such as plant cultivation and scientific experiments
【Technical Parameters】
| Product number | FST100-2006 |
| Measuring range | Temperature: -40℃~+80℃ Humidity: 0%RH~100% |
| Output signal | RS485 output (Modbus protocol) 4~20mA with DTU, wireless transmission |
| Supply voltage | 10~30VDC (4~20mA) 5~24VDC (RS485) |
| Maximum power consumption | Digital signal: 0.4W Analog signal: 1.2W |
| Precision | Temperature: ±5%℃ (25℃) Humidity: ±3% (5%~95,25℃) |
| Operating temperature | -40~80℃ |
| Long-term stability (one year) | Temperature: ≤0.1℃/year Humidity: ≤0.1%RH/year |
| Response time | Temperature: ≤15/s (1m/s wind speed) Humidity: ≤5/s (1m/s) |
| Device address | 1~255 can be set, the default is 1 |
| Device baud rate | 2400/4800/9600 optional, default 4800 |
| Byte format | 1 start bit, 8 data bits, one stop bit, no parity |
| Electrical connections | Direct lead |
【Shape structure and wiring method】
【Detailed description】
【1. Six product advantages】

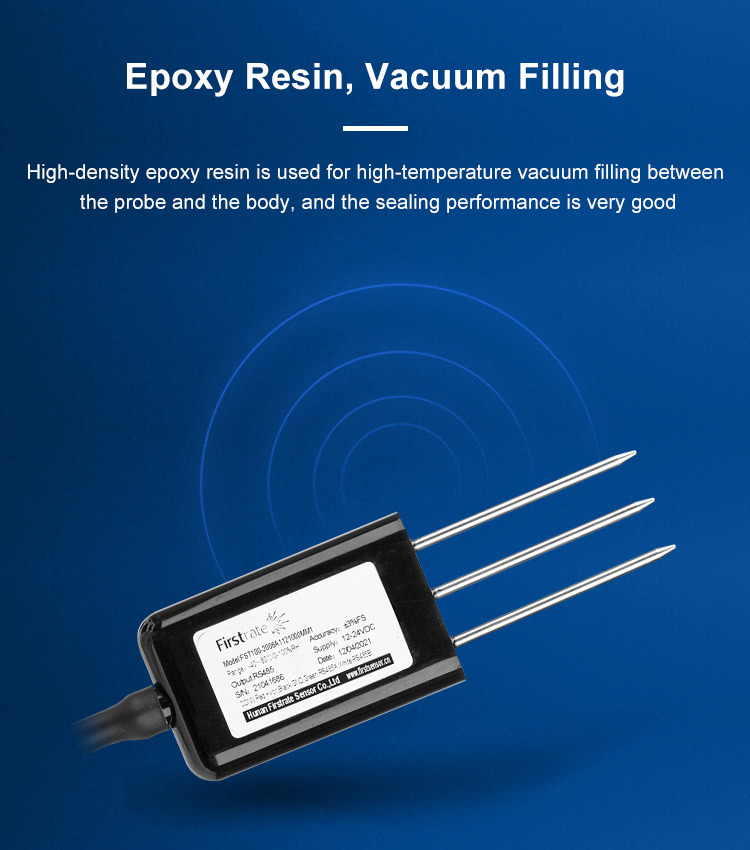

【2. Epoxy resin,vacuum filling】
【3. Imported chip,Accurate measurement】

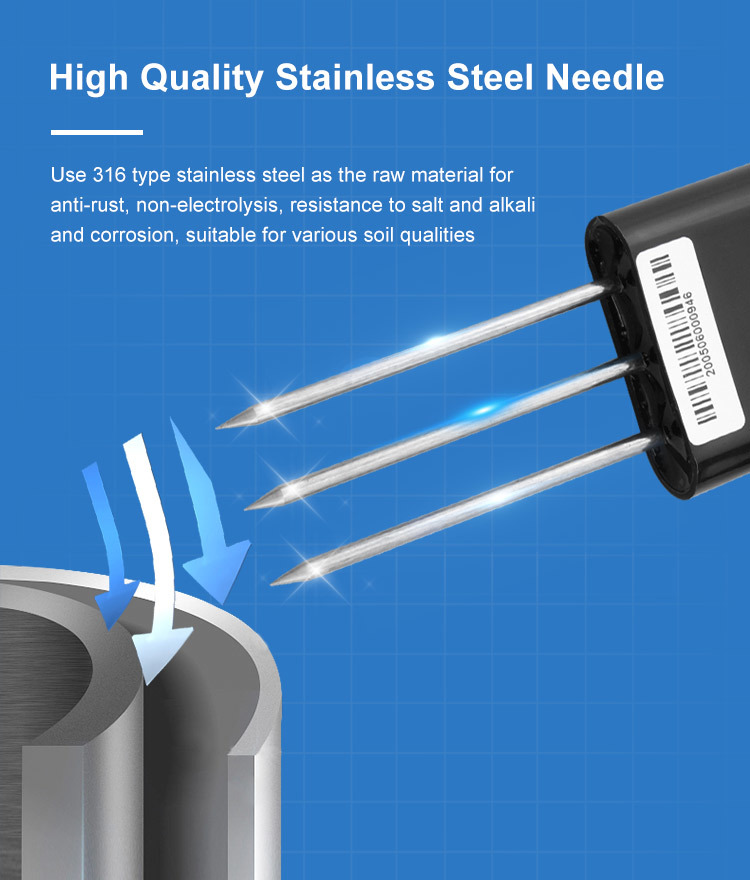

【4. High quality stainless steel needle】
【5. IP68 grade,waterproof and anticorrosive】
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor

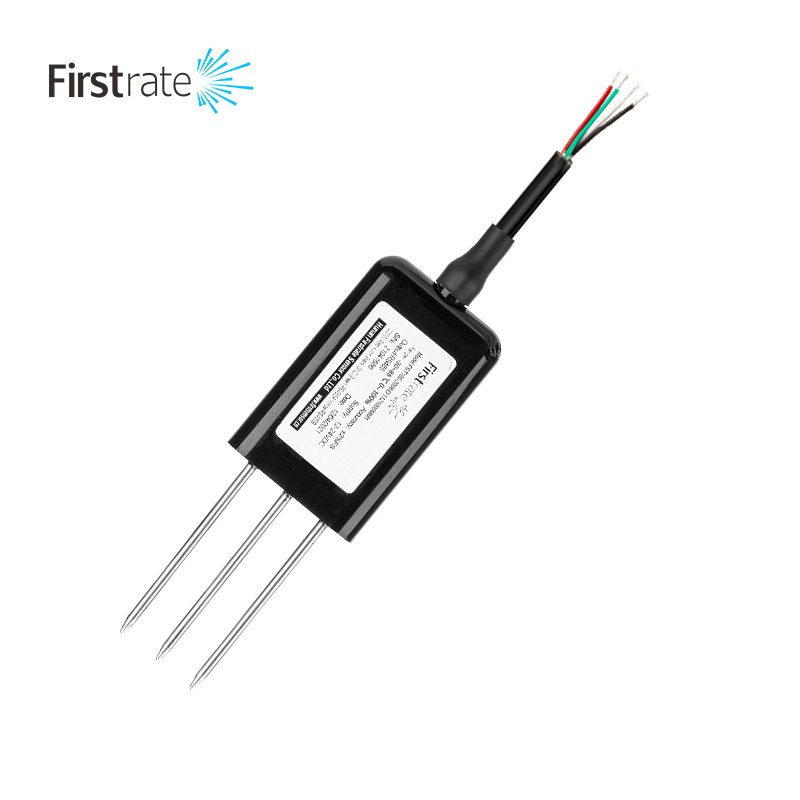

FST100-2006 Soil Temperature and Humidity Sensor
Product features:
- Small size design, easy to carry, simple installation
- operation and maintenance; good airtightness
- can be buried in the soil of different depths for a long time;
- high measurement accuracy,reliable performance;
- fast response speed, high data transmission efficiency.
