【Product description】
FST100-2006A soil temperature and humidity + conductivity sensor is suitable for water-saving agricultural irrigation, weather monitoring, environmental monitoring, greenhouses, flowers and vegetables, grassland and pastures, soil speed measurement, plant cultivation, scientific experiments, etc. soil temperature, humidity and salinity.
【Features】
● Real-time temperature, humidity and salinity monitoring function, which can measure the temperature
and salt content of soil at different depths
● Good sealing, can be directly buried in soil, and is not corroded
● High measurement accuracy, reliable performance, fast response speed, and high data transmission
efficiency
● Less affected by quality, wide range of applications
【Scope of application】
● Water-saving agricultural irrigation, weather monitoring
● Greenhouses, flowers and vegetables, grass pastures, soil testing
● Fields that require soil moisture measurement, such as plant cultivation and scientific experiments
【Technical Parameters】
| Measurement parameters | Soil temperature, soil volume water content, soil conductivity (EC value) |
| Temperature range | −30~85℃ |
| Water content range | 0~100% |
| Salt range | 0~20mS/cm |
| Measurement accuracy | Temperature: ±0.5℃; Humidity: ±3% (0~50%), ±5% (51~100); Conductivity: ±3% |
| Resolution | Temperature: ±0.1℃; Humidity: ±0.1% (0~50%), ±1% (51~100); Conductivity: 10us/cm |
| Output signal | Rs485 (standard Modbus-RTU protocol, device default address: 01) |
| Supply voltage | 12~24VDC |
| Scope of work | −40℃~80℃ |
| Stable schedule | 3 seconds after power on |
| Response time | ≤1 second |
| Sealing material | ABS engineering plastic, epoxy resin |
| Probe Length | 55mm |
| Probe diameter | 3mm |
| Electrical connection | Direct lead |

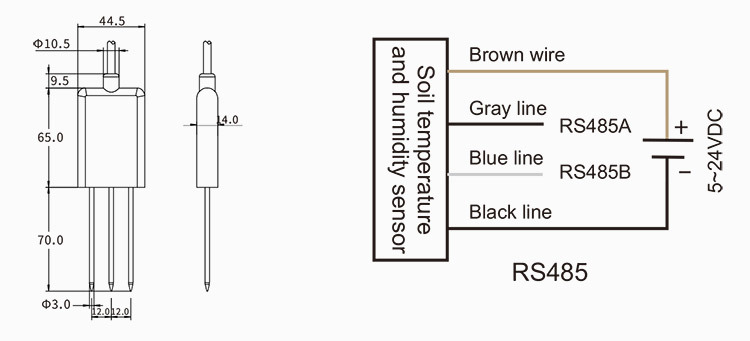

【External structure】
【Detailed description】
【1. Six product advantages】
【2. Epoxy resin,vacuum filling】
【3. Imported chip,accurate measurement】
【4. High quality stainless steel needle】

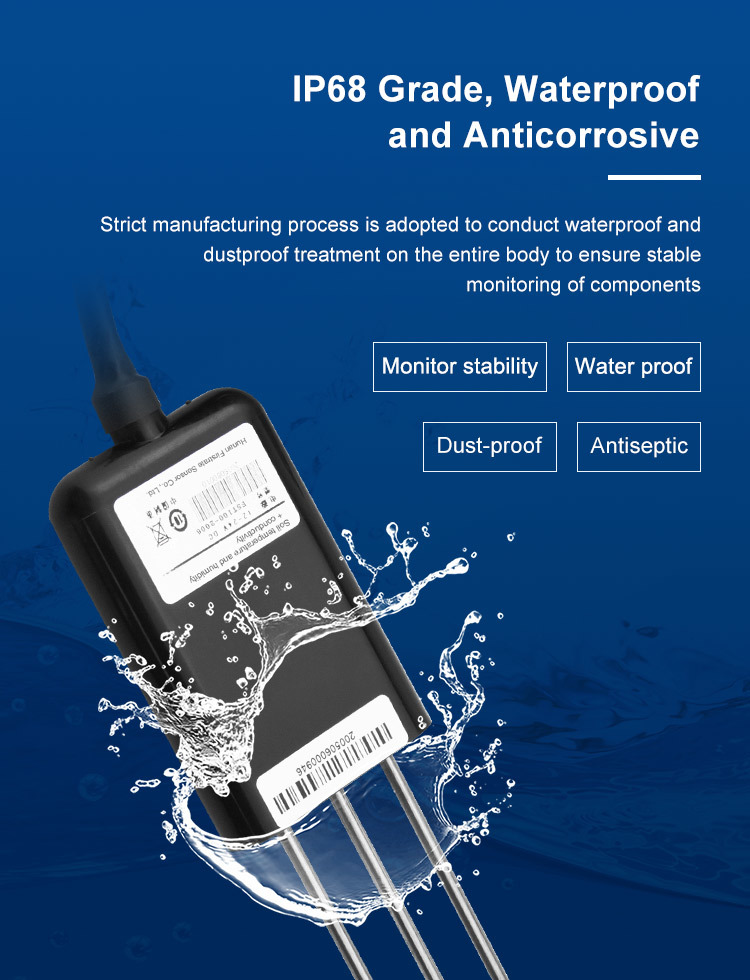

【5. IP68 grade,waterproof and anticorrosive】
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor
FST100-2006A Soil Temperature and Humidity, Conductivity Sensor
Product features:
- Small size design, easy to carry, simple installation
- operation and maintenance; good airtightness
- can be buried in the soil of different depths for a long time;
- high measurement accuracy,reliable performance;
- fast response speed, high data transmission efficiency.
