【Product Description】
FST100-2006D Soil five-in-one sensor have stable performance and high sensitivity. By measuring the dielectricconstant of soil, they can directly and stably reflect the real parameters of various soils. The sensor issuitable for soil moisture monitoring, scientifc experiments, water-saving irrigation, greenhousesfowers and vegetables, grass pastures, soil rapid measurement, plant cultivation, sewage treatmentprecision agriculture and other occasions.
【Product Features】
● Real-time temperature, humidity and salt monitoring function, can measure the temperature and salt content of soil at different depths

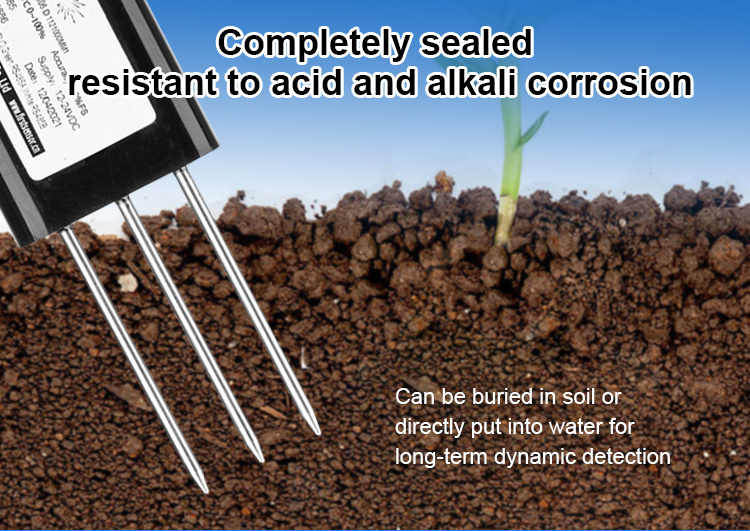

● Good sealing, can be directly buried in the soil for use, and is not corroded
● High measurement accuracy, reliable performance, fast response speed, high data transmission efficiency
● Little influence by soil quality, wide range of applications
【Application Scope】
● Water-saving agricultural irrigation, meteorological monitoring
● Greenhouses, flowers and vegetables, grasslands, soil testing
● Plant cultivation, scientific experiments and other fields that need to measure soil moisture
【Product appearance and wiring method】
【Technical Parameters】
| Measurement parameters | Soil temperature, soil volume water content, Soil conductivity (EC value), soil salinity, soil TDS |
| Temperature range | −30~85℃ |
| Water content range | 0~100% |
| Conductivity range | 0~20mS/cm |
| Supply voltage | 12~24VDC |
| Soil salinity | 0~10000mg/kg |
| Soil TDS | 0~10000mg/kg |
| Electrical connections | Direct lead |
| Scope of work | −40℃~80℃ |
| Stable schedule | 3 seconds after power on |
| Response time | ≤1 second |
| Sealing material | ABS engineering plastic, epoxy resin |

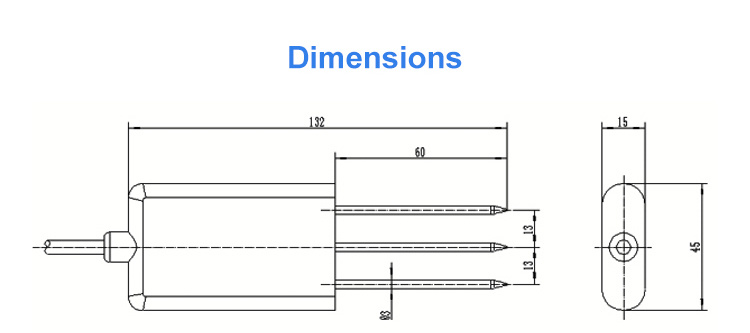

| Probe Length | 55mm |
| Probe diameter | 3mm |
| Measurement accuracy | Temperature: ±0.5℃; Humidity: ±3% (0~50%), ±5% (51~100); Conductivity: ±3%; Salinity: ±3%; TDS: ±3% |
| Resolution | Temperature: ±0.1℃; Humidity: ±0.1% (0~50%), ±1% (51~100); Conductivity: 10us/cm; Salinity: 5mg/kg; TDS: 5mg/kg |
| Output signal | Rs485 (standard Modbus-RTU protocol, device default address: 01) |
【Detailed description】
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor
FST100-2006D Soil five-in-one sensor
Product features:
● Five-in-one sensor
● High data transmission efficiency
● High measurement accuracy
● Excellent sealing, corrosive resistance
● Measure temperature,humidity and salt content at different depths
