【Product description】
FST100-2006C The soil conductivity sensor uses a graphite electrode to convert the analog or digital signal of the soil conductivity through a transmitter. After the conductivity sensor is buried in the soil, the conductivity of the soluble salt ions in the soil solution is directly measured. Graphite electrodes have the characteristics of stable performance and high sensitivity, and have a wide range of applications, especially for high conductivity, so they are very suitable for the determination of soil conductivity.
【Technical Parameters】
| Temperature range | 0~10 mS/cm |
| Measurement accuracy | ±3% |
| Resolution | 10μS/cm |
| Supply voltage | 12~24V DC |
| Output signal | Rs485/4-20mA/0-5VDC/0-10VDC |
| The scope of work | -40~80℃ |
| Conductivity electrode material | Graphite |
| Stable schedule | 1 second after power on |
| Response time | <1 second |
| Sealing material | ABS engineering plastic, epoxy resin |

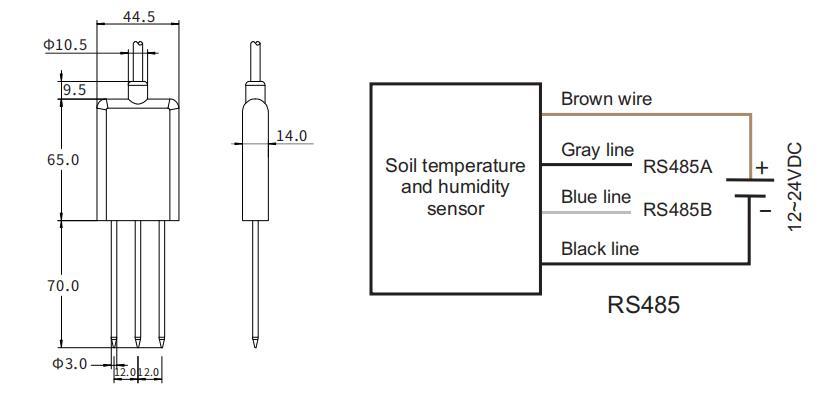

【Product appearance and wiring method】
【Scope of application】
♦ Water-saving agricultural irrigation, weather monitoring
♦ Greenhouses, flowers and vegetables, grass pastures, soil testing
♦ Fields that need to measure soil moisture such as plant cultivation and scientific experiments
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor
FST100-2006C Soil Conductivity Sensor
【Scope of application】
♦ Water-saving agricultural irrigation, weather monitoring
♦ Greenhouses, flowers and vegetables, grass pastures, soil testing
♦ Fields that need to measure soil moisture such as plant cultivation and scientific experiments
