FST100-2007 Rain and Snow Transmitter
Product features: Small structure, easy installation; strong structure, compression resistance, corrosion
resistance; high measurement accuracy, reliable performance; long transmission distance, strong
anti-interference ability; optional self-heating function, to prevent freezing and freezing in low temperature
situations dew.
Application scope: Meteorological and environmental monitoring; whether to measure the presence of
rain in airports, buildings, and ports; whether to measure the presence or absence of rain and snow
in the fields of industry, agriculture, and transportation.
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
FST100-2007
Quantity
-
+
Stock:
0
Introduction
【Product description】
FST100-2007 Rain and Snow Transmitter is a measuring device that uses the conductivity of rainwater to measure whether it rains or snows outdoors or in nature. The built-in automatic heating device can eliminate the interference of rain and snow adhesion and ensure the normal operation of the system. It can be widely used in the qualitative measurement of the presence or absence of rain and snow in the environment, greenhouses, breeding, construction, buildings, etc., with sensitive response, safety and reliability, and easy installation.
【Features】
● Small structure, easy to install
● Strong structure, compression and corrosion resistance
● High measurement accuracy and reliable performance
● Long transmission distance, strong anti-interference ability
● Optional self-heating function to prevent freezing and condensation in low temperature situations
【Scope of application】
● Meteorological and environmental monitoring
● Whether there is rainwater measurement in airports, buildings, and ports
● Measurement of the presence or absence of rain and snow in the fields of industry, agriculture and
transportation
【Technical Parameters】
| Product number | FST100-2007 |
| Measuring range | —— |
| Output signal | RS485 output (Modbus protocol) Relay: normally open contact With DTU, wireless transmission |
| Supply voltage | 10~30VDC |
| Maximum power consumption | Output relay with load capacity: 250VAC 1A/30VDC 1A |
| Precision | —— |
| Operating temperature | Working temperature: -20~60℃ Heating function: maximum heating 40℃ |
| Long-term stability (one year) | —— |
| Response time | —— |
| Device address | Parameter configuration: software setting |
| Device baud rate | —— |
| Byte format | —— |
| Electrical connections | Direct lead |

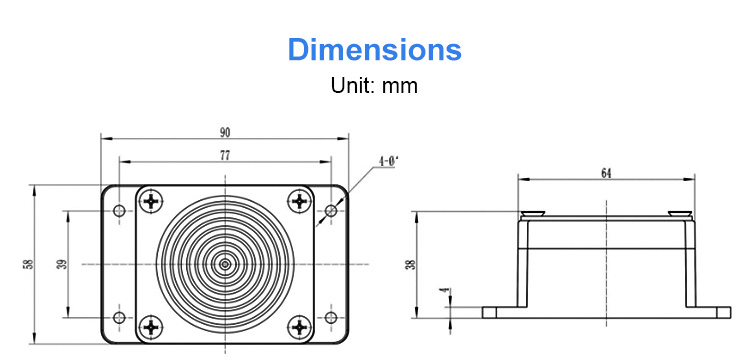

【External structure】

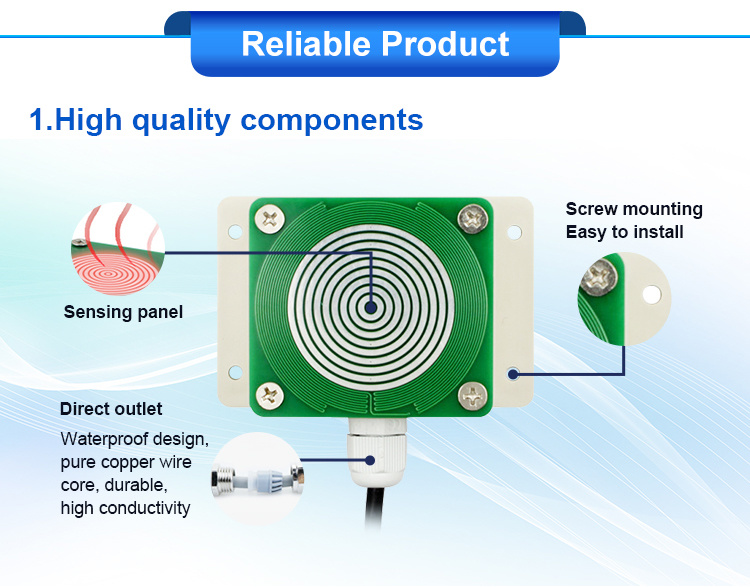

【1. Product Details】
【2. Product design】

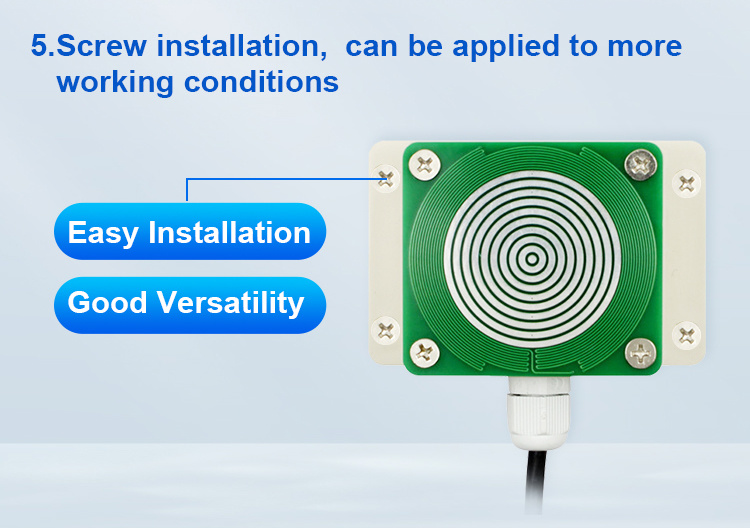

【3. Easy to install】

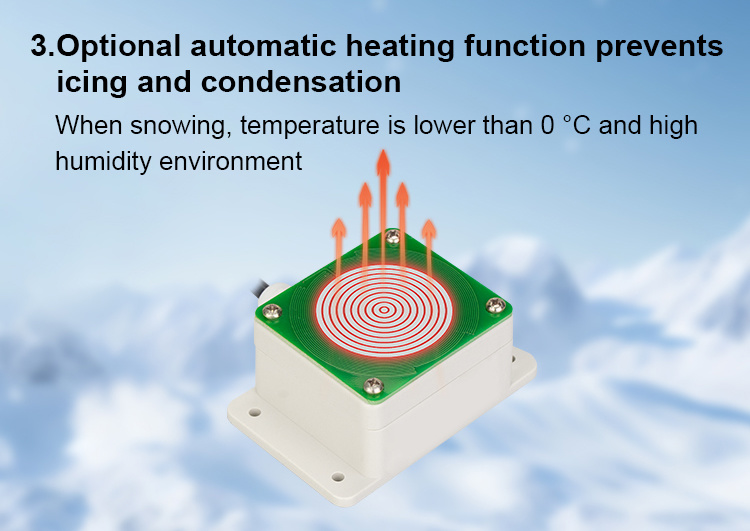

【4. Automatic heating】
【5. High performance circuit】
【6. Installation Precautions】
【Electrical connection】
【Product wiring】
【Product application】
【System introduction】
The intelligent environmental station system adopts advanced sensing technology and cloud architecture mode to achieve environmental data collection such as temperature and humidity, atmospheric pressure, wind speed and direction, rain and snow rainfall, PM2.5/PM10 air quality, and access through wired or wireless GPRS. Cloud, automatic storage of environmental data and online analysis and monitoring. The user can log in to the system through the PC or the mobile terminal to obtain the environmental data information cloud service in the environment station area, thereby improving the efficiency and quality of production and life.

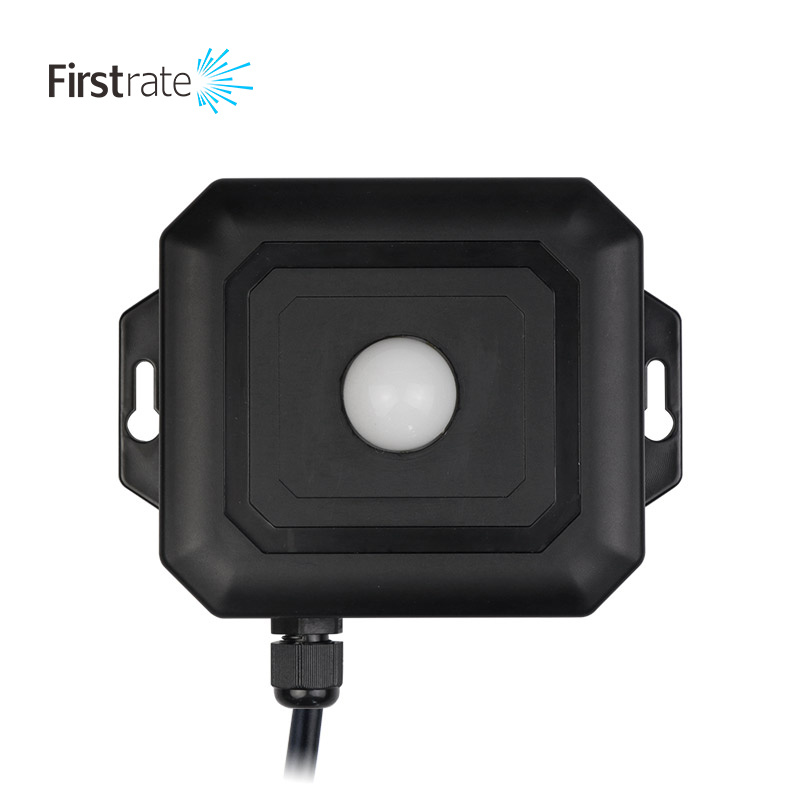

【Supporting sensor】
【Cloud platform PC interface】
【Cloud platform mobile phone interface】
【Company strength】
