FST100-2008 Tipping Bucket Rain Gauge
Product features: high precision and good stability; design mesh at the funnel to prevent leaves and other
sundries from blocking the rain; the turning parts are sensitive, stable performance, and reliable; stainless
steel shell, exquisite appearance, good quality; the use of rain-bearing mouth The stainless steel skin is
punched and drawn as a whole, with high smoothness and small errors caused by stagnant water.
Application scope: Meteorological (station) stations, hydrological stations; environmental protection, flood
prevention and drainage; agriculture, forestry and other related departments are used to measure
precipitation.
Retail price
0.0
元
Market price
0.0
元
Number of views:
1000
Product serial number
FST100-2008
Quantity
-
+
Stock:
0
Introduction
、
【Product description】
FST100-2008 Tipping Bucket Rain Gauge is a device used to measure rainfall in nature. It converts rainfall into digital information output in the form of a switch to meet the needs of information transmission, processing, recording and display. It can be widely used in small weather stations, hydrological stations, agriculture and forestry, etc. It is used by relevant departments to measure precipitation, precipitation intensity, precipitation time, etc.
【Features】

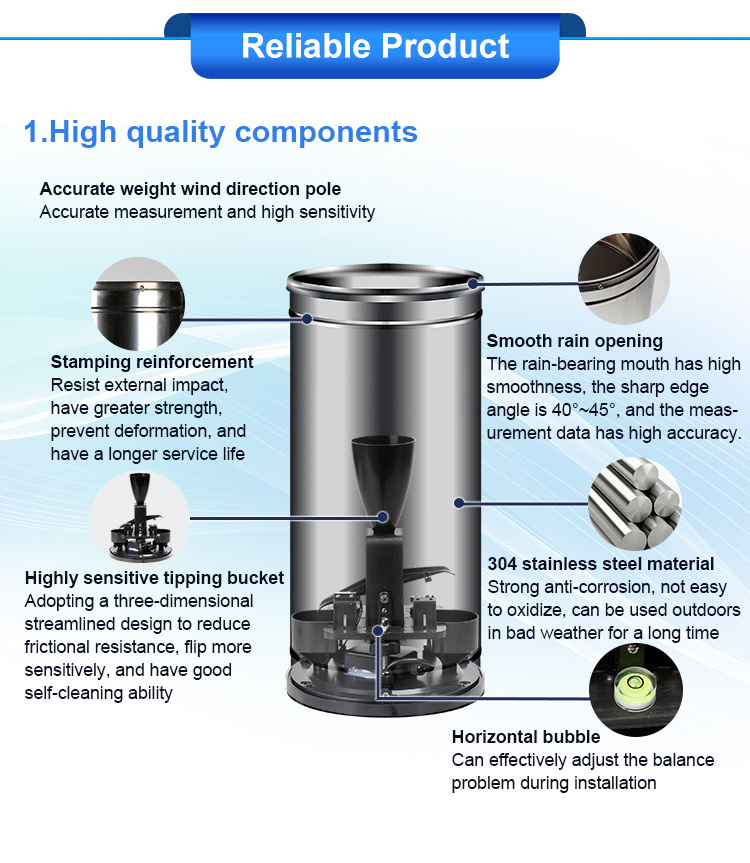

● High precision and good stability

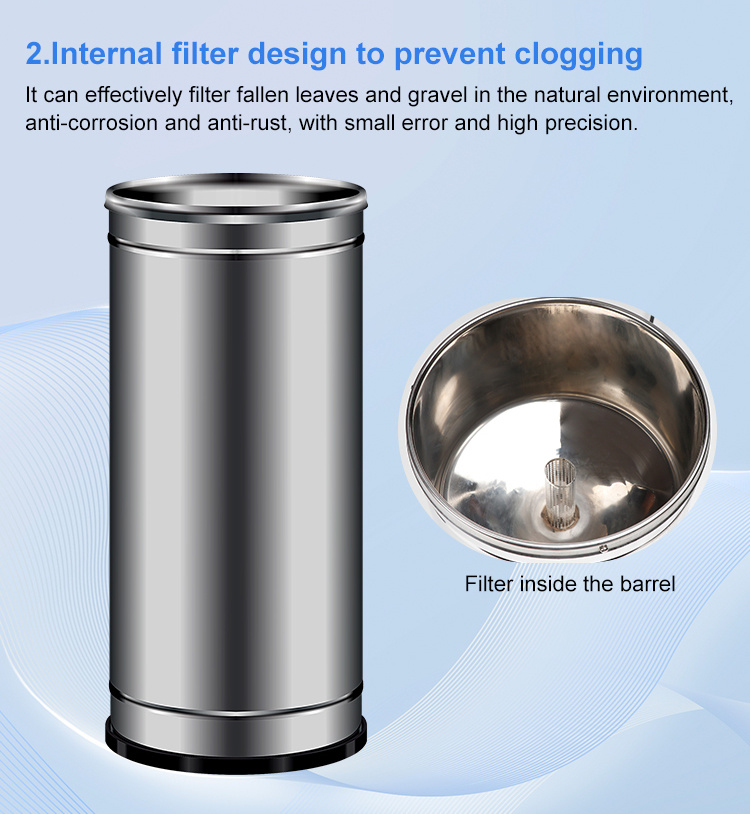

● The design of the mesh at the funnel can prevent the leaves and other debris from blocking the flow of
rain

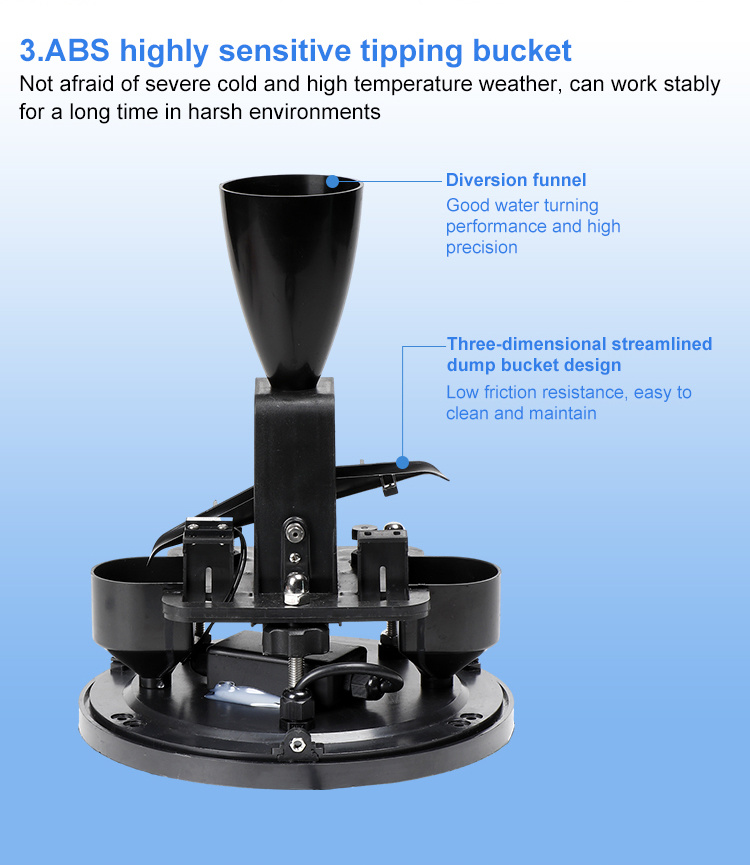

● Reversing parts are sensitive, stable performance, reliable work
● Stainless steel shell, exquisite appearance, good quality
● The rain-bearing mouth is made of stainless steel and is integrally punched and drawn, with high
smoothness and small errors caused by stagnant water
【Scope of application】
● Meteorological (station) station, hydrological station
● Environmental protection, flood prevention and drainage
● Agriculture, forestry and other relevant departments used to measure precipitation
【Technical Parameters】
| Product number | FST100-2008 |
| Measuring range | Rain intensity range: 0.01mm~4mm/min (allowable maximum rain intensity 8mm/min) |

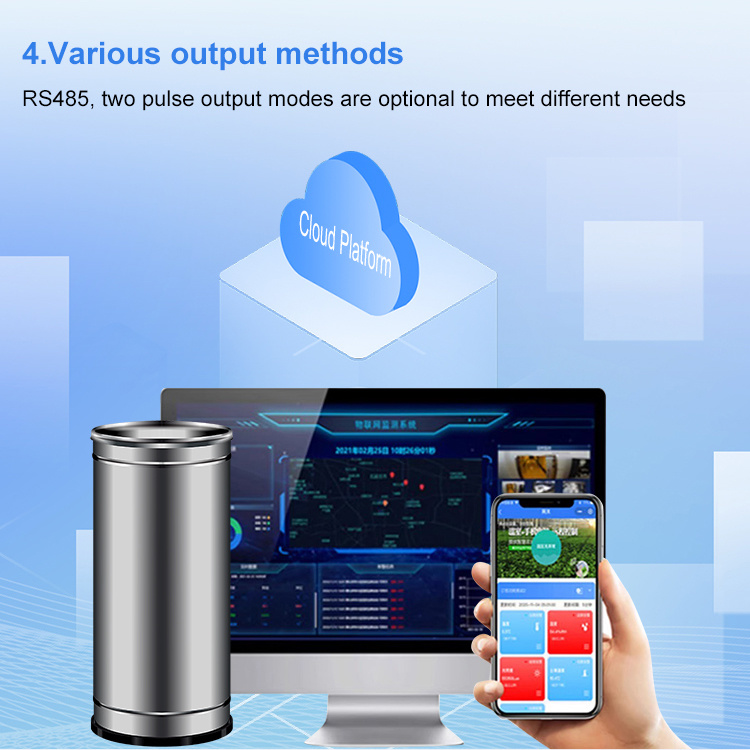

| Output signal | RS485 output (Modbus protocol) pulse |
| Supply voltage | Analog signal: 12~24VDC Digital signal: 5~24VDC |
| Maximum power consumption | Static 0.16W Dynamic 1.8W |
| Precision | Accuracy ≤±3% Resolution: 0.2mm |
| Operating temperature | -10~50℃ Relative humidity＜95% (40℃) |
| Device address | 1~255 can be set, the default is 1 |
| Device baud rate | Standard MODBUS-RTU protocol, baud rate 9600 |
| Byte format | 8 data bits, 1 stop bit, no parity |
| Electrical connections | Direct lead |
【External structure】
【Detailed description】
【1. Features】
【Company strength】
、
