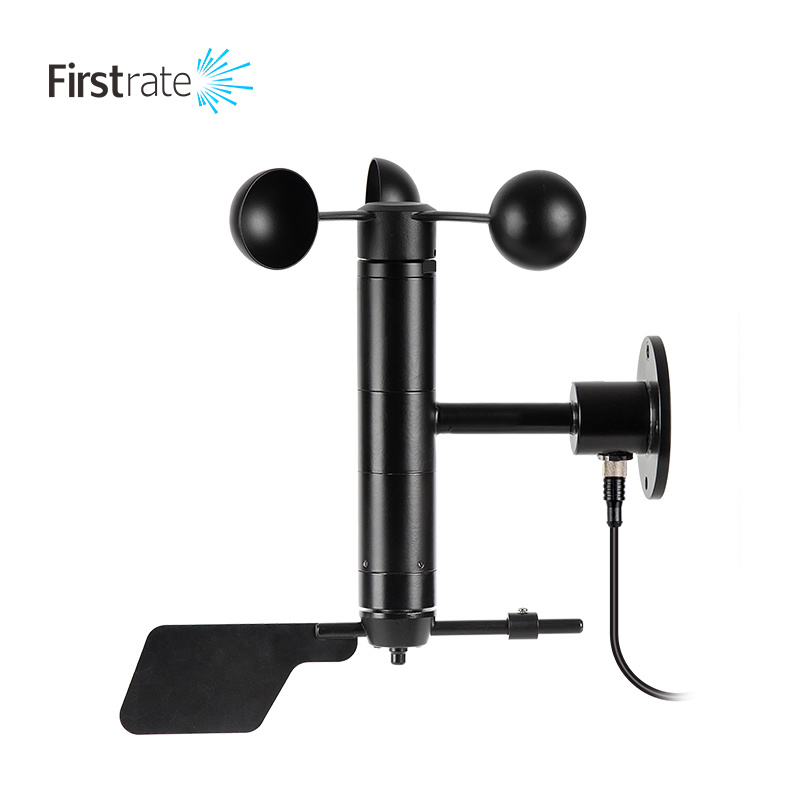

FST200-205 Wind Speed and Direction Integrated Sensor

Product model:  FST200-205

Product features:

     ● Aluminum alloy material                                        ●  Non -contact magnetic sensing measurement

     ● High weather resistance, high strength                  ● Excellent corrosion and water resistance

     ● Excellent strong anti-radio frequency, anti-electromagnetic interference



Applications:

     ● Railway                        ● Ropeway                            ● Aquaculture

     ● Port                              ●  Wharf                                ● Crawler crane

     ● Meteorology                ●  Environment                      ● Tower crane

     ● Agriculture                   ● Greenhouse                         ● Power plant

Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
FST200-205
Quantity
-
+
Stock:
0
Introduction

【Product Description】

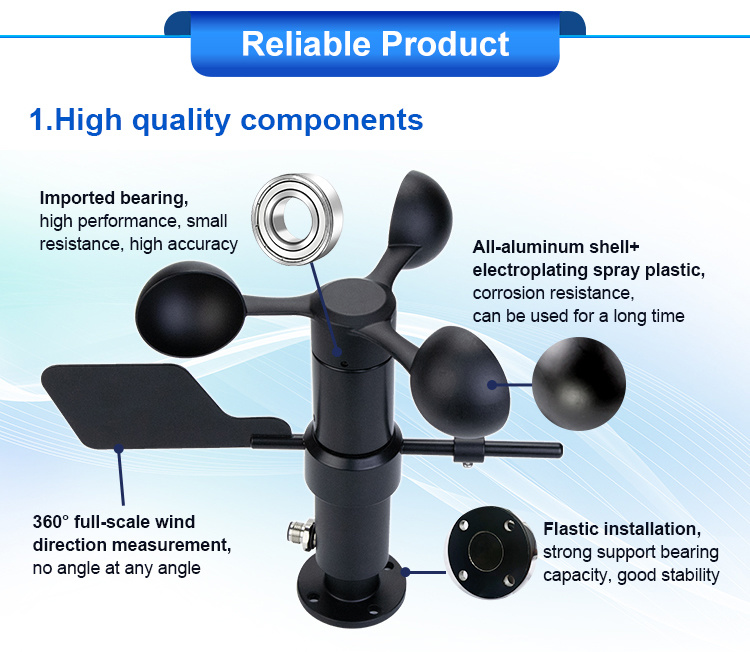

FST200-205 wind speed and wind direction sensor is used to measure the wind speed and wind direction value, and convert it into an electrical signal, which can be directly transmitted to the recording device for processing. The sensor housing is made of aluminum alloy, using special mold precision die-casting process, the dimensional tolerance is very small, the surface precision is very high, and it has high weather resistance, high strength, corrosion resistance and water resistance; the internal circuit has been protected, and the whole sensor has Good adaptability to harsh environments.

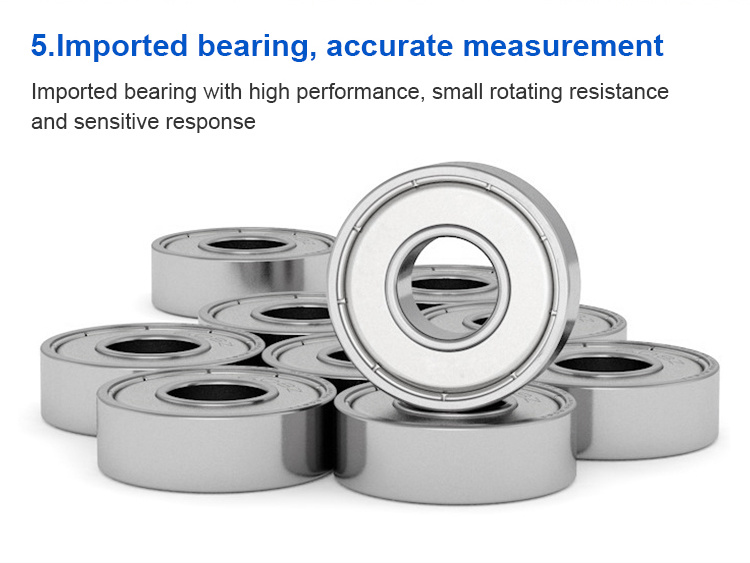

The cable connector is a military plug, which has good anti-corrosion and anti-corrosion performance, which can ensure the longterm use of the instrument. At the same time, it cooperates with the internal imported bearing system to ensure the accuracy of wind speed and wind direction collection.



The circuit module PCB is made of military-grade A-grade materials, ensuring the stability of parameters and the quality of electrical performance; the electronic components are all imported industrial-grade chips, so that the whole has a very reliable anti-electromagnetic interference ability, and can ensure that the host is at -20℃~ + It can work normally within the range of 50°C and humidity of 35%-85% (non-condensing).





【Technical Parameters】



  Operating Voltage   12-30VDC/12-30VDC/12-30VDC/15-30VDC
  Output signal   4-20mA/0-5VDC/Rs485/0-10VDC
  Range

  Wind speed: 0-30m/s,0-60m/s;

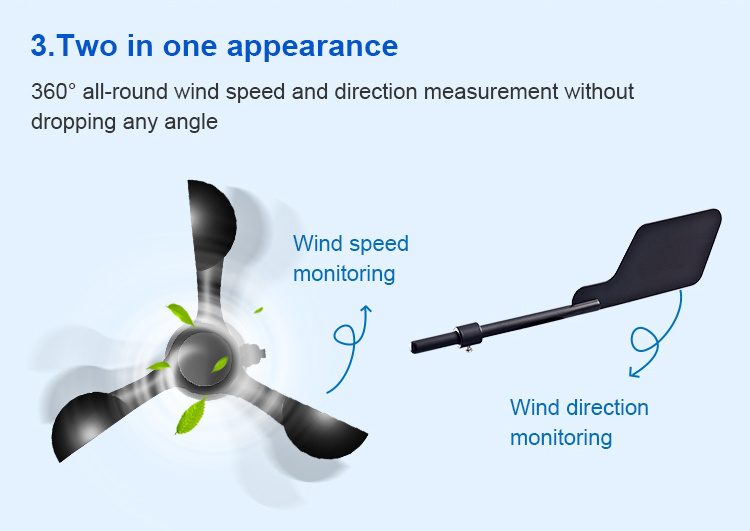

  Wind direction: 16 directions or 8 directions (0-360 degrees)

  Precision   Wind speed: ±3% (≥5m/s); wind direction: ±3 degrees
  Maximum power consumption   Current type MAX≤500mW; RS485 type MAX≤300mW
  Start wind speed   ≤0.5m/S
  Surge protection   EMC Class III
  Static protection   15KV
  Operating temperature  -40-85℃
  Working humidity   0%~95%(non-condensing)
  Protection level   IP65

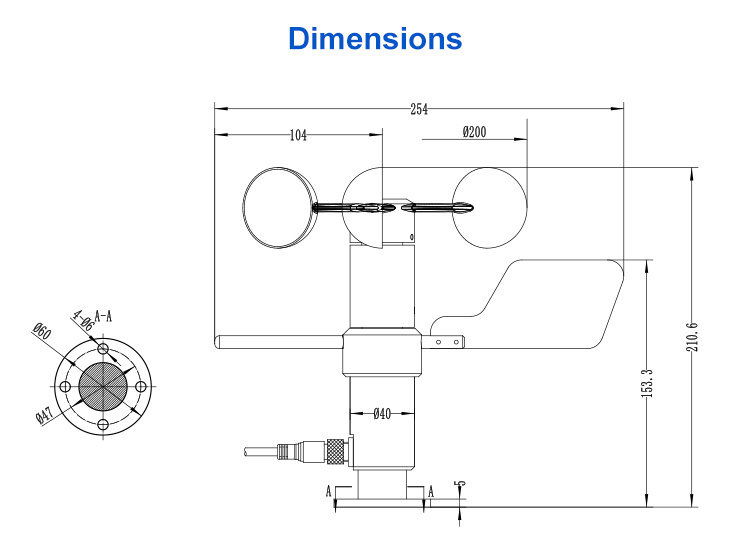

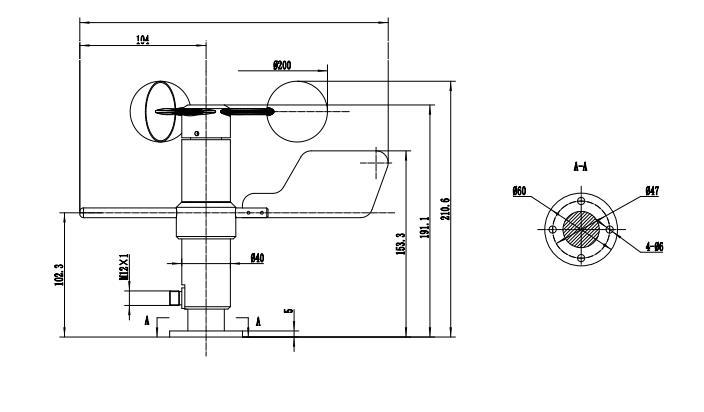

【Dimensions】



【Sensor installation instructions】



1. Please install the sensor horizontally. The electrical connector should be aligned with the north during installation. The angle between the base and the horizontal plane should not exceed 5℃ to ensure that the sensor can accurately measure the wind speed and direction at low wind speeds;





2. The position and shape of the wind cup and windmill arm, wind direction rod and tail fin directly affect the accuracy of the sensor. Please do not grasp the wind cup, windmill arm, wind direction rod and tail fin during installation, so as not to damage the sensor structure and affect the measurement accuracy.





【Detailed description】









【Signal output definition】

【Scope of application】



  ♦  Monitoring of high-altitude operations
  ♦  Monitoring and control of construction machinery operation process
  ♦  Meteorological station and environmental protection monitoring and control
  ♦  Port and terminal monitoring and control



【Packaging & Shipping】



【Company Profile】
