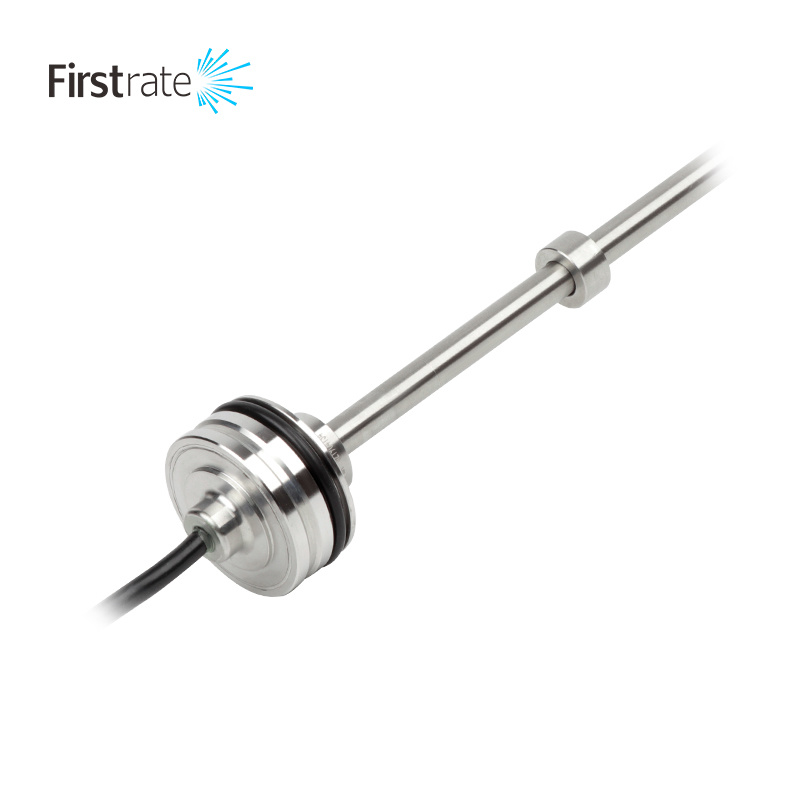

FST400-2000 Magnetostrictive Liquid Level Sensor

Product model: FST400-2000

Product features :

●  Solid and firm, fully closed design
●  Non-contact measurement, no abrasion
●  High accuracy, high Resolution
●  Excellent reliability and stability

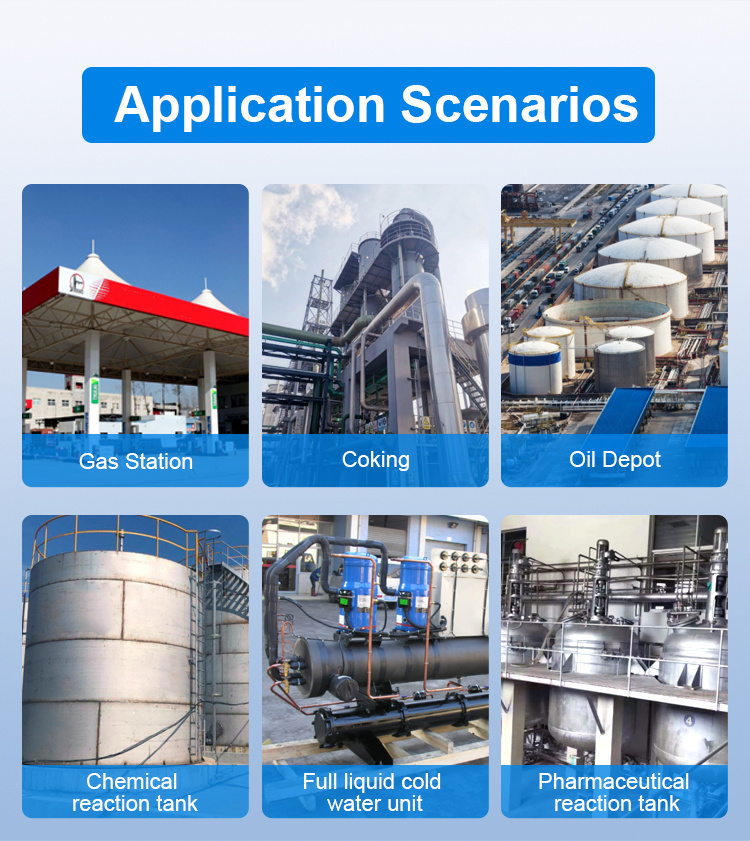

Application :

●  Food storage tank level control
●  Drinking water and sewage treatment systems
●  Gate opening synchronization control
●  Turbine guide vane opening detection, gas turbine air resistance valve
●  Petroleum, chemical, water, pharmaceuticals, food, beverage and other industries
●  Other Industrial liquid tank level measurement and control

Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
FST400-2000
Quantity
-
+
Stock:
0
Introduction



【Product features】



  ♦  Solid and firm, fully closed design
  ♦  Linear measurement, absolute value output
  ♦  Non-contact measurement, no abrasion
  ♦  High accuracy, high Resolution
  ♦  Good environmental adaptability, reliability and stability






【Technical Parameters】



  Testing Data   Position
  Testing Range   300,400,500,600,700,800,900,1000 mm
  Output Signal   4~20mA
  Supply voltage   24VDC (-15% ~ + 20%)
  Working current   <70mA
  Polarity protection   Over-load protection up to -30VDC
  Maximum   33VDC
  Resolution   16-bit D / A
  Nonlinearity   ± 0.1% FS ± 0.05% FS
  Repeatability   ± 0.008% FS
  Update time   Analog signal 0.5mS (travel <1000mm)
  Operating temperature   -40 ~ +85 ℃
  Storage temperature   -40 ~ +100 ℃
  Temperature effect   <0.007% FS / ℃
  Humidity and dew point humidity   90% RH, no condensation
  Fault indication   LED diagnosis function
  Rod Material   stainless steel
  Electronic warehouse   aluminum alloy
  Rod pressure   ≤ 34MPa

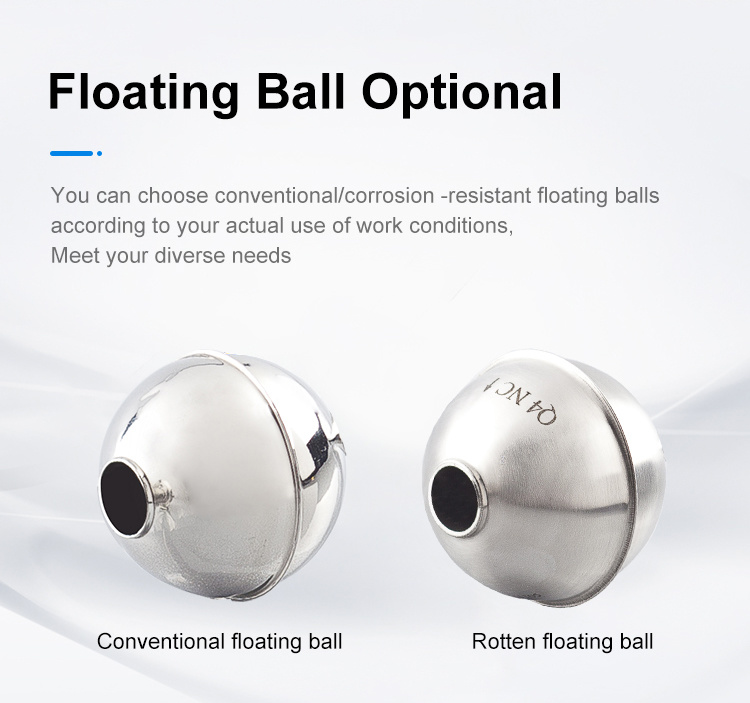

  Position Magnetic Ring   conventional float, corrosion-resistant float is for option

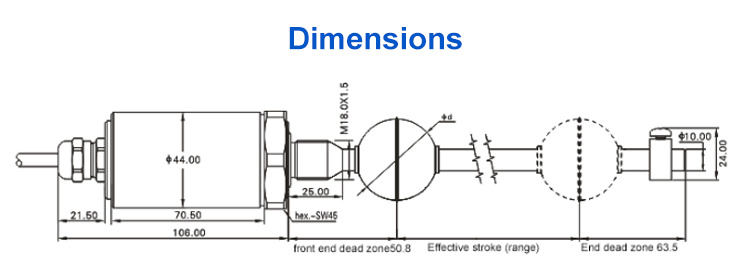

  Pressure port   M18*1.5
  Electrical connection   direct lead
  IP Grade   IP67





【Detailed description】
