【Product Description】
FST800-1400 air conditioner pressure sensor is used to measure the refrigerant pressure in the air conditioning system for real-time monitoring, reducing idle speed and saving energy, etc. The product has the characteristics of fast response speed and good compatibility with measurement. Widely used in compressors, refrigeration and air-conditioning equipment, petroleum, chemical, industrial fluids and other equipment.
【Technical Parameters】
| Measuring medium | R22, R407C, R134A |
| Pressure Range(bar) | 0~20 0~46 |
| Signal Output | 0.5~4.5VDC |
| Signal Line Specification | 3 Wire |
| Supply Voltage | 5VDC |
| Accuracy | ±1.5 %FS |
| Full error band | -30~+100°C |
| Operating temperature | ±0.02 %FS/°C |
| Storage temperature | -30~+120°C |
| Overload pressure | 200% FS |
| Destruction pressure | 300% FS |
| Vibration | 11g (50~2000Hz) |
| Supply current | 1 0mA (maximum) |
| Electrical connections | YAZAKI RK03FB |
| Protection level | IP65 |
| Material | 304 stainless steel |
| Service life | 5 million full scale cycles |
| Pressure interface | Φ6*1.0 pipe connection |
| Load Resistance | 10KΩ (typical) |
| Overvoltage protection | 16VDC |
| Reverse voltage | -14VDC |

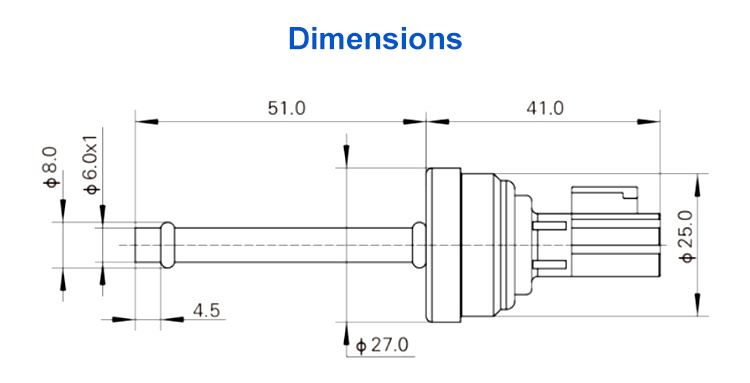

【External structure】
【Detailed description】
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor
FST800-1400 Air Conditioner Pressure Sensor
Product features:
● Excellent resistance to corrosion, wear and vibration
● Fast response, good compatibility with measuring medium
● Good product reliability and long service life

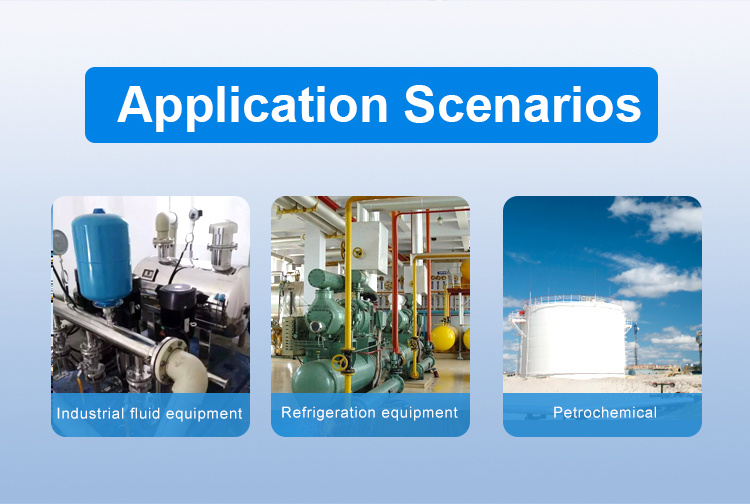

Applications:
● Air compressor ● Refrigeration
● Petrochemical ● Air conditioning equipment
● Industrial Fluid Equipment
