【Product Description】
FST800-214 Intrinsically Safe Pressure Sensor produced by our company are based on MEMS technology and adopt advanced glass micro-dissolution technology, thereby avoiding the influence of temperature, humidity, mechanical fatigue and media on the products, and strengthening the sensor (transmitter) in the industrial environment. long-term stability.
【Product Features】
● High-efficiency lightning protection, anti-RF and electromagnetic interference protection
● Built-in high-performance intrinsically safe explosion-proof circuit, Ex ia llC T6 Ga,
● Excellent impact resistance, overload resistance, vibration resistance, and corrosion resistance
● Advanced temperature digital compensation function, wide operating temperature range
● Stainless steel structure, good medium compatibility
● High precision, high frequency response, good long-term stability
【Application】
● Explosion-proof industrial process measurement and control
● Hydraulic and pneumatic control systems in explosion-proof occasions
● Petrochemical, natural gas control systems
● Other explosion-proof automation system measurement and control
【Technical Parameters】
| Pressure Type | gauge pressure absolute pressure sealed pressure |
| Pressure Range(bar) | 1 1.6 2.5 4 6 10 16 25 40 60 100 160 200 250 300 400 500 600 750 1000 1500 |
| Pressure Range(psi) | 15 30 50 75 100 200 300 500 750 1K 1.5K 3K 5K 10K 12K 15K 25K |
| Signal Output | 4~20mA 0.5-4.5VDC |
| Signal Line Specification | 2wire 3Wire |
| Supply Voltage | 9~28VDC 5VDC |
| Accuracy | ±0.3%FS ±0.5%FS |
| Longterm Stability (1 Year) | ±0.25%FS |
| Frequency Response (-3dB) | 3.2kHz |
| Compensated Temperature | -20~+85°C |
| Storage Temperature | -40~+125°C |
| Mechanical Vibration | ±20g |
| Impact (11ms) | 100g |

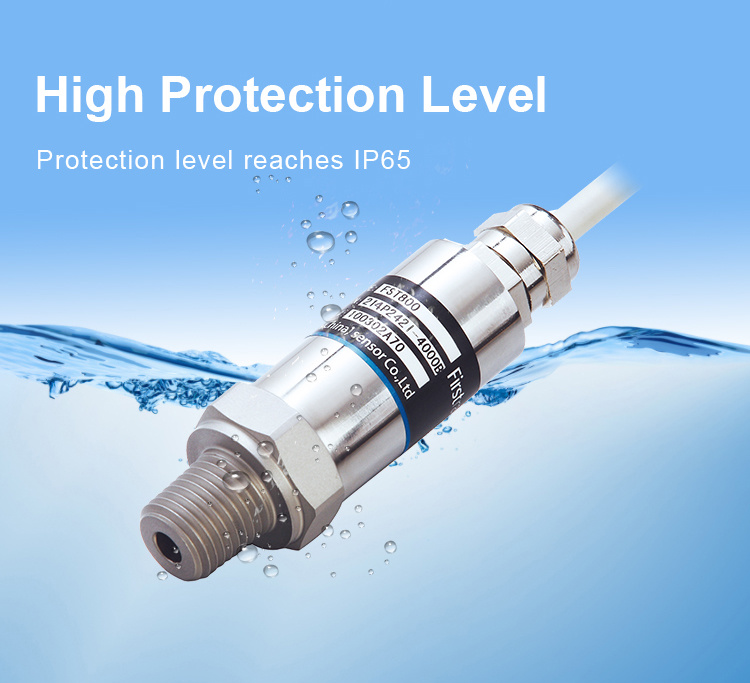

| Protection level | IP65 |
| Material | 17-4PH (range≥6bar) 304 or 316L (range <6bar) |
| Pressure port | M20×1.5 G1/4 NPT1/4 (other customized as required) |

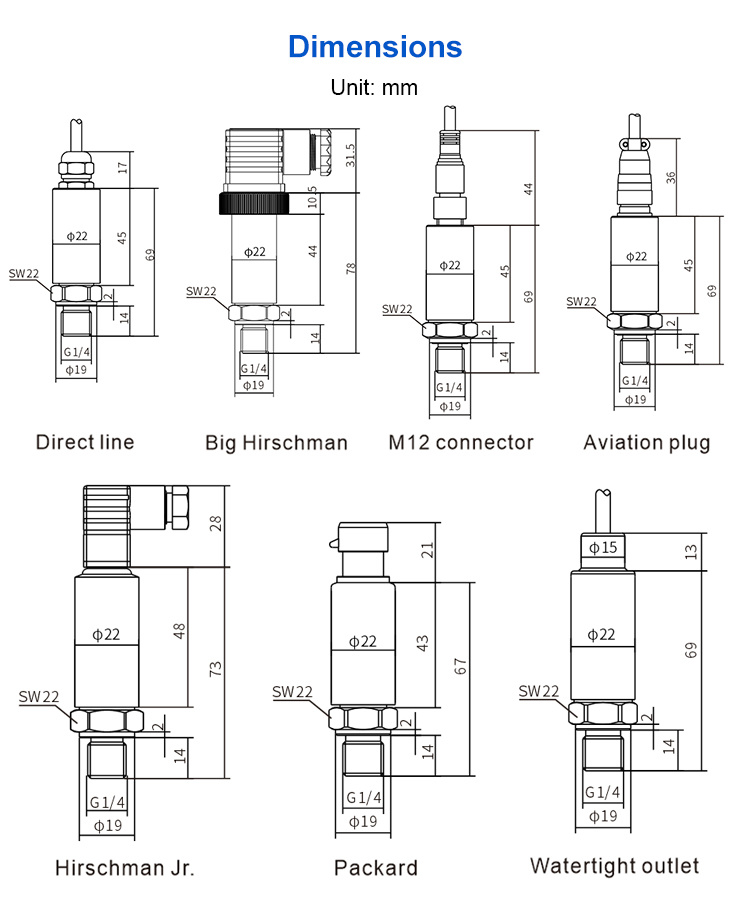

| Electrical connections | Direct lead M12 connector Hirschmann(Mini) Hirschmann(DIN43650) |
| Explosion-proof grade | Exia ll CT6 Explosion-proof grade Ga(4~20mA) Exia ll CT6(0.5~4.5VDC) |
| Overload pressure | 150%FS (range <6bar) 300%FS (range≥6bar) |
| Breaking pressure | 00%FS (range <6bar) 500%FS (range ≥6bar, limit 10000bar) |
| Certificates | CE RoHS |
【Detailed description】
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor
FST800-214 Intrinsically Safe ATEX Pressure Sensor
Product features:

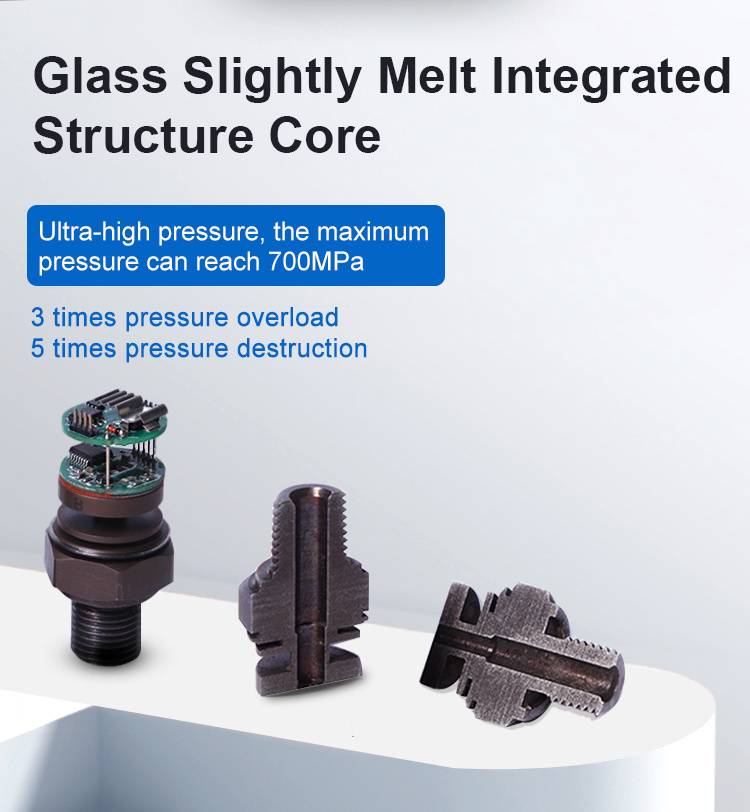

● Advanced micro fused silicon strain gauge ● Integrated temperature compensation
● Intrinsically safe explosion-proof ● Exiall CT6Ga，Exia II CT6

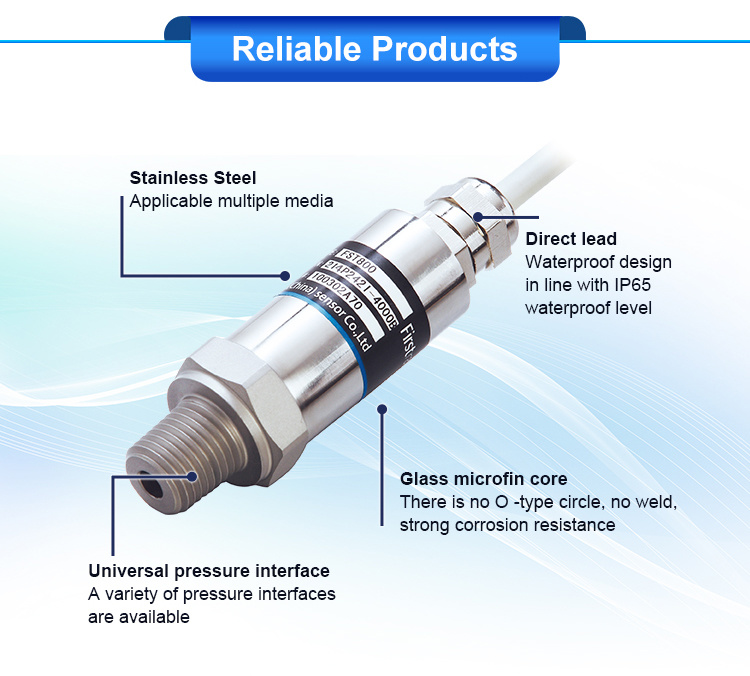

● Excellent shock, overload, & vibration resistance ● Highly corrosion resistant SS housing
Applications:
● Explosion-proof industrial processes ● Petrochemical and natural gas
● Hydraulic and pneumatic control systems ● Explosion-proof automated detection
