FST800-211 Industrial Pressure Transmitter
Product features: Advanced glass micro-melting technology, elastomer overall structure design, no
leakage hazard; high-efficiency lightning protection, strong anti-RF and electromagnetic interference
protection; advanced temperature digital compensation function, wide operating temperature range;
high precision, high frequency Sound and long-term stability are good.
Applications: Industrial process detection and control; pumping stations and water treatment systems;
automated detection systems; industrial machinery manufacturing; hydraulic and pneumatic control
systems.
【Product Description】
FST800-211 industrial pressure sensor adopts glass micro-melting process, the overall structure design of elastomer, no hidden danger of leakage; lightning protection, strong resistance to radio frequency and electromagnetic interference protection; temperature digital compensation function, wide working temperature range; high precision, high frequency Noise, good long-term stability.
【Technical Parameters】
Product number | FST800-211 |
Type of pressure | Gauge pressure, absolute pressure, sealed pressure |
Standard range (bar) | 0~6…600 |
Signal output | 4~20mA, 0.5~4.5VDC, 0~5VDC, 0~10VDC |
Supply voltage | 9~30VDC, 5VDC (0.5~4.5V), 15~30VDC (0~10V) |
Comprehensive accuracy | ±0.3%FS, ±0.5%FS |
Long-term stability | ±0.1%FS/year |
Temperature compensation | -20~+85℃ |
Operating temperature | -40~+85℃ |
Storage temperature | -40~+125℃ |
Overload pressure | 300%FS |
Breaking pressure | 500%FS |
Impact (11mS) | 100g |
Protection level | IP65 |
Material | 17-4PH |
Electrical connections | Direct lead Packard connector M12 connector Big/Little Hessman |
Pressure port | M20X1.5 G1/4 NPT1/4 (others need to be customized) |
【Features】
● Advanced glass micro-melting technology, flexible overall structure design, no leakage hazard
● Efficient lightning protection, anti-radio frequency and electromagnetic interference protection
● Advanced digital temperature compensation function, wide operating temperature range
● High precision, high frequency response, good long-term stability

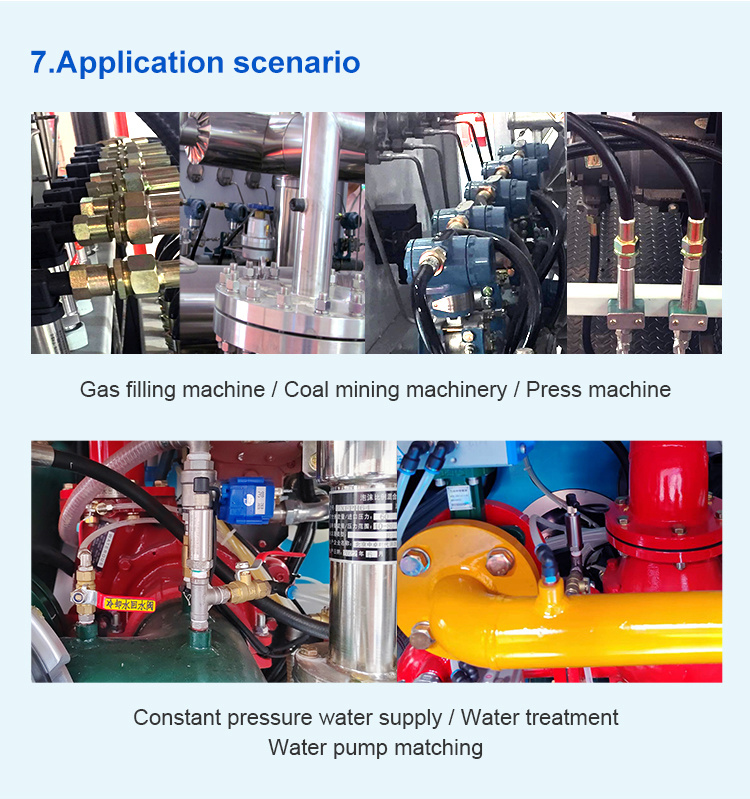

【Scope of application】
● Industrial process detection and control
● Hydraulic and pneumatic control system
● Industrial machinery manufacturing
● Automated detection system
● Pumping station and water treatment system

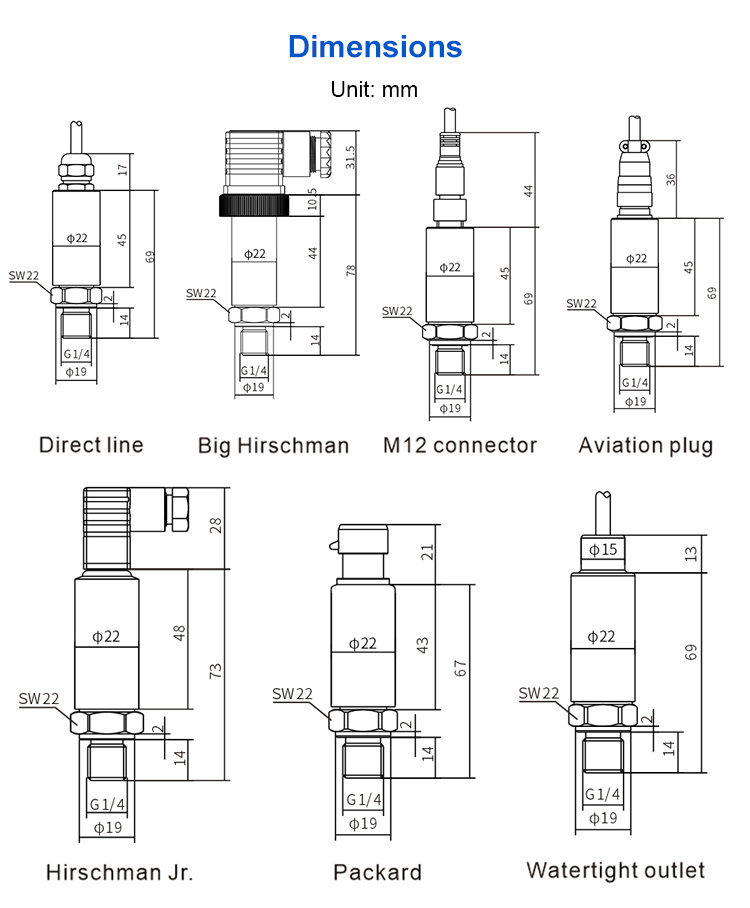

【Shape structure and electrical connection】
【Detailed description】

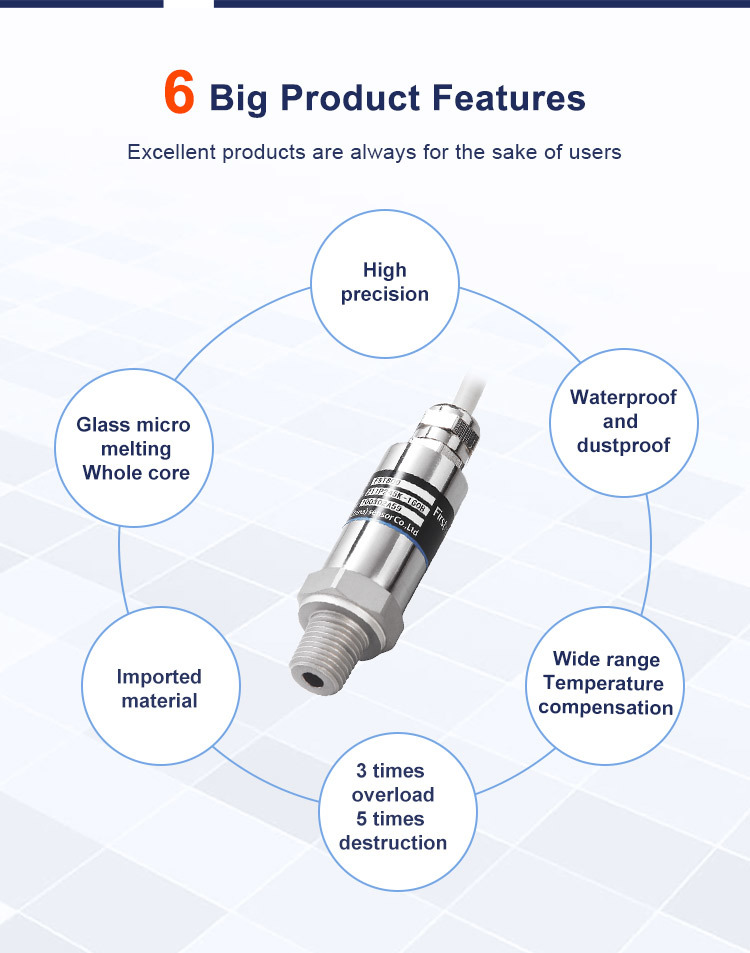

【1. Six big product features】

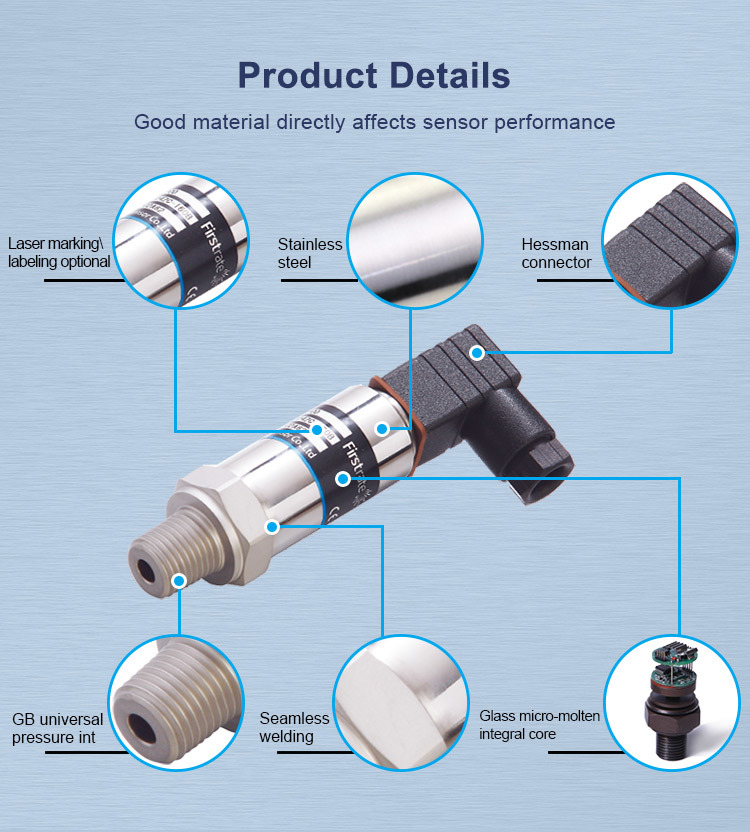

【2. Product Details】

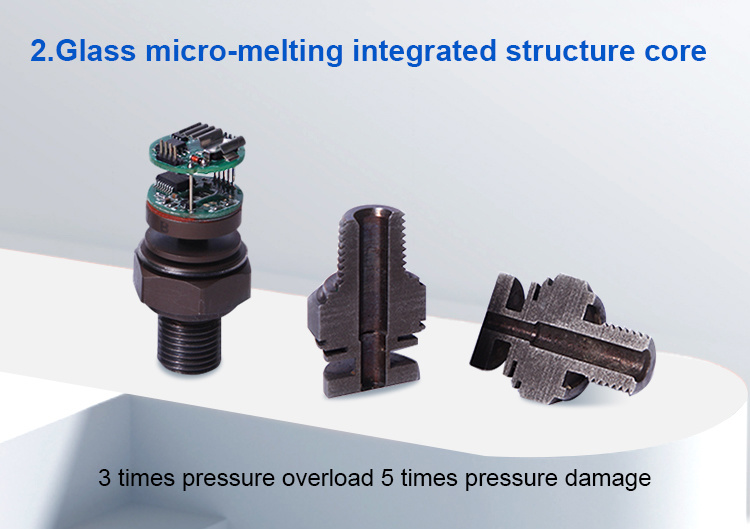

【3. Glass micro-melt core】

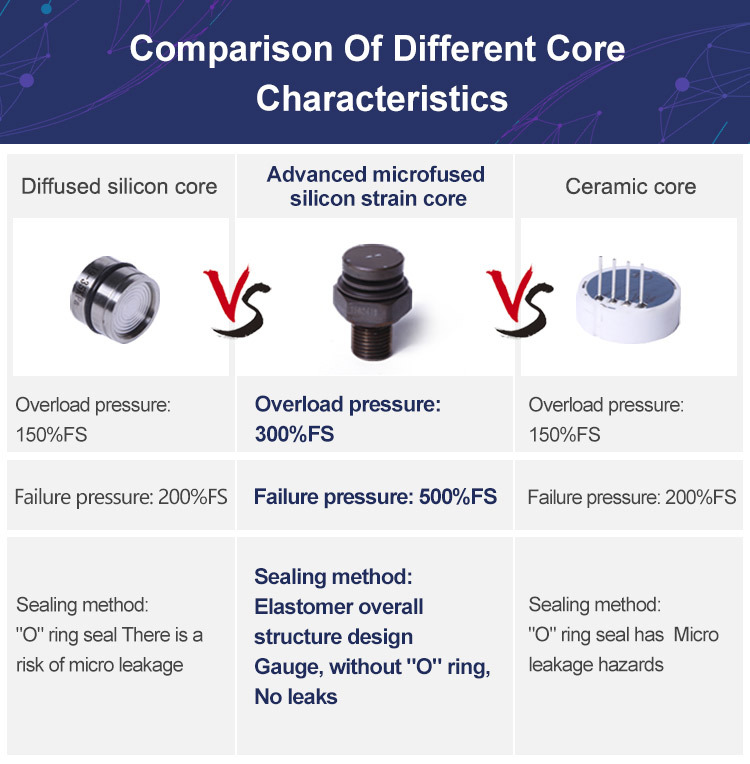

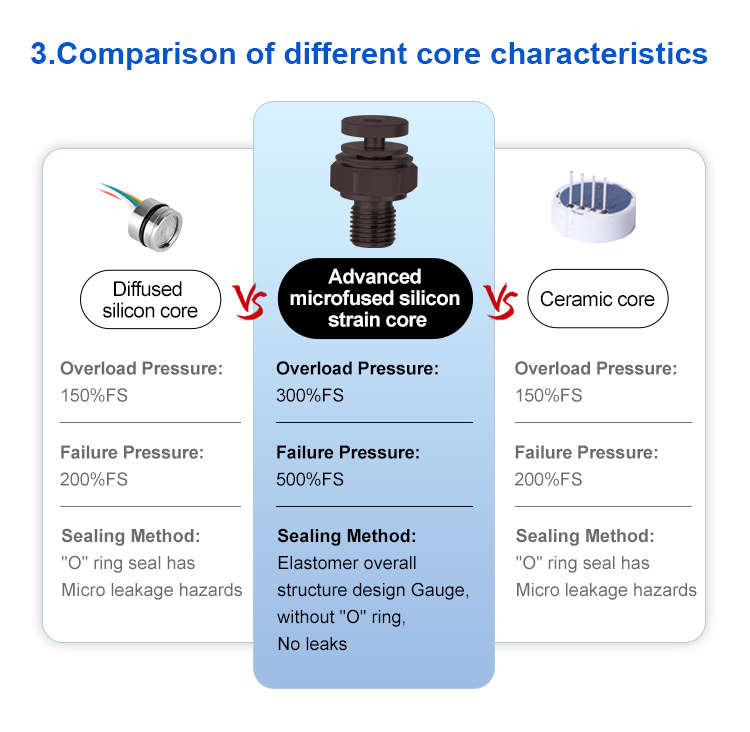

【4. Comparison of different core characteristics】

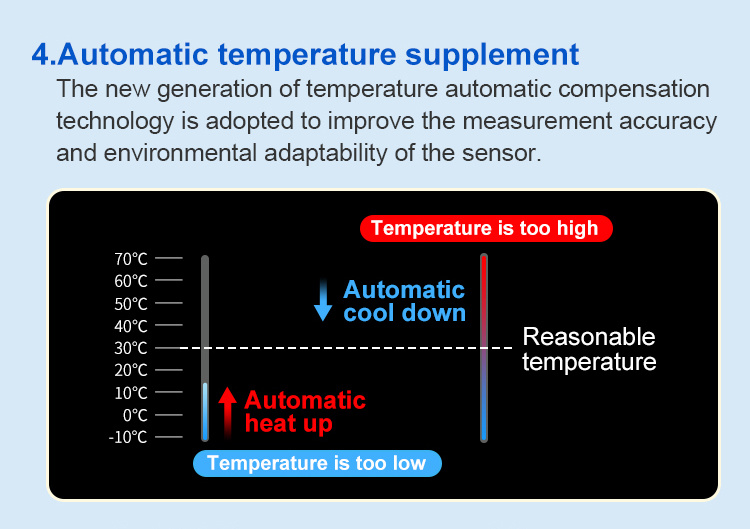

【5. Automatic temperature compensation,avoiding the sensor temperature drift】
