【Product Description】
FST600-400B infrared temperature sensor measures infrared radiation energy through infrared detectors (thermal detectors and photoelectric detectors) and converts it into electrical signals, and then converts it into temperature according to the basic law of radiation. It is mainly composed of optical system, photoelectric detection device, signal amplifier, and signal processing.
【Features】
【Technical Parameters】
| Measuring range | -20~300℃ |
| Accuracy | Measurement value of ± 1%± 3% |
| Signal output | RS485 |
| Duplicate accuracy | The measuring value ± 1%or ± 1 ℃ the high value |
| Power supply voltage | 5~30VDC |
| Pixel | 16x4 pixel infrared array |
| Vision | 60 °×16 ° (standard), 40 °×10 °,120 °×25 ° |
| Response time | 500 ms |
| Response wavelength | 8-14um |
| Ambient temperature | -20~80℃ |
| Storage temperature | -40~85℃ |
| Relative humidity | 10 ~ 95%(not exposed) |
| Shell | -40~85℃ |
| Size | 119mm x 18.7mm (length*diameter) |
| Electrical connections | Go out directly |

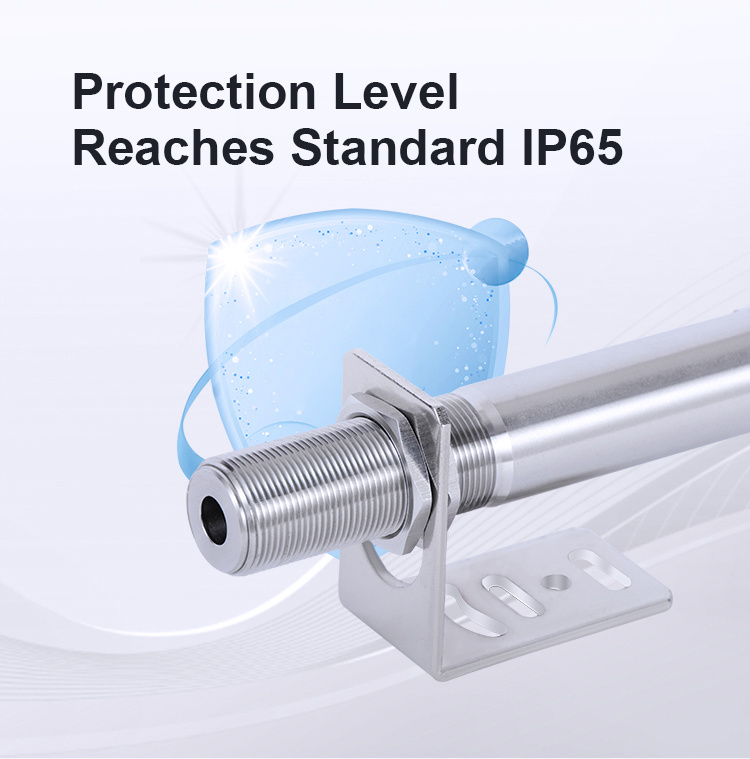

| Protection level | IP65 |

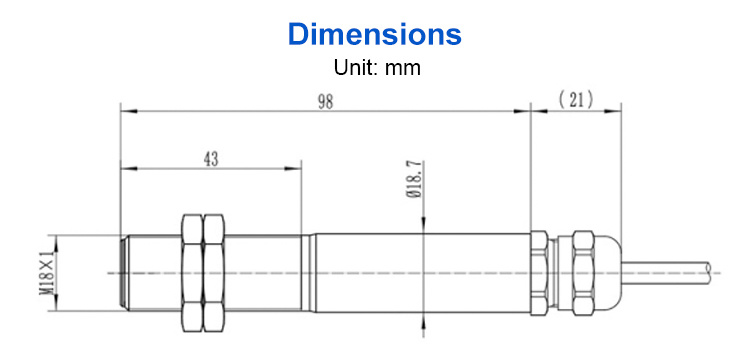

【External structure】
【Scope of application】
◇ Power equipment.
◇ Modern medical field.
◇ Food industry.
◇ Chemical industry.
◇ Construction industry.
◇ The field of machining control.
【Detail Pictures】
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor
FST600-400B Point Matrix Infrared Temperature Measurement Sensor
Product model: FST600-400B
Product features:
● Contactless measured object ● 16*4 dot matrix methods
● 4-20mA, RS485 output ● Using infrared to measure temperature
● Measuring range -20~300℃ ● Safe to use and long life
Applications:
● Metallurgy ● Medical field ● Food industry
● Petrochemical ● Electric power ● Chemical industry
● Light industry ● Textile industry ● Construction industry
● National defense ● Scientific research
