FST600-400A Online Infrared Temperature Sensor

Product model:  FST600-400A

Product features:

     ● Contactless measured object                                     ● Safe to use and long life

     ● 4-20mA, RS485 output                                               ● Using infrared to measure temperature

     ● 0~100ºC, 0~200ºC, 0~300ºC 400ºC 500ºC TO 1200 ºC



Applications:

     ● Metallurgy                        ● Medical field                     ●   Food industry

     ● Petrochemical                   ● Electric power                   ●   Chemical industry

     ● Light industry                    ●   Textile industry               ●   Construction industry

     ● National defense               ●   Scientific research

Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
FST600-400A
Quantity
-
+
Stock:
0
Introduction

Product Description

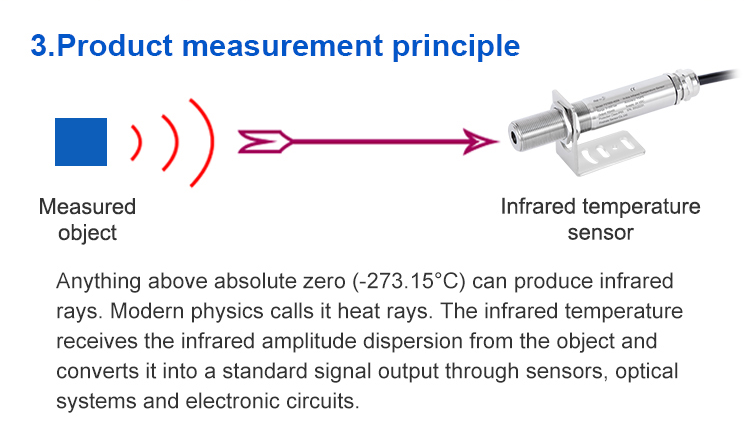

 FST600-400A Infrared Temperature Sensor measures infrared radiation energy through infrared detectors (thermal detectors and photoelectric detectors) and converts it into electrical signals, and then converts it into temperature according to the basic law of radiation, and displays the temperature signal through the display instrument , which is mainly composed of optical system, photodetector, signal amplifier and signal processing.



  FST600-400A Infrared Temperature Sensor can be used for temperature measurement in areas with high or low temperature, high voltage and high-speed machinery, and the measurer does not need to be close to these specific environments, and the product has fast response and high sensitivity. Due to the non-contact measurement, the measurement process will not change the temperature of the measured object, so the measurement results are true and reliable.







● Features


◇ No need to touch the target under test
◇ Convenient for measuring hard-to-reach or moving targets

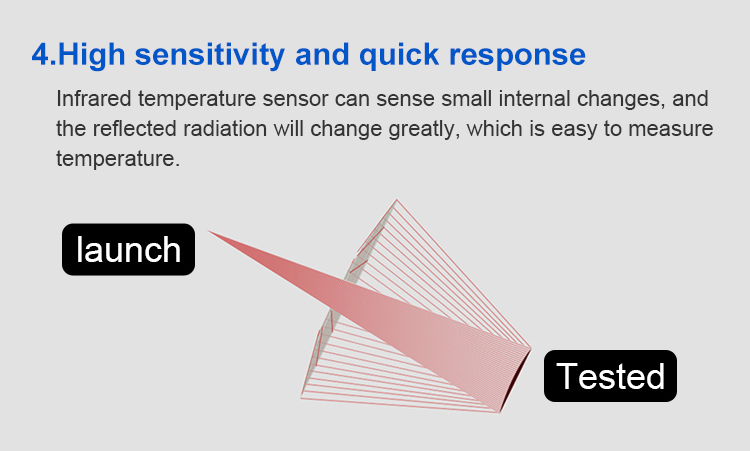

◇ Fast response and high accuracy
◇ Can meet the requirements of various working conditions
◇ Simple installation, a variety of temperature measurement range optional.




【Technical Parameters】


 Measuring range  0~100℃,200℃,300℃,400℃,500℃,600℃,700℃,800℃,900℃,1000℃,1200℃
 Temperature measurement   accuracy  ±2% of the measured value or ±2℃, whichever is greater
 Repeat accuracy  ±1% of the measured value or ±1℃, whichever is greater
 Signal output  4~20mA、RS485
 Supply voltage  10~30VDC、5~30VDC(RS485)
 Optical resolution  20:1
 Emissivity  0.95
 Response time  300 ms
 Response wavelength  8-14um
 Ambient temperature  0~60℃
 Storage temperature  -40~85℃
 Relative humidity  10~95% (no condensation)
 Shell  304 stainless steel

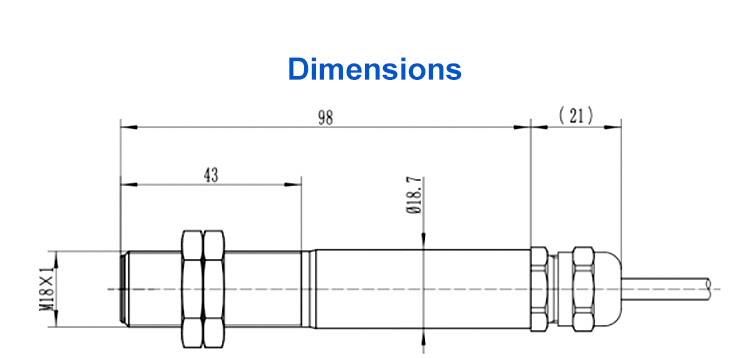

 Size  119mm×ф18.7mm (length * diameter)

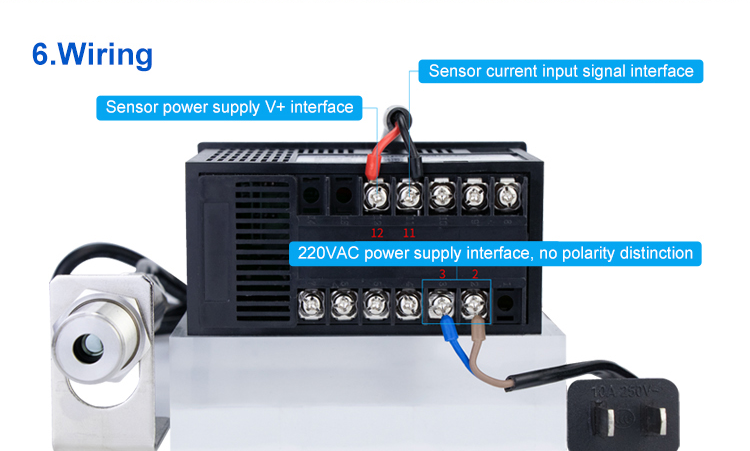

 Electrical connections  Direct out
 Protection level  IP65

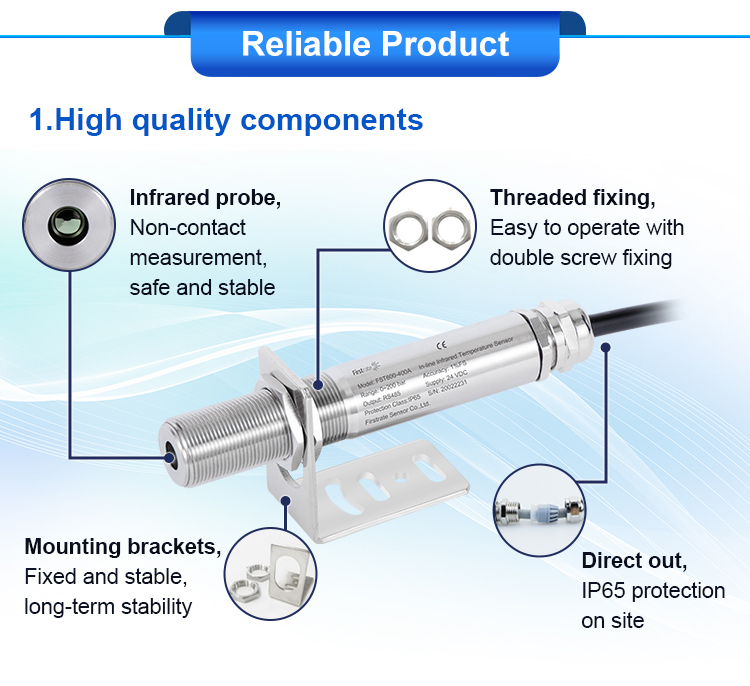

【External structure】








Detail Pictures






【Scope of application】







【Company strength】
