【Product Description】

FST600-405 infrared temperature sensor uses infrared to measure the temperature. It can calculate the surface temperature of the object through the infrared radiation intensity emitted by the target without contacting the target.

FST600-405 infrared temperature sensor is the biggest advantage of the infrared temperature sensor. There is no friction when using it. Users can easily measureinaccessible or moving targets, and the output data of the product is intuitive, true and reliable. The Firstrate Intelligent Infrared Temperature Transmitter can be debugged through the software on-site.

【 Features】

● Infrared measurement, no need to touch the measured object;
● Real-time, remote measurement, intuitive temperature measurement advantages;
● It can meet the needs of various working conditions;
● Strong and durable stainless steel shell;
● Safe to use and long service life;
● The installation is simple, and a variety of temperature measurement ranges are optional.

【Application scope】

● Power equipment;
● Food industry;
● Chemical industry;
● Construction industry;
● Modern medical field;
● Mechanical processing control field.

【Technical Parameters】

 Measuring range 0~100℃, 200℃,300℃,400℃,500℃,600℃,700℃,800℃,900℃,1000℃,1200℃

 Temperature measurement

 accuracy

 ±2% of the measured value or ±2℃, whichever is greater
 Repeat accuracy ±1% of measured value or ±1℃, whichever is greater
 Signal output 4~20mA、RS485
 Supply voltage 10~30VDC、5~30VDC(RS485)
 Optical resolution 20:1
 Firing rate 0.95
 Response time 300 ms
 Response wavelength 8-14um
 Ambient temperature 0~60℃
 Storage temperature -40~85℃
 Relative humidity 10~95% (no condensation)
 Outer shell Aluminum alloy
 Size 43mm×ф40mm (length * diameter)
 Electrical connections Direct out
 Protection level IP65

【Reliable Products】

【High -performance Sensor Probe】

【Millisecond Response Speed】

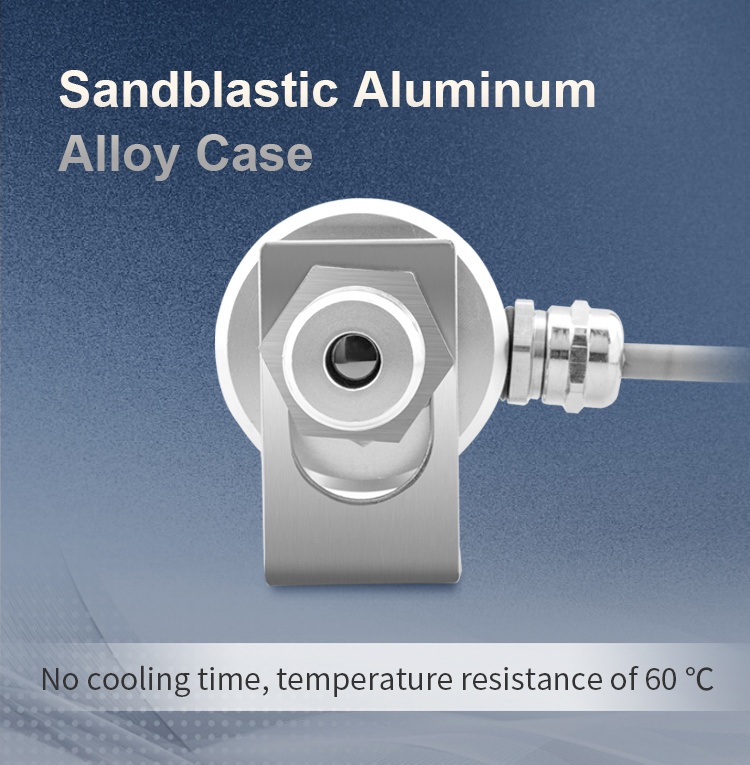

【Sandblastic Aluminum Alloy Case】

【Enhanced Anti interference Design】

【Application Scenarios】

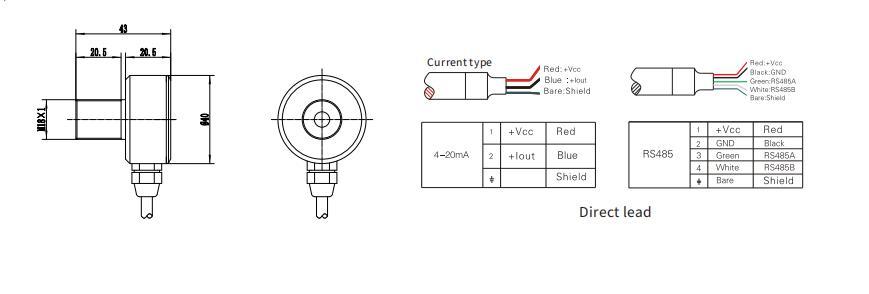

【Dimensions】

FST600-405 Compact Online Infrared Temperature Sensor


Product model:  FST600-405


Features:
● Infrared measurement, no need to touch the measured object;
● Real-time, remote measurement, intuitive temperature measurement advantages;
● It can meet the needs of various working conditions;
● Strong and durable stainless steel shell;
● Safe to use and long service life;
● The installation is simple, and a variety of temperature measurement ranges are optional.


Application scope:
● Power equipment;
● Food industry;
● Chemical industry;
● Construction industry;
● Modern medical field;
● Mechanical processing control field.
