FST600-407 Shortwave Infrared Temperature Sensor uses laser for coaxial aiming, which can conveniently indicate the center position of the measurement point, and especially mark the best measurement distance, which is suitable for the temperature of small targets that require precise point measurement. It provides two-wire 4-20mA current output, which can be easily installed in a variety of applications, especially suitable for installation in industrial environments that require long distances and strong interference.
◇ No need to touch the target to be measured
◇ Fast response and high precision
◇ Easy installation, multiple temperature measurement ranges are optional
| Supply voltage | 24V DC |
| Output signal | 4-20mA, two-wire current output, maximum load 750Ω |
| Spectral range | 1.6um/1um |
| Temperature range | 300-1400℃/600-2000℃ |
| Corresponding model | FST600-6JG-30140/FST600-6JG-60200 |
| Optical resolution | 200:01:00 |
| Response time | 10ms（95%） |
| Temperature measurement accuracy | ±1% of the measured value or ±1°C, whichever is greater |
| Repeatability | ±0.5% of the measured value or ±0.5°C, whichever is greater |

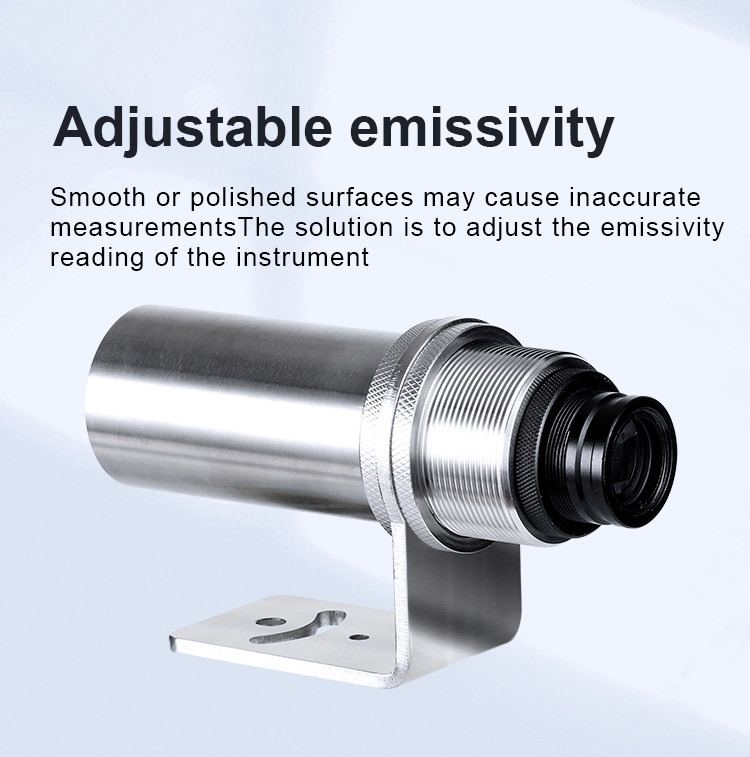

| Emissivity | 0.5-1.00 (default 0.95) |
| Aim | Laser aiming (Class 2 laser, max output power 1mW, 650nm) |

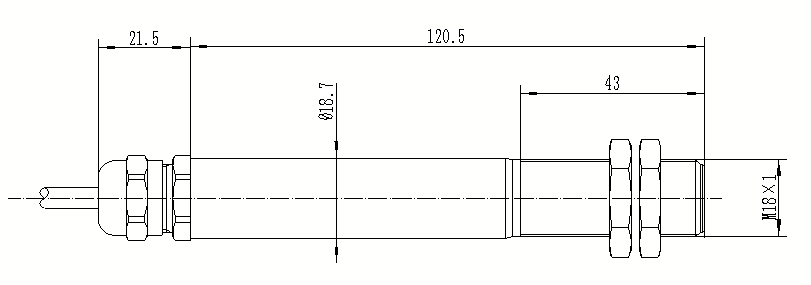

| Size | Φ45mm×150mm |
| Weight | About 300g |
| Operating temperature | -10~60℃ |
| Storage temperature | -20~80℃ |

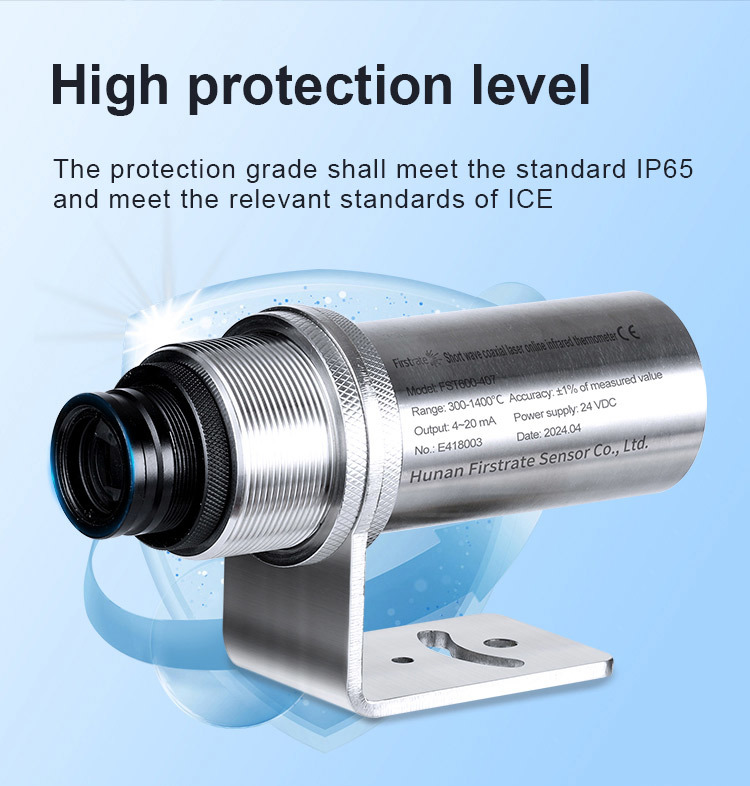

| Protection class | IP65（NEMA-4） |
Power distribution cabinets, electricity, tobacco, heating furnaces, food, rubber, paper, plastics, packaging, printing and dyeing textiles, electrical, composite materials, equipment supporting, metallurgy, petrochemical systems, various kilns, heating furnaces, railways, and packaging machinery temperature monitoring, etc.
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor
Product model: FST600-407
Product features:
● Contactless measured object ● Measure moving object
● 2-level laser coaxial aiming ● 4-20mA current output
● Safe to use and long life
Applications:
● Metallurgy ● Tobacco ● Heating furnaces
● Petrochemical ● Rubber ● Electric power
● Paper ● Plastics ● Textile industry
● Kilns ● Railway ● Omposite materials
● Packaging machinery ● Printing and dyeing textiles
