【Product description】
FST600-400 infrared temperature sensor is a device that uses infrared to measure temperature. It can calculate the surface temperature of an object by measuring the intensity of infrared radiation emitted by the target without touching the target. Products are widely used in power equipment, metallurgy, construction industry, chemical products and chemical industry and its automation control and detection systems.
【Technical Parameters】
| Measuring range | -70~380℃ |
| Temperature measurement accuracy | ±2% of measured value or ±2℃, whichever is greater |
| Repeatability | ±1% of measured value or ±1℃, whichever is greater |
| Signal output | 4~20mA、RS485 |
| Supply voltage | 10~30VDC、5~30VDC(RS485) |

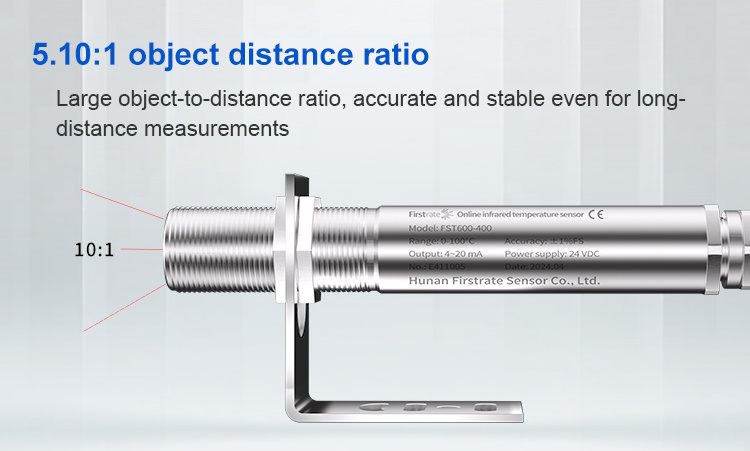

| Optical resolution | 10:01 |
| Firing rate | 1 |
| Response time | 300 ms |
| Response wavelength | 8-14um |
| Ambient temperature | -40~85℃ |
| Storage temperature | -40~85℃ |
| Relative humidity | 10~95% (no condensation) |
| Outer shell | 304 stainless steel |
| Size | 119mm×ф18.7mm (length * diameter) |
| Electrical connections | Direct out |
| Protection level | IP65 |

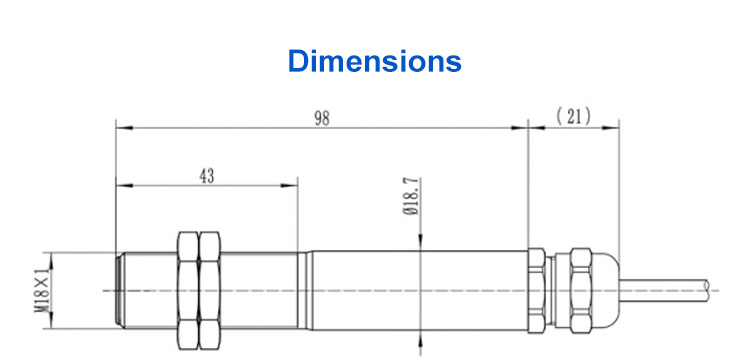

【Product size and wiring method】
【Scope of application】
♦ Power equipment, medical field
♦ Food construction industry, chemical products and chemical industry
♦ Temperature monitoring in process and production areas
♦ Metallurgy, petrochemical, electric power, light industry, textile industry, food industry, national defense and scientific research
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor
FST600-400 High-precision Online Infrared Temperature Sensor
Product model: FST600-400
Product Features:
♦ Compact structure, easy to install
♦ Infrared measurement, no need to touch the measured object
♦ Can meet various working conditions,4~20mA, RS485 output
♦ Stable output and fast response
♦ Safe to use and long life
