【Product Description】
FST800-1300 Refrigerant Pressure Transmitters produced by our company adopt all stainless steel structure, and the pressure detection sensitive components are made of ceramic materials through special process. The laser calibration process performs zero and full scale calibration over a wide temperature range, which enhances the long-term stability of the transmitter in industrial environments.
【Product Features】
● Sensitive detection devices are imported
● High-efficiency lightning protection, strong anti-RF and electromagnetic interference protection
● Advanced temperature digital compensation function, wide operating temperature range
● High precision, high frequency response, good long-term stability

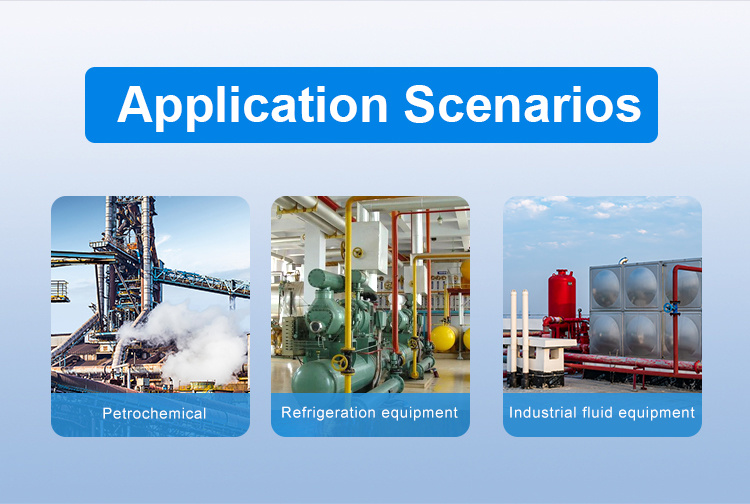

【Application Range】
● Dedicated to refrigeration and air compressors
● Air conditioning production line detection
【Technical Parameters】
| Pressure type | Gauge |
| Overload pressure | 200%FS |
| Pressure range (bar) | 10 20 30 35 45 (others can be customized on demand) |
| Destruction pressure | 300%FS |
| Signal output | 4~20mA、0~10VDC |
| Mechanical vibration | ±20g |
| Signal Line Specifications | 2Wire、3Wire |
| Shock (11ms) | 100g |
| Supply voltage | 9~30VDC、15~30VDC |
| Protection class | lP65 |
| Accuracy | ±0.5%FS、±1%FS |
| Material | 304 stainless steel material |
| Temperature compensation | -10~70℃ |
| Electrical connections | Packard Connector Direct lead |
| Long-term stability (1 year) | ±0.5%FS |
| Pressure port | 7/16-20UNF (others can be customized) |
| Operating temperature | -40~+85℃ |
| Storage temperature | -40~＋105℃ |

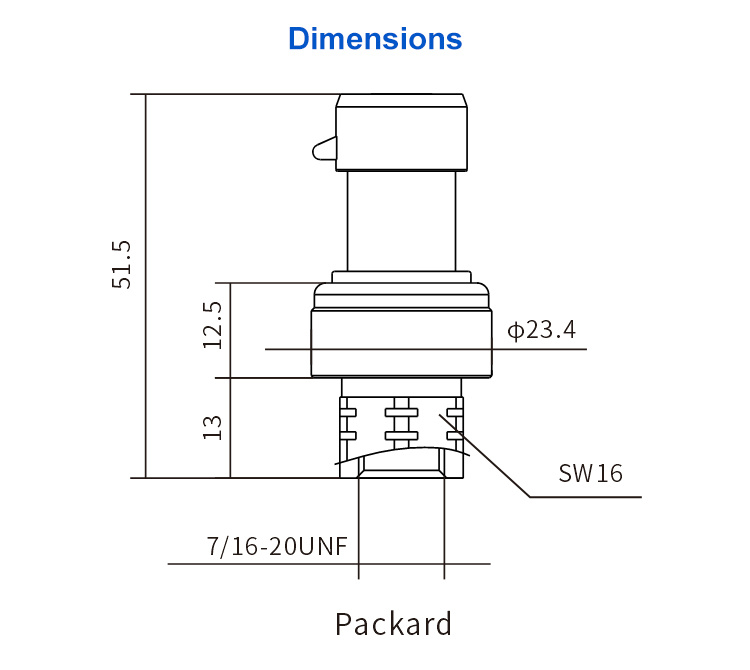

【External structure】
【Detailed description】
Keywords:Industry Sensor Manufacturers,IOT sensor Suppliers,Firstrate Sensor
FST800-1300 Refrigerant Pressure Transmitters

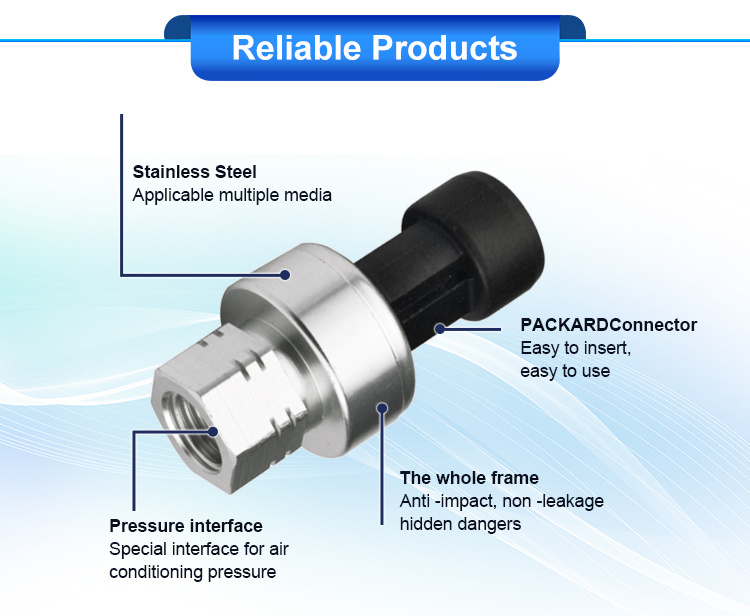

Product features:
● Ceramic core
● Integrated temperature compensation
● High-efficiency lightning protection, anti-RF
● Corrosion resistance, wear resistance
● Excellent shock, overload, & vibration resistance
Applications:
● Air compressor ● Refrigeration
● Air conditioner inspection
